Clinical Trials and FHIR: Using ResearchStudy and ResearchSubject for Real-World Evidence

The Convergence of Clinical Research and EHR Data

Pharmaceutical companies and health systems are increasingly partnering to leverage real-world data (RWD) from electronic health records for clinical research. The FDA now accepts real-world evidence (RWE) derived from EHR data for regulatory decisions, and FHIR provides the standardized API framework to make this data exchange practical.

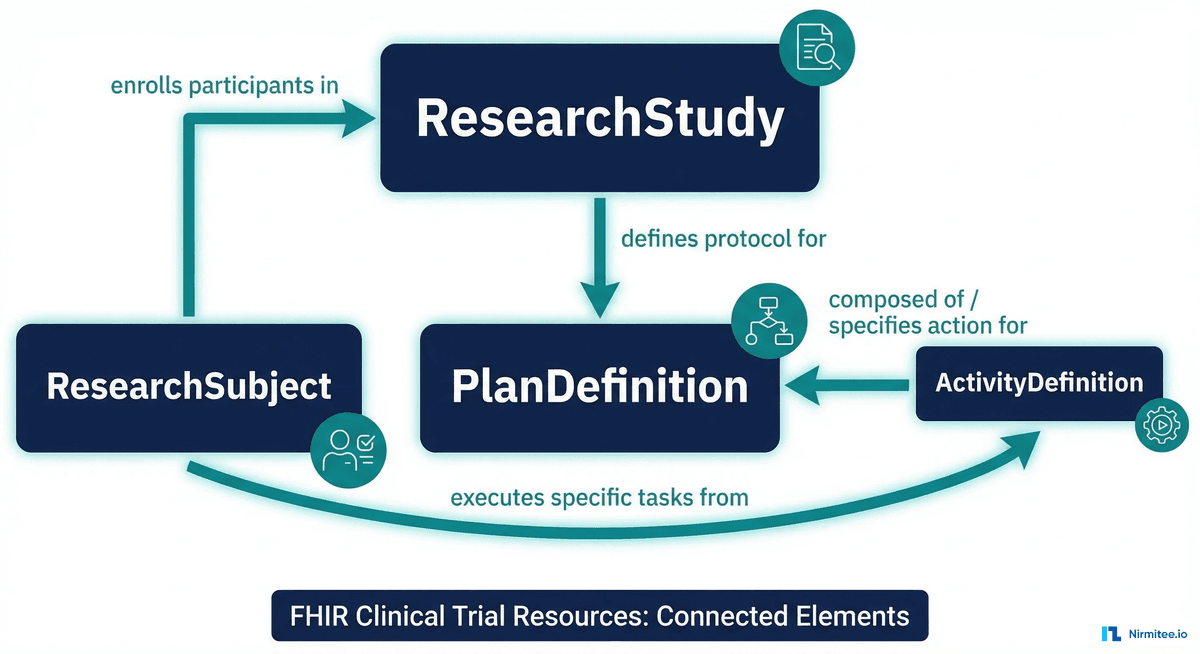

FHIR defines four core resources for clinical research: ResearchStudy (trial metadata and protocol), ResearchSubject (participant enrollment and status), PlanDefinition (study protocol as computable logic), and ActivityDefinition (individual study activities). Together, these resources create a digital representation of a clinical trial that can integrate directly with EHR systems.

Teams that want this built rather than researched can work with our FHIR integration team, or see our FHIR research data platform work and our clinical trial matching agent.

This guide covers how to model clinical trials in FHIR, extract research cohorts using Bulk Data operations, match eligible patients to trials, handle IRB requirements and de-identification, and build the data pipeline from EHR to research platform. We include working FHIR examples and architecture patterns drawn from real implementations.

FHIR Resources for Clinical Research

ResearchStudy: Trial Metadata

The ResearchStudy resource captures everything about a clinical trial except the participants: title, phase, conditions being studied, sponsor, study sites, study arms, and protocol references. It also links to ClinicalTrials.gov via the identifier element.

FHIR R4 (4.0.1) shape. In R5, ResearchSubject uses subject and progress, and ResearchStudy replaces sponsor, principalInvestigator and site with associatedParty and site/recruitment. See R4 ResearchStudy and R5 ResearchSubject. R4 does not bind a code system to arm.type, so the example uses text.

{
  "resourceType": "ResearchStudy",
  "id": "trial-diabetes-mgmt-2026",
  "identifier": [{
    "system": "https://clinicaltrials.gov",
    "value": "NCT06789012"
  }],
  "title": "Continuous Glucose Monitoring Impact on HbA1c in Type 2 Diabetes",
  "status": "active",
  "phase": {
    "coding": [{
      "system": "http://terminology.hl7.org/CodeSystem/research-study-phase",
      "code": "phase-3",
      "display": "Phase 3"
    }]
  },
  "category": [{
    "text": "Interventional"
  }],
  "condition": [{
    "coding": [{
      "system": "http://snomed.info/sct",
      "code": "44054006",
      "display": "Type 2 diabetes mellitus"
    }]
  }],
  "enrollment": [{
    "reference": "Group/eligible-patients-cgm-trial"
  }],
  "period": {
    "start": "2026-01-01",
    "end": "2028-06-30"
  },
  "sponsor": {
    "reference": "Organization/pharma-corp"
  },
  "principalInvestigator": {
    "reference": "Practitioner/dr-research-lead"
  },
  "site": [{
    "reference": "Location/metro-hospital-research-center"
  }],
  "arm": [
    {
      "name": "CGM Intervention",
      "type": {
        "text": "Experimental"
      },
      "description": "Continuous glucose monitoring with real-time alerts"
    },
    {
      "name": "Standard Care",
      "type": {
        "text": "Active comparator"
      },
      "description": "Standard fingerstick glucose monitoring"
    }
  ]
}

The enrollment element references a Group resource that defines the eligible patient population. The arm element describes the study arms—critical for randomized controlled trials. Linking to ClinicalTrials.gov via the identifier lets you match your FHIR record to the registry entry. ClinicalTrials.gov does not accept FHIR ResearchStudy, so this is a mapping you maintain, not an automatic sync (see the ClinicalTrials.gov section below).

ResearchSubject: Participant Enrollment

The ResearchSubject resource tracks an individual patient's participation in a study. It links the patient to the study, records their assigned arm, and tracks their enrollment status through the study lifecycle.

FHIR R4 (4.0.1) shape. In R5, ResearchSubject uses subject and progress in place of individual, assignedArm and actualArm.

{
  "resourceType": "ResearchSubject",
  "id": "subject-patient-456",
  "status": "on-study",
  "study": {
    "reference": "ResearchStudy/trial-diabetes-mgmt-2026"
  },
  "individual": {
    "reference": "Patient/patient-456"
  },
  "assignedArm": "CGM Intervention",
  "actualArm": "CGM Intervention",
  "period": {
    "start": "2026-02-15"
  },
  "consent": {
    "reference": "Consent/research-consent-patient-456"
  }
}

The status field tracks the participant through enrollment states: candidate, eligible, follow-up, on-study, on-study-intervention, on-study-observation, withdrawn, and off-study. The consent reference links to a FHIR Consent resource capturing the patient's research consent—connecting directly to the consent management patterns covered in our previous guide.

PlanDefinition and ActivityDefinition: Computable Protocols

The PlanDefinition resource represents the study protocol as machine-readable logic. It defines inclusion and exclusion criteria, study activities, timing, and decision points. The ActivityDefinition resource defines individual activities within the protocol—lab tests, questionnaires, drug administrations, follow-up visits.

Extracting Research Cohorts with FHIR Bulk Data

One of the most powerful applications of FHIR in clinical research is cohort extraction. Instead of manually querying the EHR database, researchers can use the FHIR Bulk Data $export operation to extract patient populations that match study criteria.

Cohort Identification Workflow

1. Define eligibility criteria in a PlanDefinition with structured inclusion/exclusion rules.
2. Query the FHIR server for patients matching the criteria using search parameters.
3. Create a Group resource containing the matched patient references.
4. Run Bulk Data Export on the Group to extract all relevant clinical data.
5. De-identify the exported data before making it available to the research team.

# Step 1: Search for eligible patients (Type 2 DM, HbA1c 7.0-10.0%)
GET /Patient?_has:Condition:patient:code=44054006
    &_has:Observation:patient:code=4548-4
    &_has:Observation:patient:value-quantity=gt7.0|%
    &_has:Observation:patient:value-quantity=lt10.0|%
    &birthdate=le2008-01-01&birthdate=ge1951-01-01

# Step 2: Create Group from matched patients
POST /Group
{
  "resourceType": "Group",
  "type": "person",
  "actual": true,
  "name": "CGM Trial Eligible Cohort - March 2026",
  "member": [
    {"entity": {"reference": "Patient/patient-101"}},
    {"entity": {"reference": "Patient/patient-102"}},
    {"entity": {"reference": "Patient/patient-103"}}
  ]
}

# Step 3: Bulk export the cohort data
GET /Group/cgm-trial-cohort/$export
    ?_type=Patient,Condition,Observation,MedicationRequest,Procedure
    &_since=2024-01-01
Accept: application/fhir+json
Prefer: respond-async

This approach leverages the same FHIR infrastructure used for healthcare interoperability, reducing the need to build separate research data extraction pipelines.

Real-World Evidence from EHR Data

Real-world evidence (RWE) uses data collected during routine clinical care—rather than in controlled trial settings—to generate evidence about treatment effectiveness, safety, and outcomes. FHIR makes RWE generation practical by providing standardized access to the underlying data.

RWE Data Sources

Challenges in RWE Generation

While FHIR standardizes data access, several challenges remain in generating credible real-world evidence:

• Data completeness: EHR data reflects what clinicians documented, not necessarily what happened. Missing data—especially for patients who seek care at multiple institutions—creates gaps that can bias results.
• Coding variability: Different clinicians and institutions code the same condition differently. SNOMED CT, ICD-10, and local codes may all represent the same diagnosis with varying specificity.
• Confounding variables: Unlike randomized trials, RWE studies cannot control for confounders. Propensity score matching and other statistical methods are required to draw valid conclusions.
• Temporal accuracy: The effectiveDateTime on an Observation may reflect when data was entered, not when the measurement was taken. Build validation checks for temporal consistency.

IRB Requirements and De-Identification

Research access to EHR data runs through one of several HIPAA pathways: individual authorization, an IRB or privacy board waiver, a limited data set with a data use agreement, or de-identified data (see HHS guidance on research under HIPAA). Whether the Common Rule applies, and whether IRB review is needed, is an institutional determination. FHIR-based research data pipelines must build in these controls from the start. The IRB reviews the research protocol, data access controls, de-identification methodology, and informed consent process before any patient data can be accessed for research purposes. For prospective studies where patients are actively enrolled, a full informed consent process is required—captured as a FHIR Consent resource with scope: research. For retrospective studies using only de-identified data, the IRB may grant a waiver of informed consent under 45 CFR 46.116(f) (revised Common Rule, in effect since 2019). The HIPAA waiver of authorization has its own criteria, at 45 CFR 164.512(i). In either case the de-identification process itself must be documented and validated.

Many academic medical centers now maintain a Research Data Warehouse (RDW) that receives nightly de-identified extracts from the clinical FHIR server. Researchers submit study protocols to the IRB, and upon approval, receive access to the relevant subset of the RDW. This model separates clinical operations from research access, reducing the risk of inadvertent PHI exposure while maintaining data freshness for time-sensitive studies.

HIPAA De-Identification Methods

HIPAA provides two methods for de-identification:

• Safe Harbor (45 CFR 164.514(b)(2)): Remove 18 specified identifiers including names, dates (except year), geographic data smaller than state, phone numbers, SSN, MRN, and all other unique identifiers. All elements of dates except year must be removed for every patient. Ages over 89, and dates that reveal such an age, must be aggregated into a single 90-or-older category.
• Expert Determination (45 CFR 164.514(b)(1)): A qualified statistical expert certifies that the risk of re-identification is very small. This method allows retaining more data elements (exact dates, partial zip codes) when the expert can demonstrate low re-identification risk.

When building a FHIR-based de-identification pipeline, apply transformations at the resource level: strip Patient.name, Patient.address, Patient.telecom, generalize Patient.birthDate to year for every patient (and replace it with a 90-or-older category when the age is over 89), replace Patient.id with a research-specific pseudonym, and remove all references to other patients in RelatedPerson resources.

Building the Research Data Pipeline

A production research data pipeline connects the EHR's FHIR API to a research data platform through several stages. The first stage is cohort identification—querying the FHIR server for patients matching study criteria. The second stage is data extraction via Bulk Data Export, pulling all relevant resource types for the identified cohort. The third stage is de-identification, applying HIPAA Safe Harbor or Expert Determination rules to strip protected health information. The fourth stage is data quality validation—checking for completeness, coding consistency, and temporal accuracy. The fifth stage is loading the de-identified data into the research data warehouse in a format suitable for statistical analysis.

Each stage must be auditable. The research data pipeline should generate provenance records (FHIR Provenance resources) documenting what data was extracted, when, by whom, under what IRB protocol, and what transformations were applied. This audit trail is essential for regulatory submissions—the FDA expects organizations to demonstrate data lineage from source EHR to final analysis dataset. Organizations already building healthcare integration platforms can extend their existing FHIR infrastructure to support research use cases, rather than building separate research data systems from scratch.

Checks before a cohort leaves the pipeline

Run these five checks on every export before the research team receives it. Each one has an owner.

Test it: an integration test asserts that each NDJSON export comes with a matching Provenance entry, and fails the run when one is missing.

ClinicalTrials.gov Integration

The FHIR ResearchStudy resource maps naturally to ClinicalTrials.gov registry entries. ClinicalTrials.gov does not accept FHIR ResearchStudy. Its public API (v2, JSON) returns study records you can map into ResearchStudy; registration and updates still go through the Protocol Registration and Results System (PRS). By maintaining study metadata in FHIR format, organizations can keep one internal record and copy changes into PRS.

Mapping ClinicalTrials.gov API v2 fields to ResearchStudy (R4)

Patient-Trial Matching

One of the most impactful applications of FHIR in clinical research is automated patient-trial matching. Today, only a small share of adult cancer patients take part in clinical trials, often because physicians are unaware of available trials for their patients. Automated matching changes this by continuously screening the EHR patient population against active trial eligibility criteria and surfacing matches during clinical encounters. The matching system queries active ResearchStudy resources, retrieves the associated PlanDefinition with inclusion/exclusion criteria, and evaluates each patient's clinical data against those criteria in real time.

# Patient-Trial Matching Service (Python pseudocode)

def match_patient_to_trials(patient_id):
    """Find eligible trials for a patient based on their clinical data."""

    # 1. Gather patient clinical profile
    conditions = fhir_search('Condition', {'patient': patient_id, 'clinical-status': 'active'})
    labs = fhir_search('Observation', {'patient': patient_id, 'category': 'laboratory', '_sort': '-date', '_count': 50})
    meds = fhir_search('MedicationRequest', {'patient': patient_id, 'status': 'active'})
    patient = fhir_read('Patient', patient_id)

    # 2. Query active trials matching patient conditions
    patient_conditions = [c.code.coding[0].code for c in conditions]
    trials = fhir_search('ResearchStudy', {'status': 'active', 'condition': ','.join(patient_conditions)})

    # 3. Evaluate eligibility criteria for each trial
    matches = []
    for trial in trials:
        plan = get_plan_definition(trial)
        if evaluate_inclusion_criteria(plan, patient, conditions, labs, meds):
            if not evaluate_exclusion_criteria(plan, patient, conditions, labs, meds):
                matches.append({
                    'trial': trial,
                    'match_score': calculate_match_score(plan, patient)
                })

    return sorted(matches, key=lambda m: m['match_score'], reverse=True)

This type of clinical decision support may increase trial enrollment. Measure it: count patients screened, referred, consented and enrolled before and after go-live. Integrating trial matching into the EHR workflow—as a CDS Hooks service or SMART on FHIR app—ensures that clinicians see relevant trials at the point of care, not in a separate research portal they rarely visit. The matching service should rank results by match confidence, highlight which criteria the patient satisfies, and flag any exclusion criteria that are close to being triggered, giving the clinician actionable context for discussing trial participation with the patient.

Regulatory Landscape for FHIR-Based Research

The FDA's 2018 Framework for Real-World Evidence established that RWE can support regulatory decisions, including new indications for approved drugs. Since then, the FDA has issued multiple guidance documents on using electronic health record data for clinical evidence generation. The 21st Century Cures Act further accelerated this by mandating interoperable health data exchange—with FHIR as the designated standard. For organizations building FHIR-based research capabilities, this regulatory alignment means that investments in FHIR infrastructure serve both clinical operations and research needs. A single FHIR API can support patient care, payer data exchange, quality reporting, and clinical research—maximizing the return on infrastructure investment.

Frequently Asked Questions

What FHIR resources are used for clinical trials?

The four core resources are ResearchStudy (trial metadata), ResearchSubject (participant enrollment), PlanDefinition (study protocol), and ActivityDefinition (study activities). Supporting resources include Group (eligible cohorts), Consent (research consent), and standard clinical resources like Condition, Observation, and MedicationRequest for outcome data.

How does FHIR Bulk Data help clinical research?

FHIR Bulk Data Export ($export) enables researchers to extract large patient cohorts from EHR systems in standardized NDJSON format. Researchers define a Group of eligible patients and export all relevant clinical data types in a single asynchronous operation, replacing manual chart review or custom database queries.

What is real-world evidence in the context of FHIR?

Real-world evidence (RWE) is clinical evidence derived from data collected during routine patient care rather than controlled trials. FHIR provides standardized access to EHR data, making it practical to extract, de-identify, and analyze real-world data at scale. The FDA accepts RWE for post-market safety monitoring, label expansion studies, and certain regulatory submissions.

Is IRB approval required for FHIR-based research?

It depends on the pathway. Research access to EHR data runs through one of several HIPAA pathways: individual authorization, an IRB or privacy board waiver, a limited data set with a data use agreement, or de-identified data (see HHS guidance on research under HIPAA). Whether the Common Rule applies, and whether IRB review is needed, is an institutional determination. Where an IRB is involved, The IRB evaluates the de-identification methodology, data security controls, and research protocol. Some IRBs offer expedited review for studies using only de-identified FHIR Bulk Data exports, but approval is still required.

How do you de-identify FHIR resources for research?

Apply HIPAA Safe Harbor by removing 18 specified identifiers from Patient and RelatedPerson resources, removing all elements of dates except year for every patient, aggregating ages over 89 into a 90-or-older category, replacing identifiers with research pseudonyms, and stripping geographic data below state level. Expert Determination allows retaining more detail if a qualified statistician certifies low re-identification risk.
