FHIR CapabilityStatement Explained: How to Read What an EHR's API Can Actually Do

Every FHIR Server Tells You What It Can Do — If You Know Where to Look

You're building a healthcare integration. You've got a FHIR server URL from your EHR vendor. Now what? Do you start guessing which resources are supported? Trial-and-error your way through search parameters? Hope the documentation is up to date?

There's a better way. Every conformant FHIR server exposes a single endpoint — GET /metadata — that returns a machine-readable document describing exactly what that server can do. It's called the CapabilityStatement (known as Conformance in FHIR DSTU2), and it's the single most underused tool in the FHIR developer's toolkit.

According to the ONC's 2024 Interoperability Report, over 96% of hospitals now offer FHIR APIs. Yet integration teams routinely spend weeks discovering API capabilities through manual testing — capabilities that were machine-readable all along. This guide will teach you to read CapabilityStatements like a native speaker, compare vendor implementations programmatically, and build automated compatibility checkers that save your team hundreds of hours.

What Is a CapabilityStatement?

A CapabilityStatement is a FHIR resource (type CapabilityStatement) that documents the functionality of a FHIR server. Think of it as the API's self-description — a contract between the server and any client that connects to it.

Every FHIR server MUST support the capabilities interaction, which means responding to GET [base]/metadata with a CapabilityStatement resource. This is defined in the FHIR specification's RESTful API section.

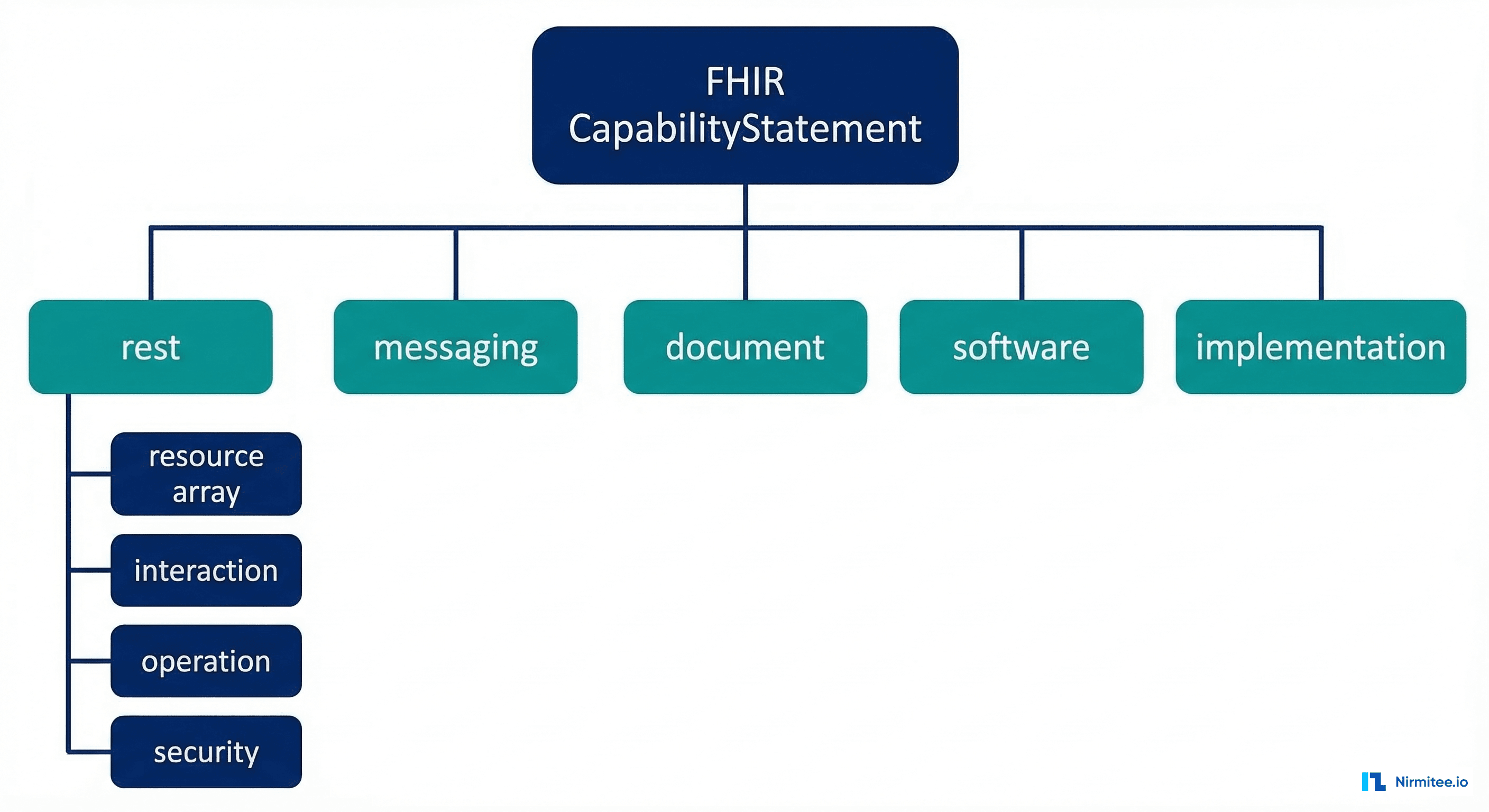

The Top-Level Structure

A CapabilityStatement contains these key sections:

{
  "resourceType": "CapabilityStatement",
  "status": "active",
  "date": "2026-01-15",
  "publisher": "Example Health System",
  "kind": "instance",
  "fhirVersion": "4.0.1",
  "format": ["json", "xml"],
  "rest": [
    {
      "mode": "server",
      "security": { ... },
      "resource": [ ... ],
      "interaction": [ ... ],
      "operation": [ ... ]
    }
  ]
}

The critical fields at the top level include:

Field	Purpose	Why It Matters
fhirVersion	FHIR spec version (e.g., 4.0.1)	Determines which resources and features are available
format	Supported serialization formats	Most servers support JSON; some also support XML
kind	"instance" for live servers, "capability" for abstract	Only "instance" describes a real, running server
rest	Array of REST endpoint configurations	Contains everything about resources, search, and auth
implementationGuide	IGs the server conforms to	Tells you if US Core, SMART, Bulk Data are supported

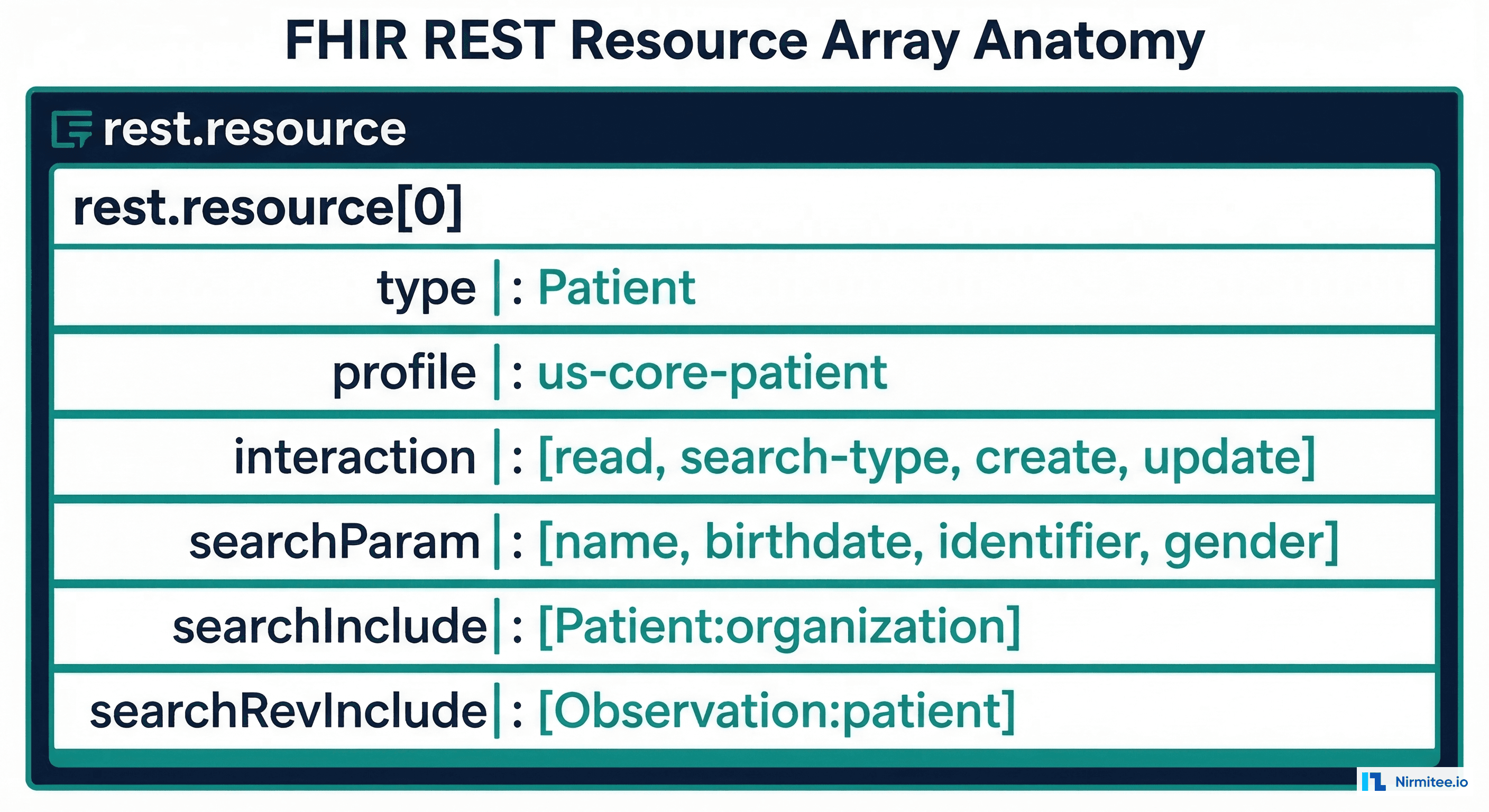

Dissecting the rest.resource Array

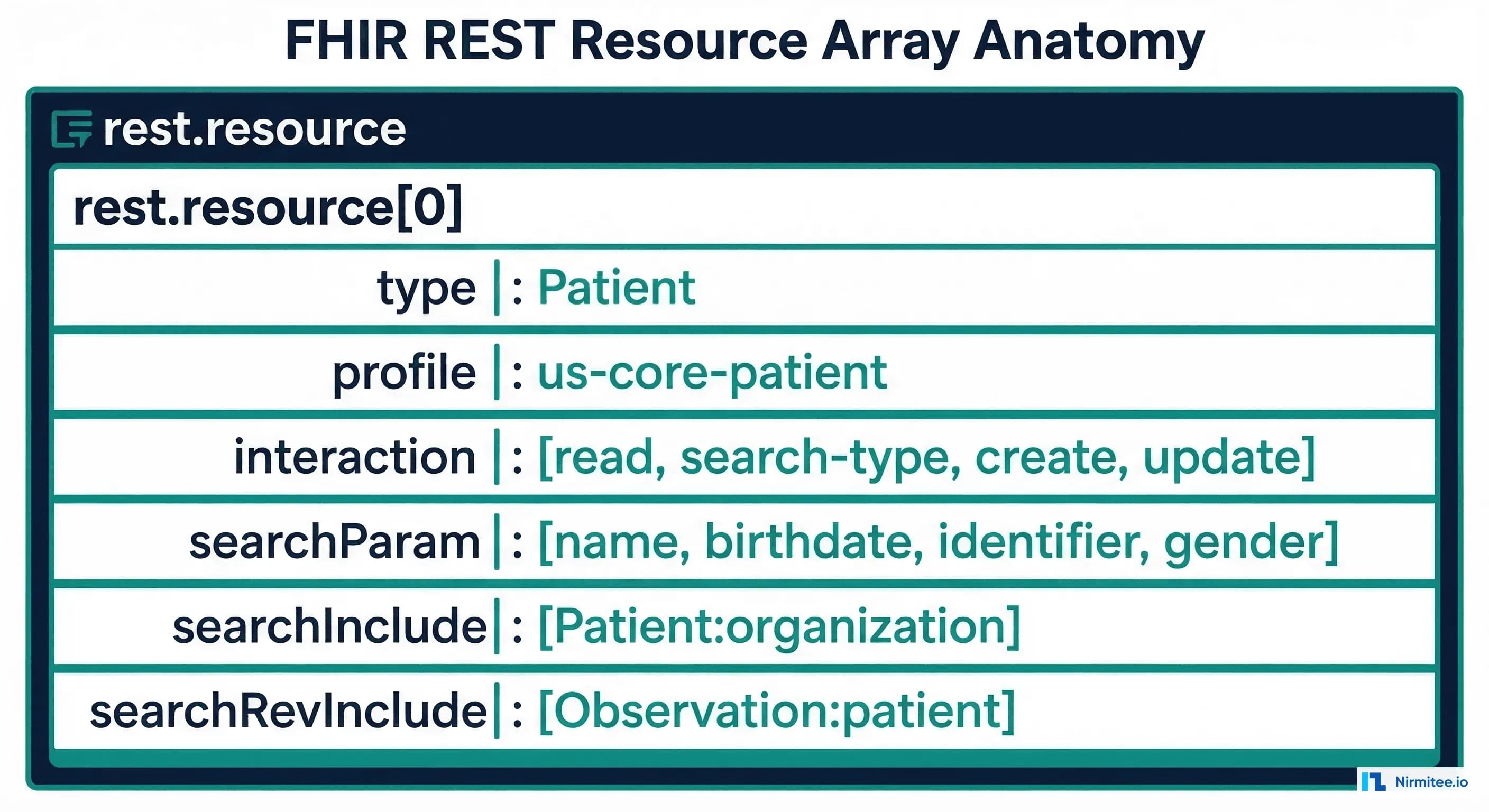

The rest[0].resource array is where the real value lives. Each entry describes one FHIR resource type and everything the server supports for it.

A Real Resource Entry

Here's what a typical Patient resource entry looks like in a production CapabilityStatement:

{
  "type": "Patient",
  "supportedProfile": [
    "http://hl7.org/fhir/us/core/StructureDefinition/us-core-patient"
  ],
  "interaction": [
    { "code": "read" },
    { "code": "search-type" },
    { "code": "vread" }
  ],
  "searchParam": [
    {
      "name": "family",
      "type": "string",
      "documentation": "A portion of the family name"
    },
    {
      "name": "given",
      "type": "string"
    },
    {
      "name": "birthdate",
      "type": "date"
    },
    {
      "name": "identifier",
      "type": "token"
    },
    {
      "name": "_id",
      "type": "token"
    },
    {
      "name": "gender",
      "type": "token"
    }
  ],
  "searchInclude": ["Patient:general-practitioner"],
  "searchRevInclude": ["Observation:patient", "Condition:patient"]
}

Key Fields in Each Resource Entry

Field	What It Tells You	Example
type	The FHIR resource name	"Patient", "Observation", "Encounter"
supportedProfile	Which profiles (like US Core) are supported	US Core Patient, US Core AllergyIntolerance
interaction	Which CRUD operations work	read, search-type, create, update, delete
searchParam	Which search parameters you can query	name, birthdate, identifier, _lastUpdated
searchInclude	Which _include parameters work	Patient:organization, MedicationRequest:medication
searchRevInclude	Which _revinclude parameters work	Observation:patient, Condition:subject
operation	Custom operations for this resource	$everything, $validate, $match

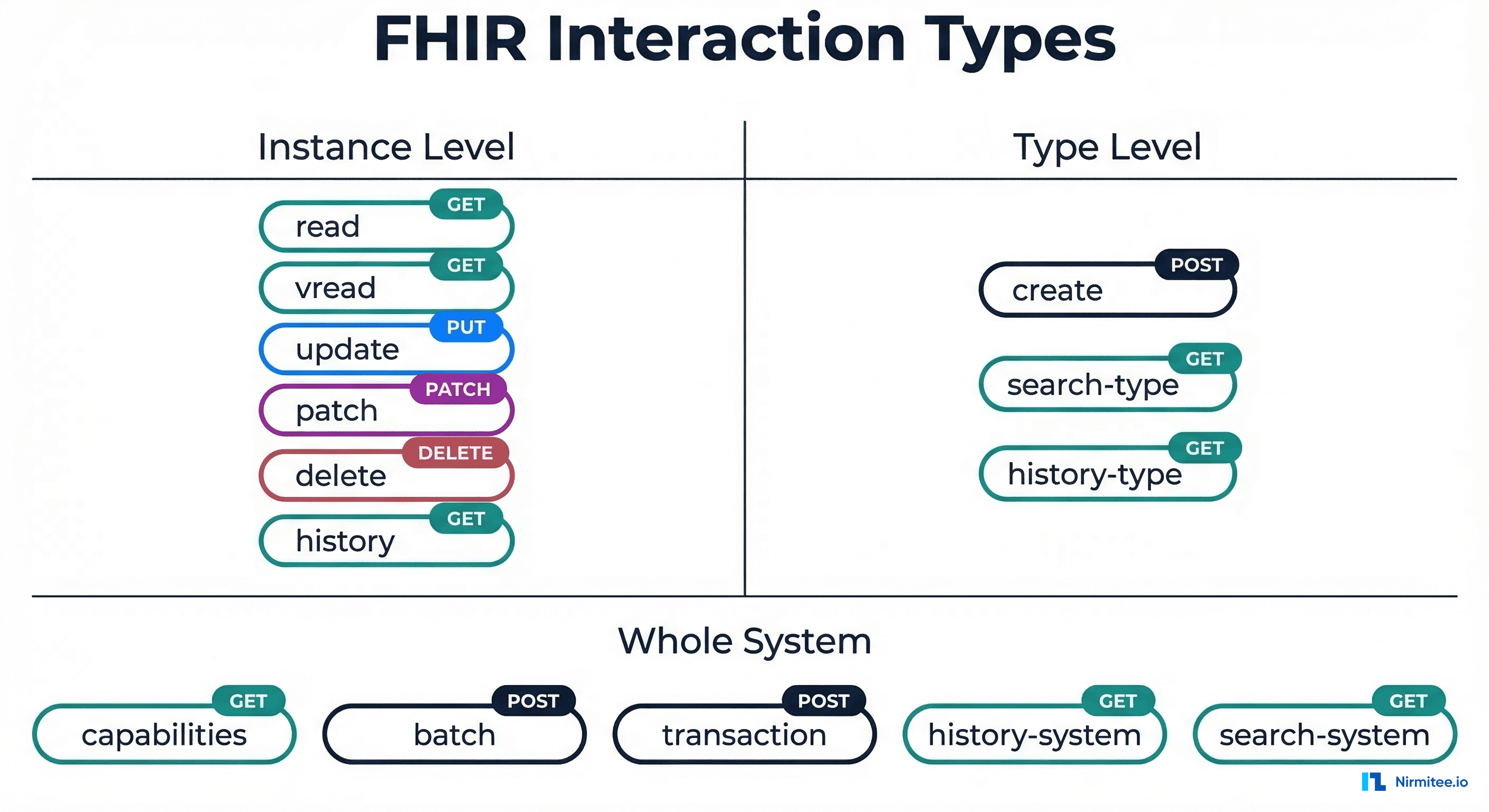

Understanding Interaction Types

FHIR defines interactions at three levels, and the CapabilityStatement documents which ones a server supports.

Instance-Level Interactions

These operate on a specific resource instance (identified by ID):

• read — GET [base]/Patient/123 — Retrieve a single resource
• vread — GET [base]/Patient/123/_history/2 — Retrieve a specific version
• update — PUT [base]/Patient/123 — Replace an existing resource
• patch — PATCH [base]/Patient/123 — Partially modify a resource
• delete — DELETE [base]/Patient/123 — Remove a resource
• history-instance — GET [base]/Patient/123/_history — Version history

Type-Level Interactions

These operate on a resource type (not a specific instance):

• create — POST [base]/Patient — Create a new resource
• search-type — GET [base]/Patient?name=Smith — Search within a type
• history-type — GET [base]/Patient/_history — History of all instances

Whole-System Interactions

Documented at rest[0].interaction (not inside a resource entry):

• transaction — POST [base] with Bundle — Atomic multi-resource operations
• batch — POST [base] with Bundle — Non-atomic batch processing
• search-system — GET [base]?_type=Patient,Observation — Cross-type search
• history-system — GET [base]/_history — History across all types

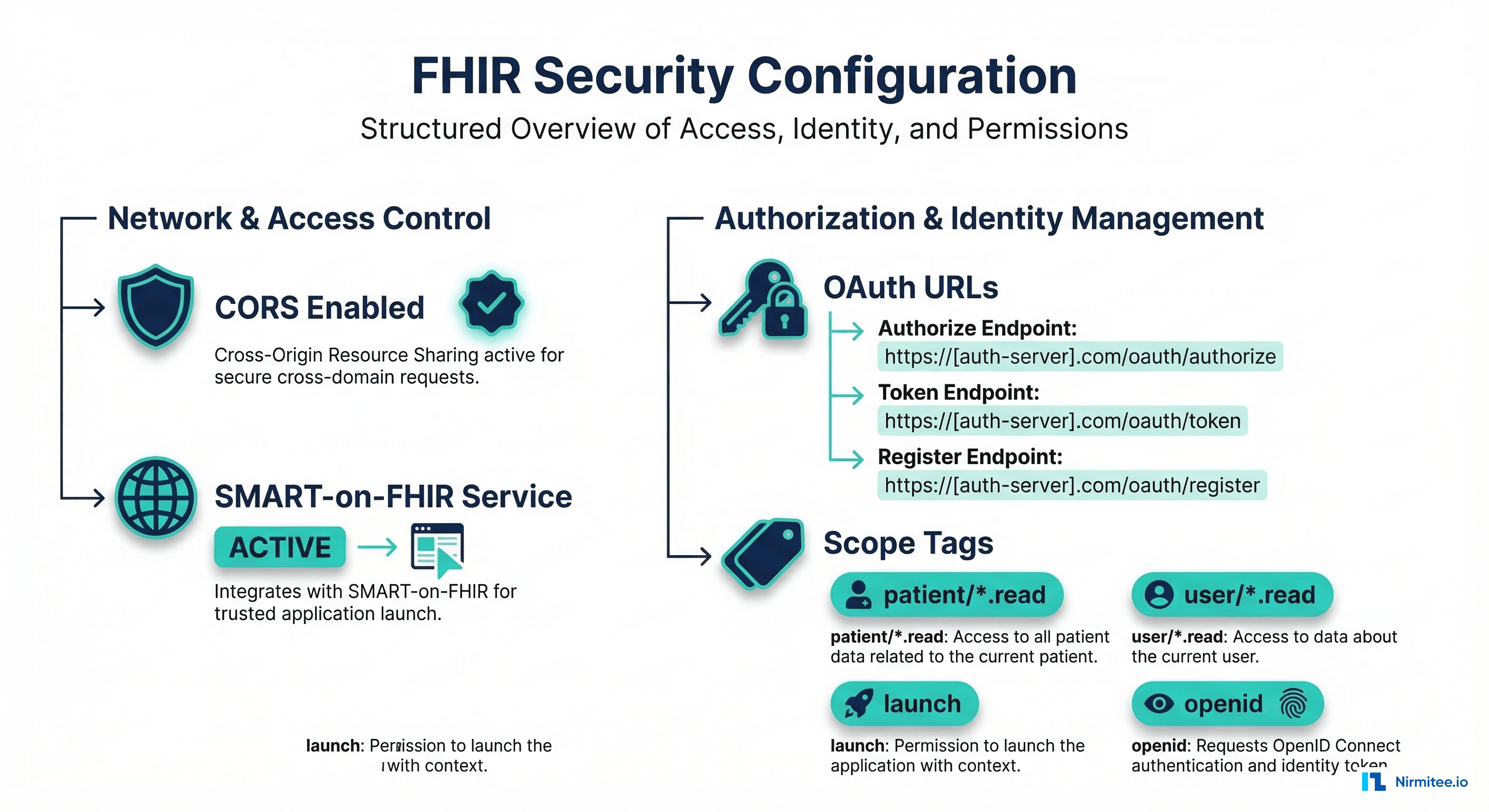

Reading the Security Section

The rest[0].security section is critical for understanding authentication requirements before you write a single line of integration code. For FHIR servers implementing SMART on FHIR, this section contains the OAuth 2.0 endpoint URLs.

{
  "security": {
    "cors": true,
    "service": [
      {
        "coding": [
          {
            "system": "http://terminology.hl7.org/CodeSystem/restful-security-service",
            "code": "SMART-on-FHIR"
          }
        ]
      }
    ],
    "extension": [
      {
        "url": "http://fhir-registry.smarthealthit.org/StructureDefinition/oauth-uris",
        "extension": [
          {
            "url": "authorize",
            "valueUri": "https://ehr.example.com/auth/authorize"
          },
          {
            "url": "token",
            "valueUri": "https://ehr.example.com/auth/token"
          },
          {
            "url": "register",
            "valueUri": "https://ehr.example.com/auth/register"
          }
        ]
      }
    ]
  }
}

Extracting the OAuth URLs from this nested extension structure is one of the most common tasks when integrating with EHR FHIR APIs. The SMART on FHIR specification also defines a .well-known/smart-configuration endpoint that provides a simpler JSON format for the same information — but the CapabilityStatement is the canonical source defined by the base FHIR specification.

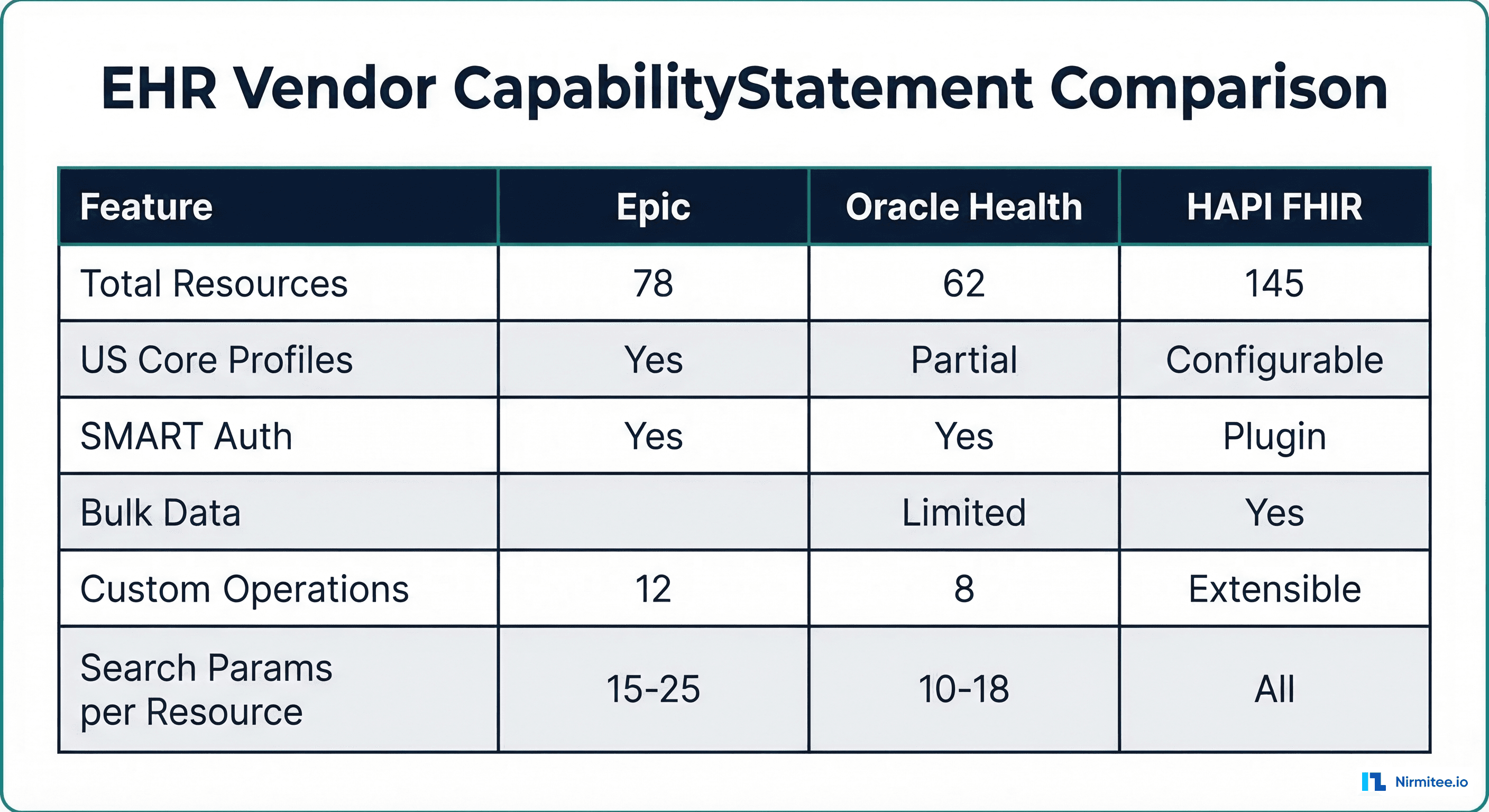

Comparing EHR CapabilityStatements: Epic vs. Oracle Health vs. HAPI

Not all CapabilityStatements are created equal. The differences between major EHR vendors reveal important architectural decisions that affect your integration strategy.

Capability	Epic (Aug 2025)	Oracle Health (Cerner)	HAPI FHIR (Open Source)
FHIR Version	R4 (4.0.1)	R4 (4.0.1)	R4, R5, R6 (configurable)
Resource Types	~78	~62	All ~150+ (configurable)
US Core Profiles	Full conformance	Full conformance	Optional via IG loader
SMART on FHIR	v1 and v2	v1 and v2	Via interceptor plugin
Bulk Data Export	$export (Group, System)	$export (limited)	Full $export support
Custom Operations	$everything, $docref, $match	$everything, $autogen-ccd	All extensible via Java
Search Chaining	Limited (_has, _include)	Some support	Full chaining and _filter
Versioned Reads (vread)	Yes	Yes	Yes
Patch Support	JSON Patch	JSON Patch	JSON Patch, FHIRPath Patch

What These Differences Mean in Practice

If your app relies on _revinclude to fetch a patient's observations in a single query, you need to verify that the target EHR supports it. Epic's CapabilityStatement might list searchRevInclude for some resources but not others. Oracle Health may not support it at all for certain resource types. These are the details that turn a working prototype into a production failure — and they're all discoverable from the CapabilityStatement.

For teams building multi-vendor FHIR applications, we've covered the broader strategy in our guide on FHIR implementation guides and US Core conformance.

Building a CapabilityStatement Parser in Python

Let's build a practical tool that fetches a server's CapabilityStatement and generates a human-readable capability report. This is the kind of automation that saves integration teams days of manual API exploration.

#!/usr/bin/env python3
"""FHIR CapabilityStatement Analyzer"""
import requests
import json
import sys
from collections import defaultdict

class CapabilityAnalyzer:
    def __init__(self, base_url):
        self.base_url = base_url.rstrip('/')
        self.capability = None

    def fetch(self):
        """Fetch the CapabilityStatement from /metadata."""
        url = f"{self.base_url}/metadata"
        headers = {"Accept": "application/fhir+json"}
        resp = requests.get(url, headers=headers, timeout=30)
        resp.raise_for_status()
        self.capability = resp.json()
        return self.capability

    def get_server_info(self):
        """Extract top-level server information."""
        cap = self.capability
        return {
            "fhir_version": cap.get("fhirVersion", "unknown"),
            "publisher": cap.get("publisher", "unknown"),
            "status": cap.get("status", "unknown"),
            "date": cap.get("date", "unknown"),
            "software": cap.get("software", {}).get("name", "unknown"),
            "formats": cap.get("format", []),
        }

    def get_resources(self):
        """Extract all supported resource types with capabilities."""
        resources = {}
        rest = self.capability.get("rest", [{}])[0]
        for res in rest.get("resource", []):
            rtype = res.get("type")
            resources[rtype] = {
                "interactions": [i["code"] for i in res.get("interaction", [])],
                "search_params": [
                    {"name": sp["name"], "type": sp.get("type", "unknown")}
                    for sp in res.get("searchParam", [])
                ],
                "profiles": res.get("supportedProfile", []),
                "includes": res.get("searchInclude", []),
                "rev_includes": res.get("searchRevInclude", []),
                "operations": [
                    op.get("name") for op in res.get("operation", [])
                ],
            }
        return resources

    def get_security_info(self):
        """Extract SMART on FHIR OAuth endpoints."""
        rest = self.capability.get("rest", [{}])[0]
        security = rest.get("security", {})
        oauth_urls = {}
        for ext in security.get("extension", []):
            if "oauth-uris" in ext.get("url", ""):
                for sub_ext in ext.get("extension", []):
                    oauth_urls[sub_ext["url"]] = sub_ext.get("valueUri", "")
        services = []
        for svc in security.get("service", []):
            for coding in svc.get("coding", []):
                services.append(coding.get("code", ""))
        return {
            "cors": security.get("cors", False),
            "services": services,
            "oauth_urls": oauth_urls,
        }

    def generate_report(self):
        """Generate a human-readable capability report."""
        info = self.get_server_info()
        resources = self.get_resources()
        security = self.get_security_info()

        lines = []
        lines.append("=" * 70)
        lines.append("FHIR Server Capability Report")
        lines.append(f"Server: {self.base_url}")
        lines.append("=" * 70)
        lines.append(f"FHIR Version:  {info['fhir_version']}")
        lines.append(f"Publisher:     {info['publisher']}")
        lines.append(f"Software:      {info['software']}")
        lines.append(f"Formats:       {', '.join(info['formats'])}")
        lines.append(f"Total Resources: {len(resources)}")
        lines.append("")
        lines.append("--- Security ---")
        lines.append(f"CORS: {security['cors']}")
        lines.append(f"Services: {', '.join(security['services'])}")
        for key, url in security['oauth_urls'].items():
            lines.append(f"  {key}: {url}")
        lines.append("")
        lines.append("--- Resource Summary ---")
        lines.append(f"{'Resource':<25} {'Interactions':<35} {'Search Params'}")
        lines.append("-" * 80)
        for rtype, caps in sorted(resources.items()):
            interactions = ", ".join(caps["interactions"])
            param_count = len(caps["search_params"])
            lines.append(f"{rtype:<25} {interactions:<35} {param_count} params")

        return "\n".join(lines)

if __name__ == "__main__":
    url = sys.argv[1] if len(sys.argv) > 1 else "https://hapi.fhir.org/baseR4"
    analyzer = CapabilityAnalyzer(url)
    analyzer.fetch()
    print(analyzer.generate_report())

Running this against a public HAPI FHIR server produces a complete inventory of supported resources, search parameters, and security configuration — information that would take hours to compile manually.

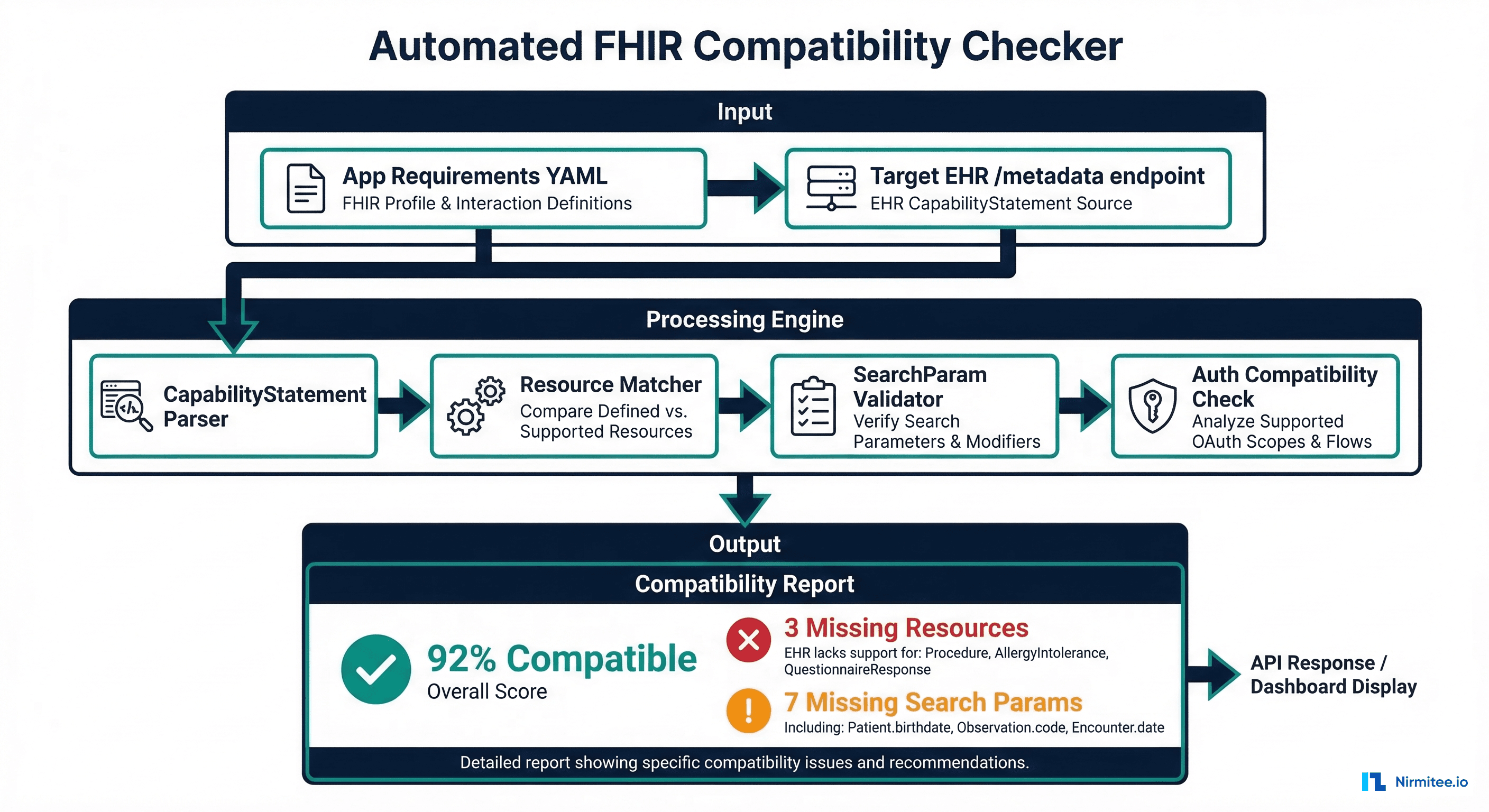

Building an Automated Compatibility Checker

The real power of CapabilityStatements emerges when you build automation around them. Here's a compatibility checker that validates whether a target FHIR server meets your application's requirements.

#!/usr/bin/env python3
"""Check if a FHIR server meets your app's requirements."""
import yaml
import json

# Define your app's requirements in YAML
APP_REQUIREMENTS = """
required_resources:
  Patient:
    interactions: [read, search-type]
    search_params: [family, given, birthdate, identifier]
  Observation:
    interactions: [read, search-type, create]
    search_params: [patient, category, code, date]
  Condition:
    interactions: [read, search-type]
    search_params: [patient, clinical-status, category]
  MedicationRequest:
    interactions: [read, search-type]
    search_params: [patient, status, authoredon]
required_security:
  - SMART-on-FHIR
required_operations:
  Patient: [$everything]
"""

class CompatibilityChecker:
    def __init__(self, requirements_yaml, capability_json):
        self.reqs = yaml.safe_load(requirements_yaml)
        self.cap = capability_json
        self.results = {"passed": [], "failed": [], "warnings": []}

    def check(self):
        self._check_resources()
        self._check_security()
        self._check_operations()
        return self.results

    def _check_resources(self):
        rest = self.cap.get("rest", [{}])[0]
        server_resources = {
            r["type"]: r for r in rest.get("resource", [])
        }
        for rtype, reqs in self.reqs.get("required_resources", {}).items():
            if rtype not in server_resources:
                self.results["failed"].append(
                    f"Resource '{rtype}' not supported"
                )
                continue
            server_res = server_resources[rtype]
            server_interactions = [
                i["code"] for i in server_res.get("interaction", [])
            ]
            server_params = [
                sp["name"] for sp in server_res.get("searchParam", [])
            ]
            for interaction in reqs.get("interactions", []):
                if interaction in server_interactions:
                    self.results["passed"].append(
                        f"{rtype}.{interaction} supported"
                    )
                else:
                    self.results["failed"].append(
                        f"{rtype}.{interaction} NOT supported"
                    )
            for param in reqs.get("search_params", []):
                if param in server_params:
                    self.results["passed"].append(
                        f"{rtype}?{param} supported"
                    )
                else:
                    self.results["failed"].append(
                        f"{rtype}?{param} NOT supported"
                    )

    def _check_security(self):
        rest = self.cap.get("rest", [{}])[0]
        security = rest.get("security", {})
        server_services = []
        for svc in security.get("service", []):
            for coding in svc.get("coding", []):
                server_services.append(coding.get("code", ""))
        for req_svc in self.reqs.get("required_security", []):
            if req_svc in server_services:
                self.results["passed"].append(f"Security: {req_svc}")
            else:
                self.results["failed"].append(
                    f"Security: {req_svc} missing"
                )

    def _check_operations(self):
        rest = self.cap.get("rest", [{}])[0]
        server_resources = {
            r["type"]: r for r in rest.get("resource", [])
        }
        for rtype, ops in self.reqs.get("required_operations", {}).items():
            if rtype in server_resources:
                server_ops = [
                    o.get("name")
                    for o in server_resources[rtype].get("operation", [])
                ]
                for op in ops:
                    op_name = op.lstrip("$")
                    if op_name in server_ops:
                        self.results["passed"].append(
                            f"{rtype}.{op} operation available"
                        )
                    else:
                        self.results["warnings"].append(
                            f"{rtype}.{op} operation not found"
                        )

# Usage:
# checker = CompatibilityChecker(APP_REQUIREMENTS, capability_json)
# results = checker.check()
# print(f"Passed: {len(results['passed'])}")
# print(f"Failed: {len(results['failed'])}")
# print(f"Warnings: {len(results['warnings'])}")

This approach transforms CapabilityStatement analysis from a manual exercise into a CI/CD gate. Run it before deployment to verify that your target EHR environment supports every resource, interaction, and search parameter your application requires.

Common Pitfalls When Reading CapabilityStatements

After working with dozens of EHR FHIR implementations, here are the traps that catch developers most often:

1. Assuming the CapabilityStatement Is Complete

Some servers (particularly older Cerner deployments) don't list every supported search parameter in their CapabilityStatement. A parameter might work in practice but not appear in /metadata. Always treat the CapabilityStatement as a minimum guarantee, not an exhaustive inventory.

2. Ignoring Profile Constraints

A server might support the Patient resource but require the US Core Patient profile. If you send a base FHIR Patient without the required extensions (like race and ethnicity for US Core), the server may reject your create/update operations. Check supportedProfile carefully.

3. Confusing "search-type" with "search-system"

Having search-type in a resource's interactions means you can search within that resource type (GET /Patient?name=Smith). Having search-system in the rest[0].interaction array means you can search across all types (GET /?_type=Patient,Observation). They're different capabilities at different levels.

4. Not Checking the Date

CapabilityStatements have a date field. If it's years old, the server may have been updated without updating the CapabilityStatement. This is common in custom-built FHIR servers. Cross-reference with the vendor's documentation.

5. Missing the Extensions

Critical information often hides in FHIR extensions. The SMART on FHIR OAuth URLs, for example, are in a nested extension structure — not a top-level field. Always parse extensions, especially the http://fhir-registry.smarthealthit.org/StructureDefinition/oauth-uris extension for security configuration.

For a deeper understanding of how FHIR resource validation interacts with CapabilityStatement conformance, see our guide on FHIR resource validation.

Practical Workflow: From /metadata to Working Integration

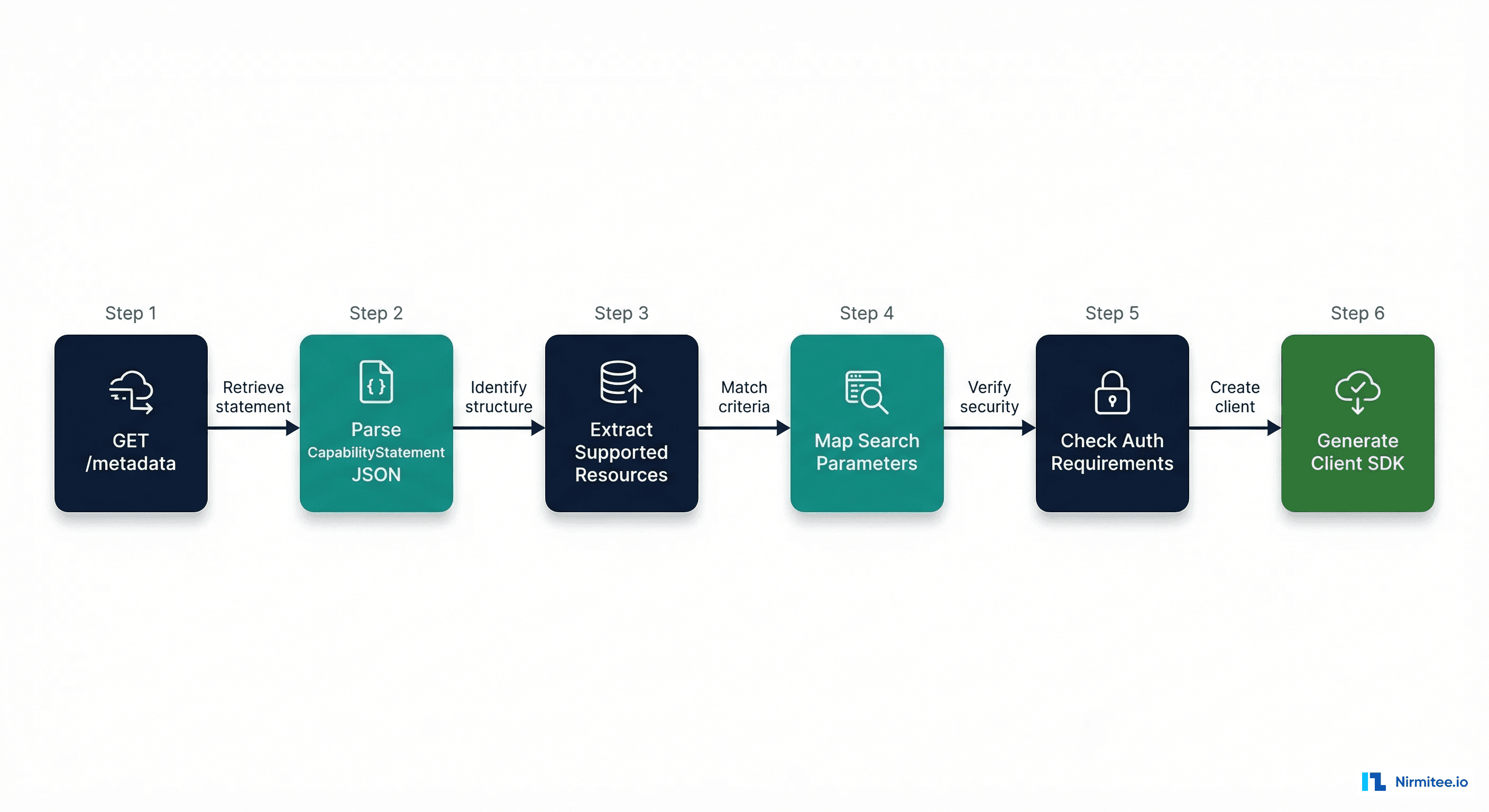

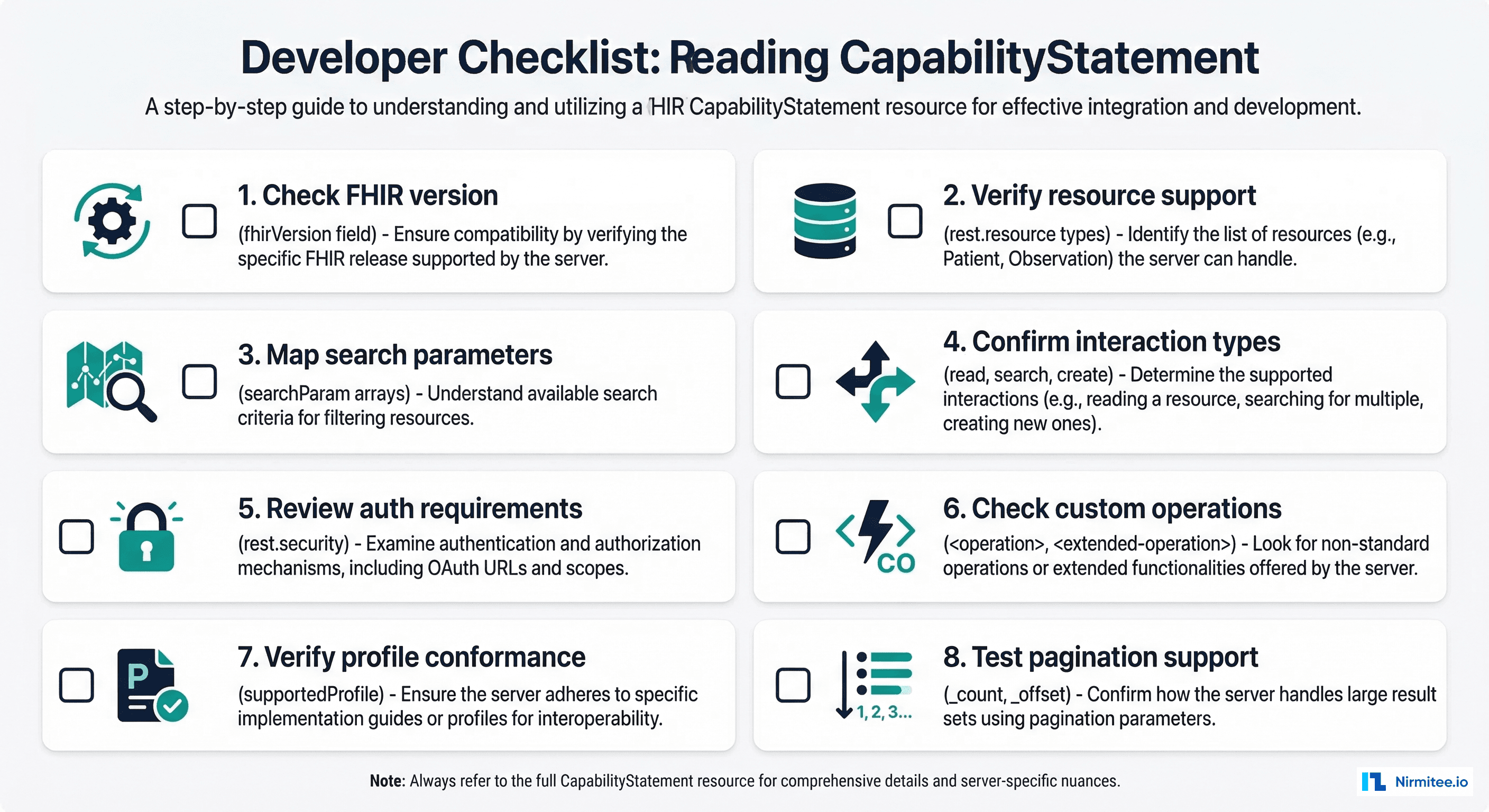

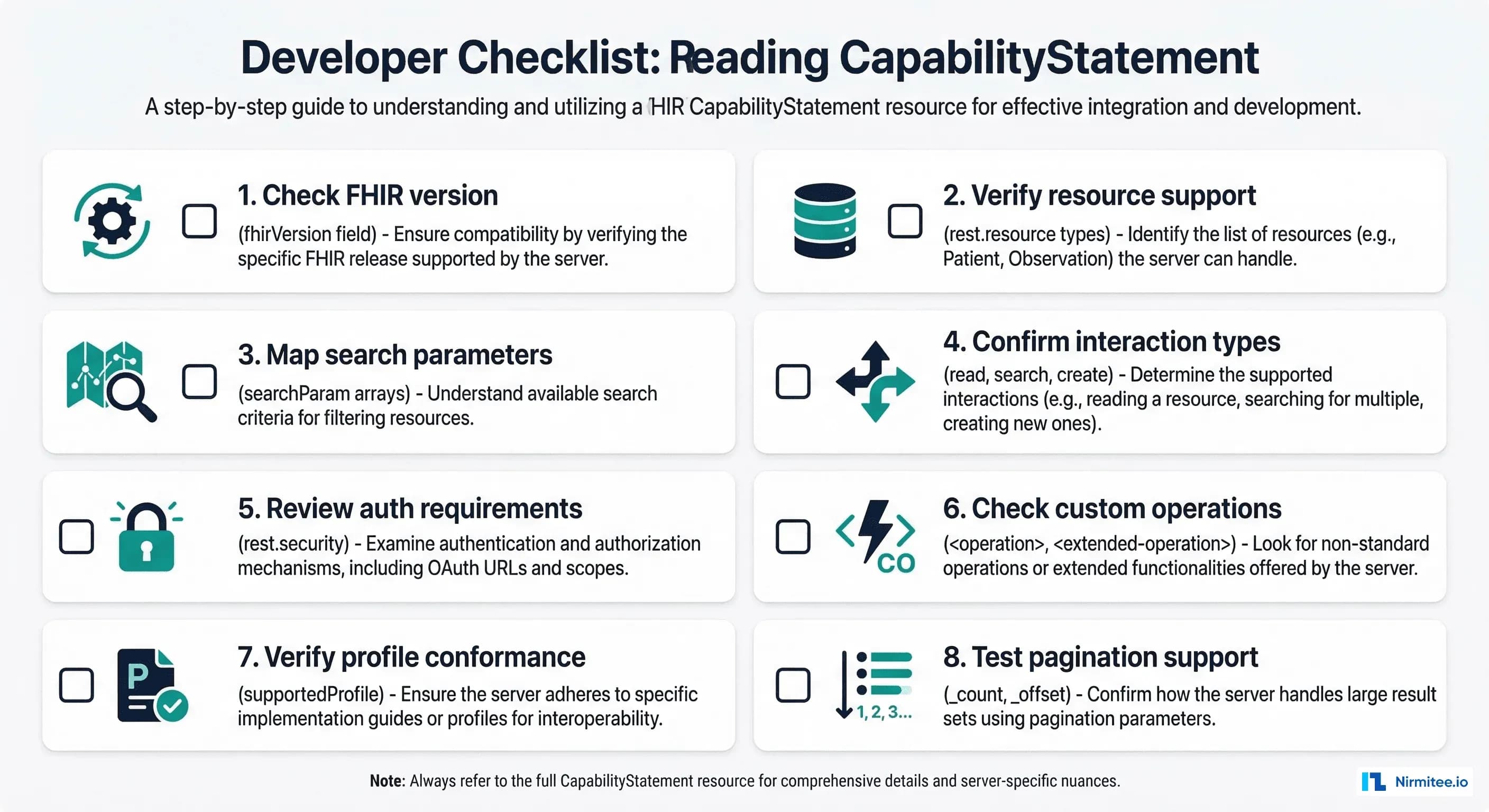

Here's the step-by-step process we recommend for any new FHIR integration project:

1. Fetch /metadata — Start by programmatically retrieving the CapabilityStatement. Store it locally for reference.
2. Check FHIR version — Verify fhirVersion. R4 (4.0.1) is the current US regulatory standard. Some servers still serve DSTU2 (1.0.2) or STU3 (3.0.2).
3. Inventory resources — List every resource in rest[0].resource. Map this against your application's requirements.
4. Validate search parameters — For each resource you need, confirm the search parameters exist. This is where most integration projects hit unexpected gaps.
5. Extract auth endpoints — Parse the security section for SMART on FHIR OAuth URLs. These are required before you can authenticate.
6. Check operations — Look for $everything, $export, $validate, and other custom operations that can simplify your integration.
7. Test and verify — The CapabilityStatement is a promise, not a guarantee. Test critical capabilities against the live server.

Teams implementing SMART on FHIR authorization will find that the CapabilityStatement's security section provides the OAuth endpoints needed for the initial app registration and launch sequence.

Advanced: Multi-Server Capability Diffing

When building apps that need to work across multiple EHR environments (Epic, Oracle, Meditech, etc.), a capability diff tool becomes essential:

def diff_capabilities(cap_a, cap_b, label_a="Server A", label_b="Server B"):
    """Compare two CapabilityStatements and report differences."""
    rest_a = cap_a.get("rest", [{}])[0]
    rest_b = cap_b.get("rest", [{}])[0]

    resources_a = {r["type"] for r in rest_a.get("resource", [])}
    resources_b = {r["type"] for r in rest_b.get("resource", [])}

    only_a = resources_a - resources_b
    only_b = resources_b - resources_a
    common = resources_a & resources_b

    print(f"Resources only in {label_a}: {len(only_a)}")
    for r in sorted(only_a):
        print(f"  + {r}")

    print(f"\nResources only in {label_b}: {len(only_b)}")
    for r in sorted(only_b):
        print(f"  + {r}")

    print(f"\nCommon resources: {len(common)}")
    print(f"\nSearch parameter differences in common resources:")

    res_map_a = {r["type"]: r for r in rest_a.get("resource", [])}
    res_map_b = {r["type"]: r for r in rest_b.get("resource", [])}

    for rtype in sorted(common):
        params_a = {sp["name"] for sp in res_map_a[rtype].get("searchParam", [])}
        params_b = {sp["name"] for sp in res_map_b[rtype].get("searchParam", [])}
        diff_a = params_a - params_b
        diff_b = params_b - params_a
        if diff_a or diff_b:
            print(f"\n  {rtype}:")
            if diff_a:
                print(f"    Only {label_a}: {', '.join(sorted(diff_a))}")
            if diff_b:
                print(f"    Only {label_b}: {', '.join(sorted(diff_b))}")

This diff approach is especially valuable when migrating between EHR vendors — a process that Health Affairs estimates costs hospitals $5-10M per migration. Knowing exactly which capabilities differ upfront prevents costly mid-migration surprises.

Frequently Asked Questions

What is the FHIR CapabilityStatement endpoint?

Every FHIR server exposes its CapabilityStatement at GET [base]/metadata. This is a required interaction per the FHIR specification. No authentication is needed to access it. The response is a JSON (or XML) resource of type CapabilityStatement that describes all supported resources, search parameters, operations, and security requirements.

How do I find which FHIR resources an EHR supports?

Fetch the CapabilityStatement from GET /metadata and inspect the rest[0].resource array. Each entry has a type field naming the supported resource (Patient, Observation, etc.) along with supported interactions, search parameters, and profiles. This is the authoritative source — more reliable than vendor documentation, which may be outdated.

What is the difference between CapabilityStatement and Conformance in FHIR?

They are the same concept at different FHIR versions. In DSTU2, the resource was called Conformance. It was renamed to CapabilityStatement in STU3 and remains so in R4, R5, and R6. The structure evolved but the purpose — describing server capabilities — is identical. If you call GET /metadata on a DSTU2 server, you'll receive a Conformance resource instead.

How do I extract SMART on FHIR OAuth URLs from a CapabilityStatement?

The OAuth URLs (authorize, token, register) are nested inside the rest[0].security.extension array, under the extension with URL http://fhir-registry.smarthealthit.org/StructureDefinition/oauth-uris. Each sub-extension contains a url key (like "authorize") and a valueUri with the actual endpoint URL. Most FHIR client libraries have helpers to extract these automatically.

Can I use the CapabilityStatement to auto-generate API client code?

Yes. Since the CapabilityStatement is machine-readable JSON, you can parse it to generate typed client code that only includes methods for supported resources and search parameters. Libraries like HAPI FHIR (Java) and fhir.resources (Python) can be configured based on CapabilityStatement data. Some teams generate OpenAPI/Swagger specs from CapabilityStatements for REST tooling compatibility.

Why does the CapabilityStatement sometimes not match actual server behavior?

CapabilityStatements are often generated statically during server configuration, not dynamically at request time. If a server is updated (new resources enabled, search parameters added) without regenerating the CapabilityStatement, discrepancies occur. This is common in custom implementations. Best practice: treat the CapabilityStatement as a starting point and verify critical capabilities with live requests.
