Healthcare integration is hard. Not conceptually hard — the idea of moving data between systems is straightforward. The hard part is the thousand ways it breaks in production, at 2 AM, when a patient's medication reconciliation depends on a message that's stuck in a queue nobody monitors.
Over years of building and rescuing healthcare integration platforms — from Mirth Connect channels to custom FHIR middleware — we've cataloged the same antipatterns appearing across health systems of every size. Community hospitals with 12 interfaces. Academic medical centers with 400+. The mistakes are remarkably consistent.

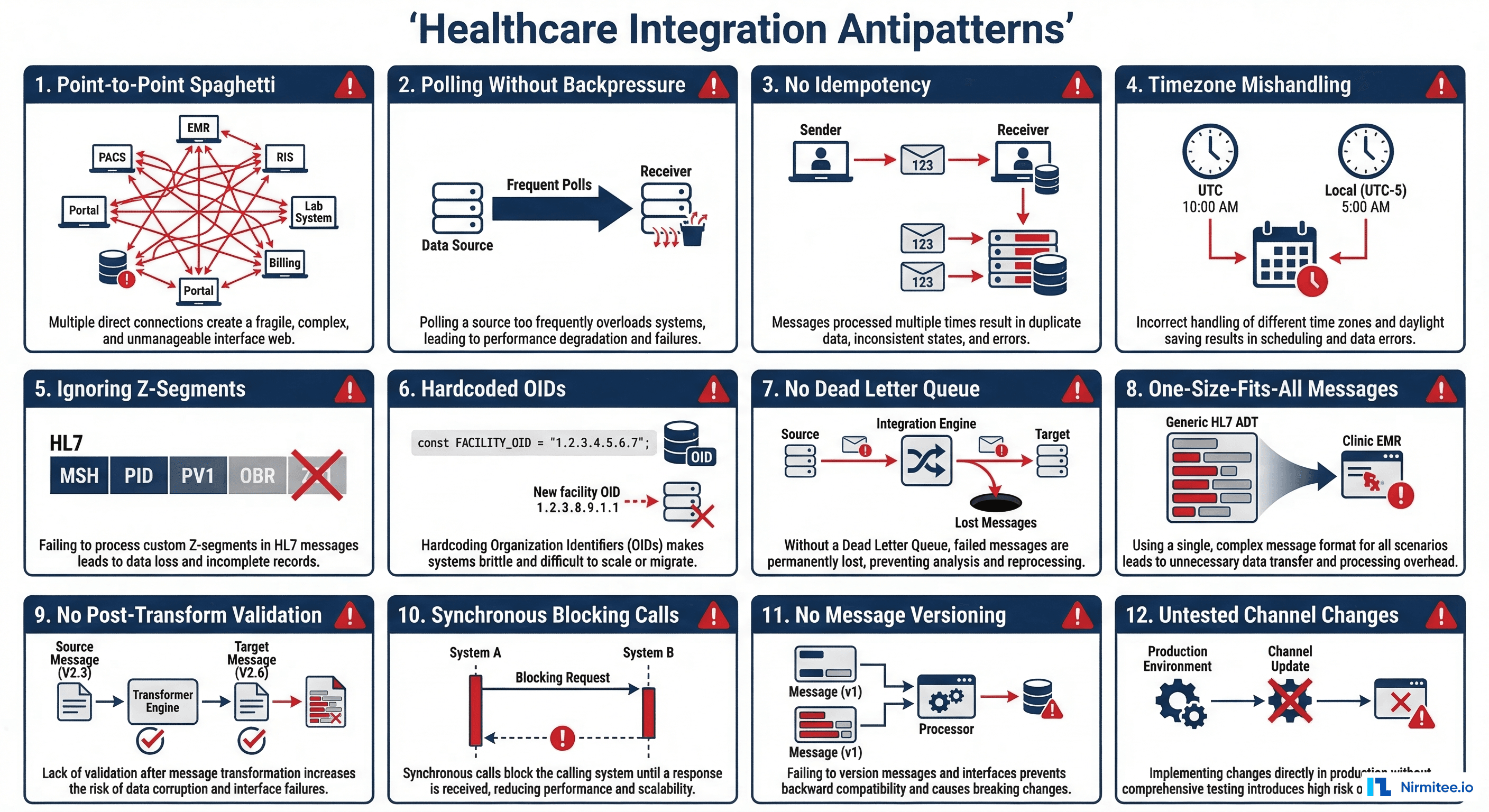

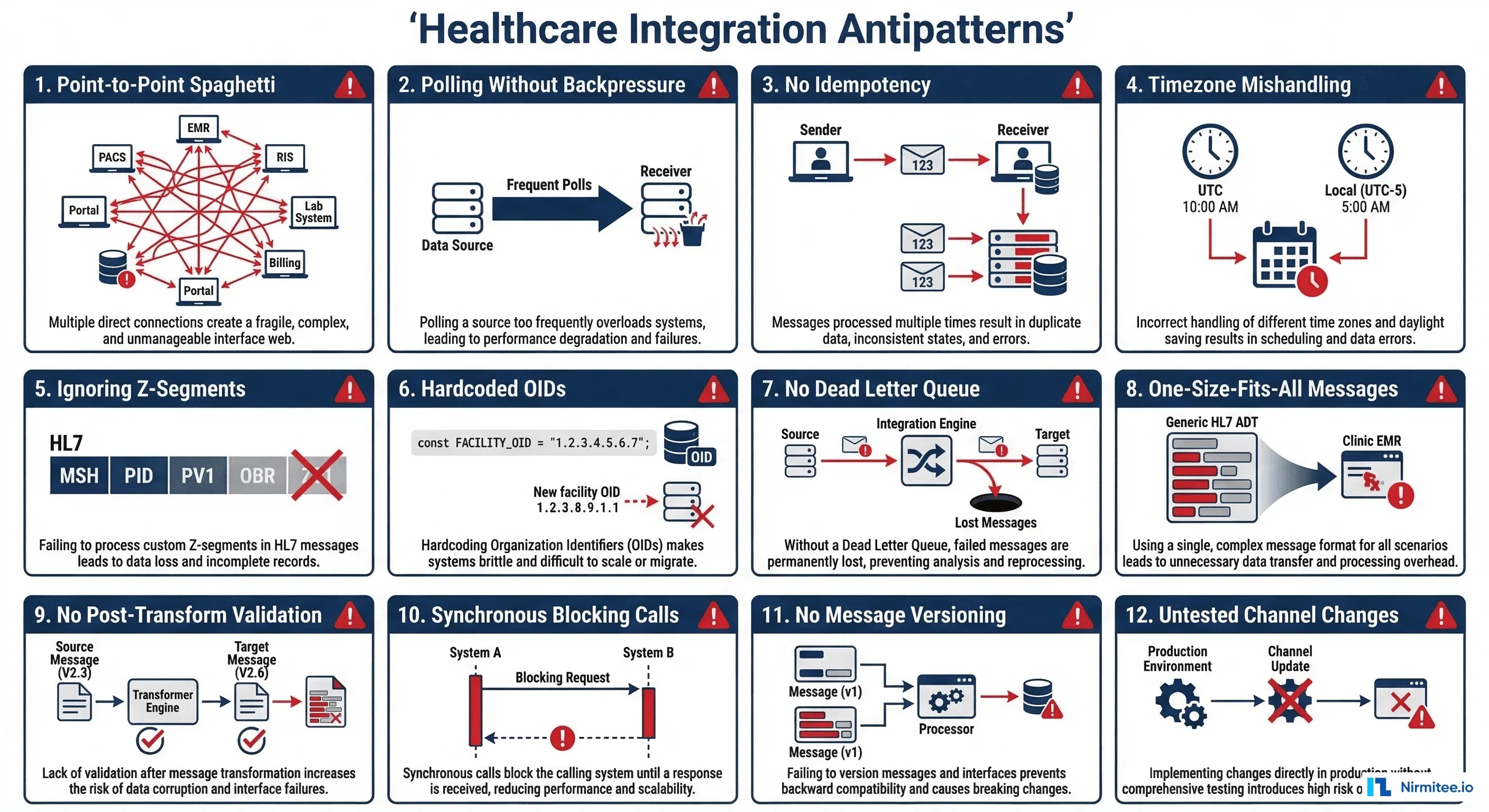

This playbook documents 12 of the most dangerous integration antipatterns we've encountered in production healthcare environments. For each one, we cover what it looks like, why it's dangerous in a clinical context, and exactly how to fix it. These aren't theoretical concerns — every one of these has caused real incidents at real hospitals.

Antipattern 1: Point-to-Point Spaghetti
What It Looks Like

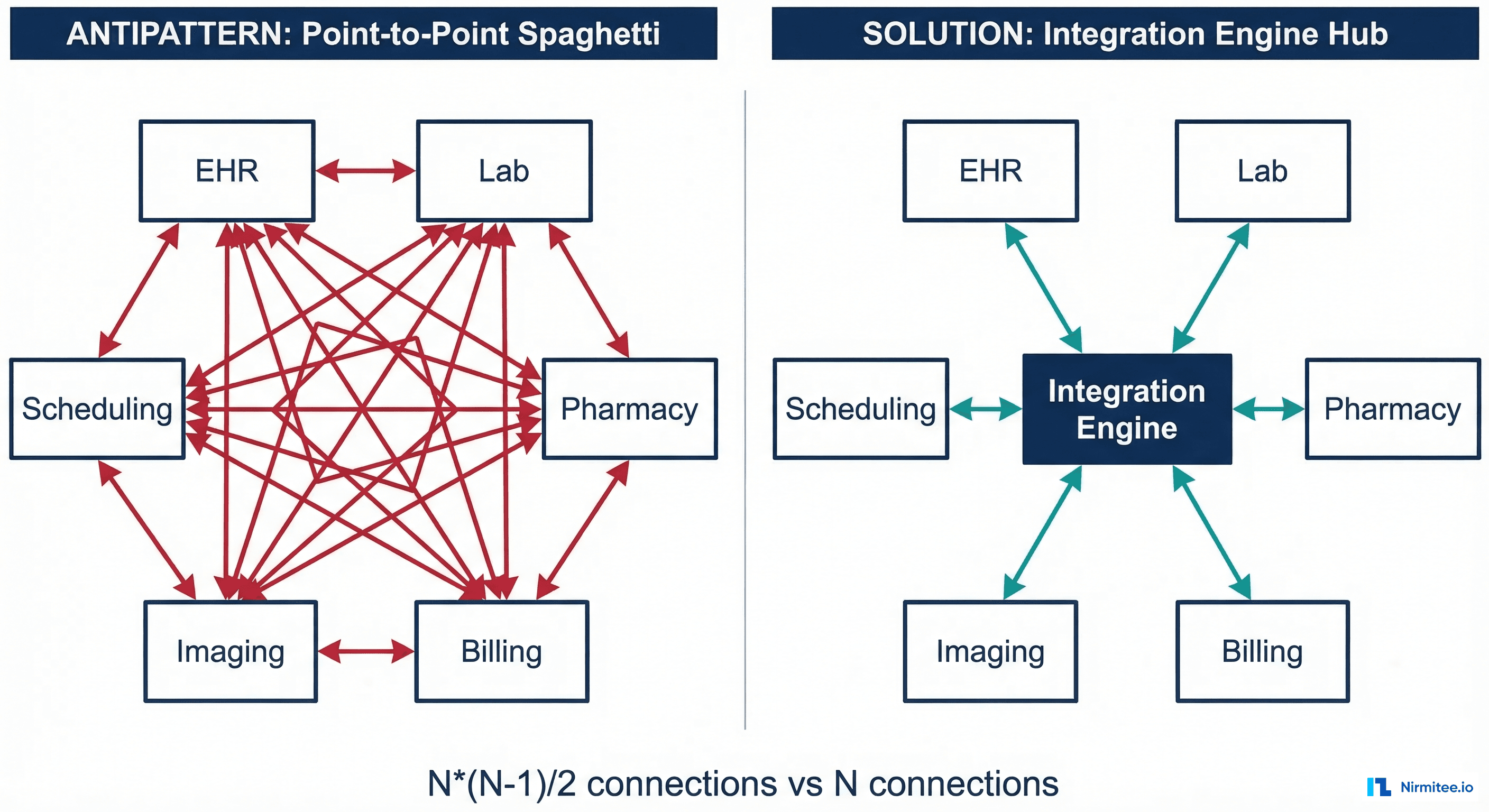

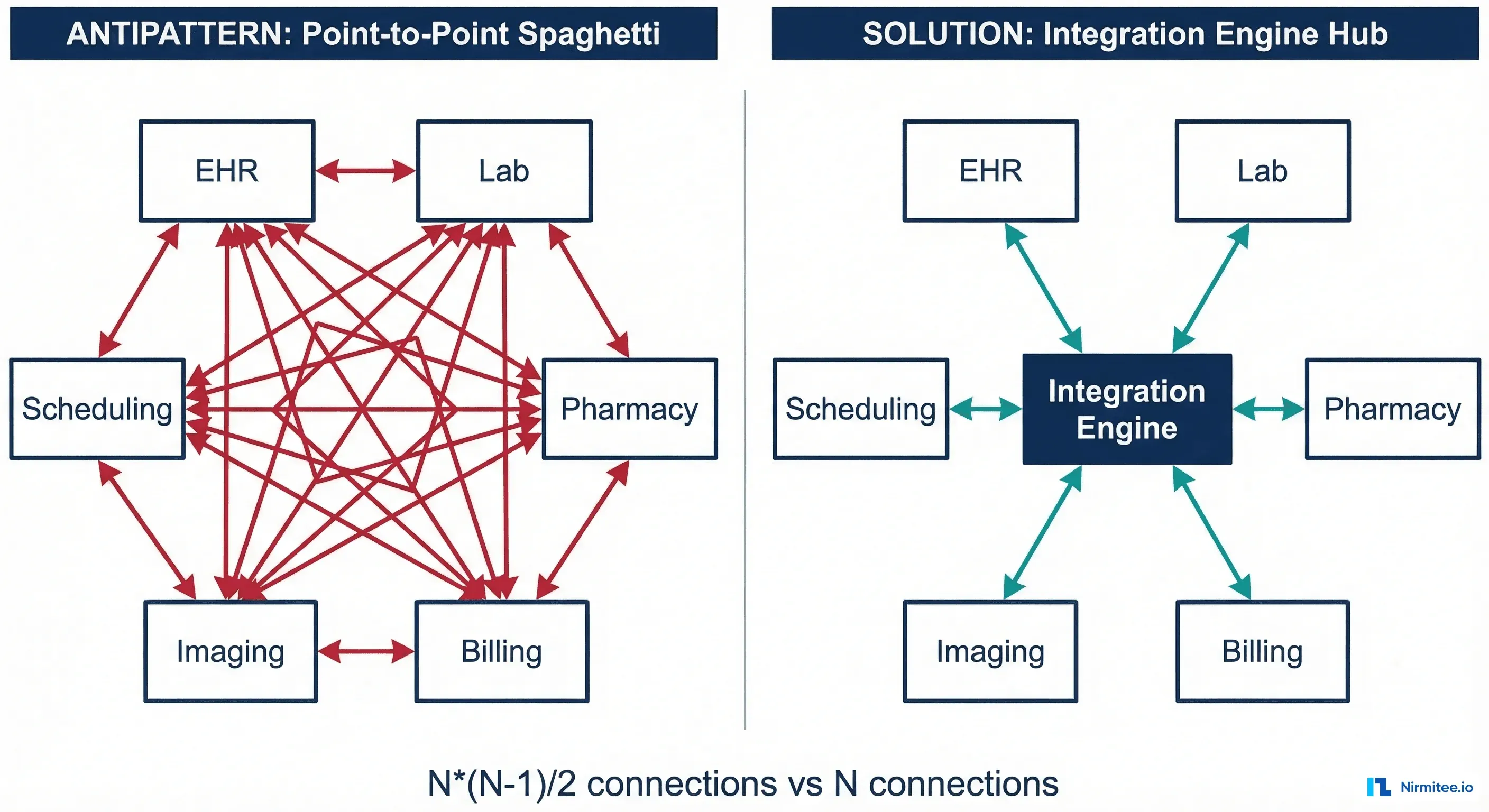

Every system connects directly to every other system it needs to communicate with. The EHR sends ADT messages directly to the lab system, the pharmacy system, the billing system, and the radiology PACS. The lab system sends results directly back to the EHR and separately to the billing system. When you diagram it, the result looks like a plate of spaghetti — hence the name.
In a system with N applications, you end up with N*(N-1)/2 potential connections. A modest hospital with just 10 interfaced systems faces 45 unique connection pairs. A large academic medical center with 50 systems faces 1,225.
Why It's Dangerous
Every connection is a unique snowflake requiring its own maintenance, monitoring, and institutional knowledge. When the lab system upgrades its HL7v2 version from 2.3.1 to 2.5.1, you're updating 8 different interfaces instead of one. When a network segment changes, you're reconfiguring dozens of connection strings. Worse, nobody has a complete picture of data flow. Messages get lost between systems and nobody notices until a clinician can't find a lab result. According to a HIMSS interoperability survey, integration complexity is the number one barrier to health data exchange, and point-to-point architectures are the primary driver.
How to Fix It
Implement a hub-and-spoke architecture using an integration engine. Mirth Connect, Rhapsody, or InterSystems HealthShare act as the central hub. Every system connects to the engine, and the engine handles routing, transformation, and monitoring. Your N*(N-1)/2 connections become N connections. One place to monitor. One place to transform. One place to troubleshoot.

The migration doesn't have to be big-bang. Start by routing new interfaces through the engine. Then migrate existing high-volume interfaces one at a time. Within 6-12 months, you'll have centralized visibility into every message flowing through your organization.
Antipattern 2: Polling Without Backpressure
What It Looks Like
A downstream consumer polls a source system on a fixed interval — say, every 5 seconds — regardless of how many messages are queued or how fast it can actually process them. During normal hours, this works fine. During a Monday morning admission surge or after a system-wide downtime recovery, the polling consumer pulls thousands of messages it can't process fast enough, memory fills up, and the consumer crashes — creating an even bigger backlog.
Why It's Dangerous
In healthcare, message backlogs cascade. When the ADT consumer falls behind, downstream systems don't know about new admissions. Pharmacy doesn't get medication orders. The bed management system shows stale census data. Nurses waste time calling the help desk about "missing patients" in their worklists. During recovery from an EHR downtime event — when accuracy matters most — is exactly when this antipattern hits hardest.
How to Fix It
Implement backpressure-aware consumption. Use a message queue (RabbitMQ, Kafka, or even the integration engine's built-in queuing) that decouples ingestion rate from processing rate. Set consumer prefetch limits — process N messages at a time, acknowledge completion before fetching more. Monitor queue depth with alerting thresholds. For Mirth Connect channels, configure the source queue size and set the max processing threads based on measured throughput, not guesswork. A well-tuned channel should maintain steady queue depth under load, not oscillate between empty and overflow.
Antipattern 3: No Idempotency on Retries
What It Looks Like
When a message fails to deliver (network timeout, destination system down), the integration engine retries. But the destination has no way to detect that it already processed this message. A lab order gets placed twice. A charge gets posted twice. An ADT discharge triggers two separate workflows. You see duplicate records appearing in downstream systems with no obvious explanation.
Why It's Dangerous
Duplicate lab orders waste reagents, technician time, and patient blood draws. Duplicate charges create billing compliance issues — submitting duplicate claims to CMS is a False Claims Act risk. Duplicate ADT events corrupt census counts and can trigger incorrect bed assignments. A 2023 ECRI Institute report identified duplicate orders as a top-10 patient safety concern in health IT systems.
How to Fix It

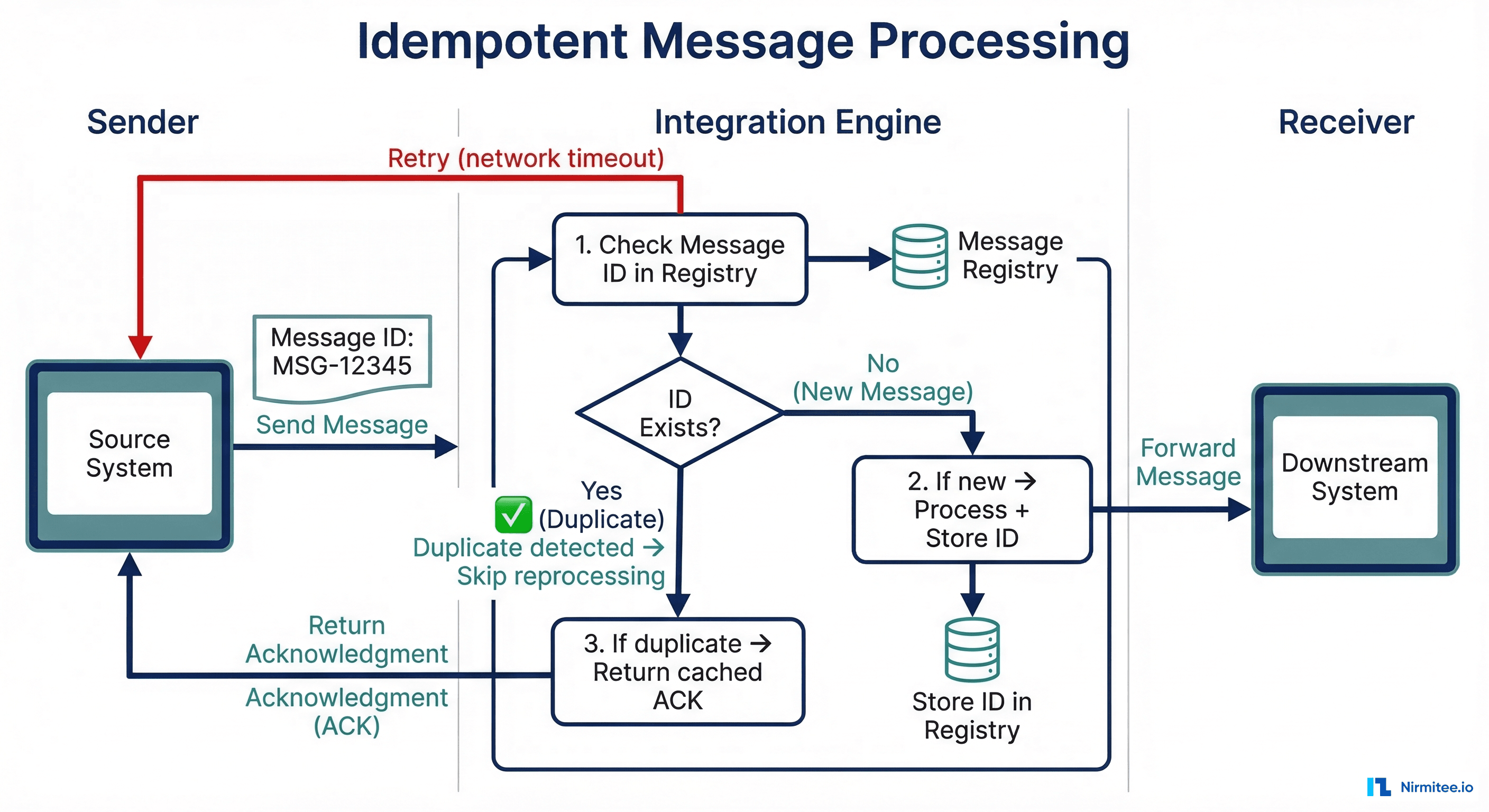

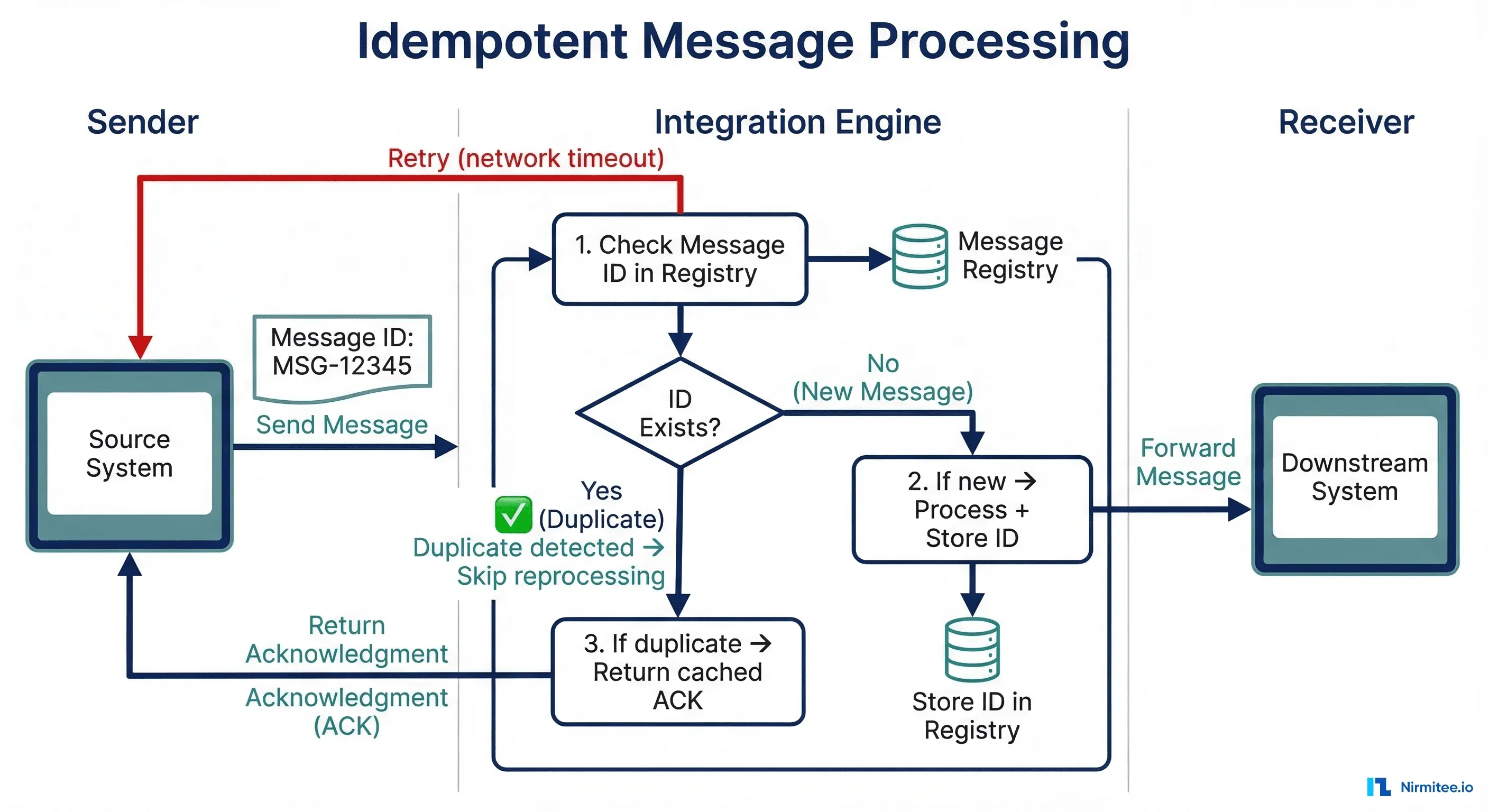

Make every message consumer idempotent. This requires two things: (1) a unique message identifier, and (2) a deduplication registry. For HL7v2, use MSH-10 (Message Control ID). For FHIR, use Bundle.entry.fullUrl or a custom X-Idempotency-Key header. At the consumer, check the registry before processing. If the message ID exists, return the cached acknowledgment without reprocessing. If it's new, process it and store the ID with a TTL appropriate for your retry window (typically 24-72 hours).

-- PostgreSQL idempotency registry
CREATE TABLE message_registry (
message_id VARCHAR(255) PRIMARY KEY,
channel_id VARCHAR(100) NOT NULL,
processed_at TIMESTAMP DEFAULT NOW(),
response_hash VARCHAR(64),
expires_at TIMESTAMP DEFAULT NOW() + INTERVAL '72 hours'
);
-- Check before processing
SELECT message_id FROM message_registry
WHERE message_id = $1 AND channel_id = $2 AND expires_at > NOW();
-- Insert after successful processing
INSERT INTO message_registry (message_id, channel_id, response_hash)
VALUES ($1, $2, $3)

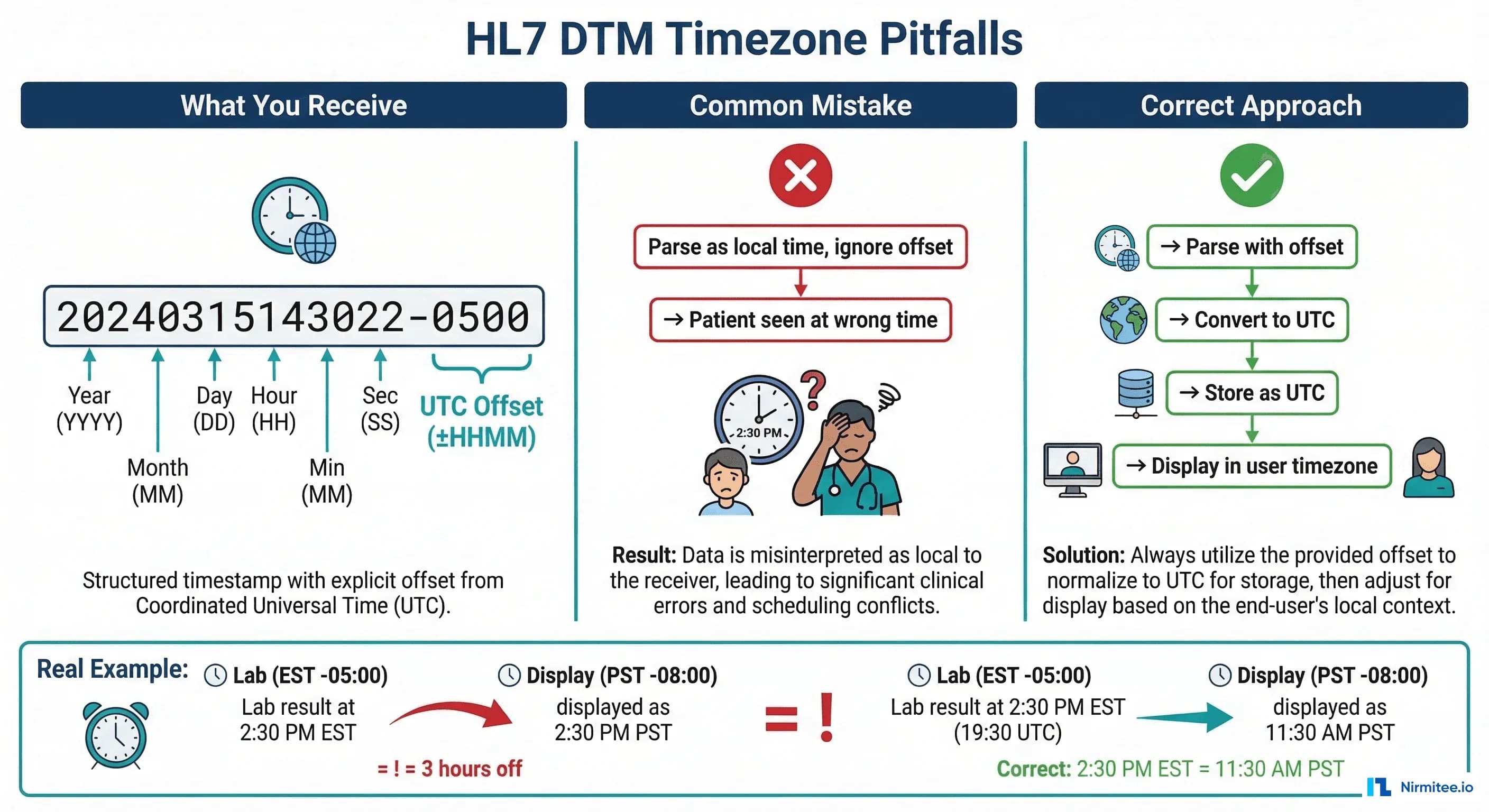

ON CONFLICT (message_id) DO NOTHING;Antipattern 4: Timezone Mishandling in HL7 DTM
What It Looks Like

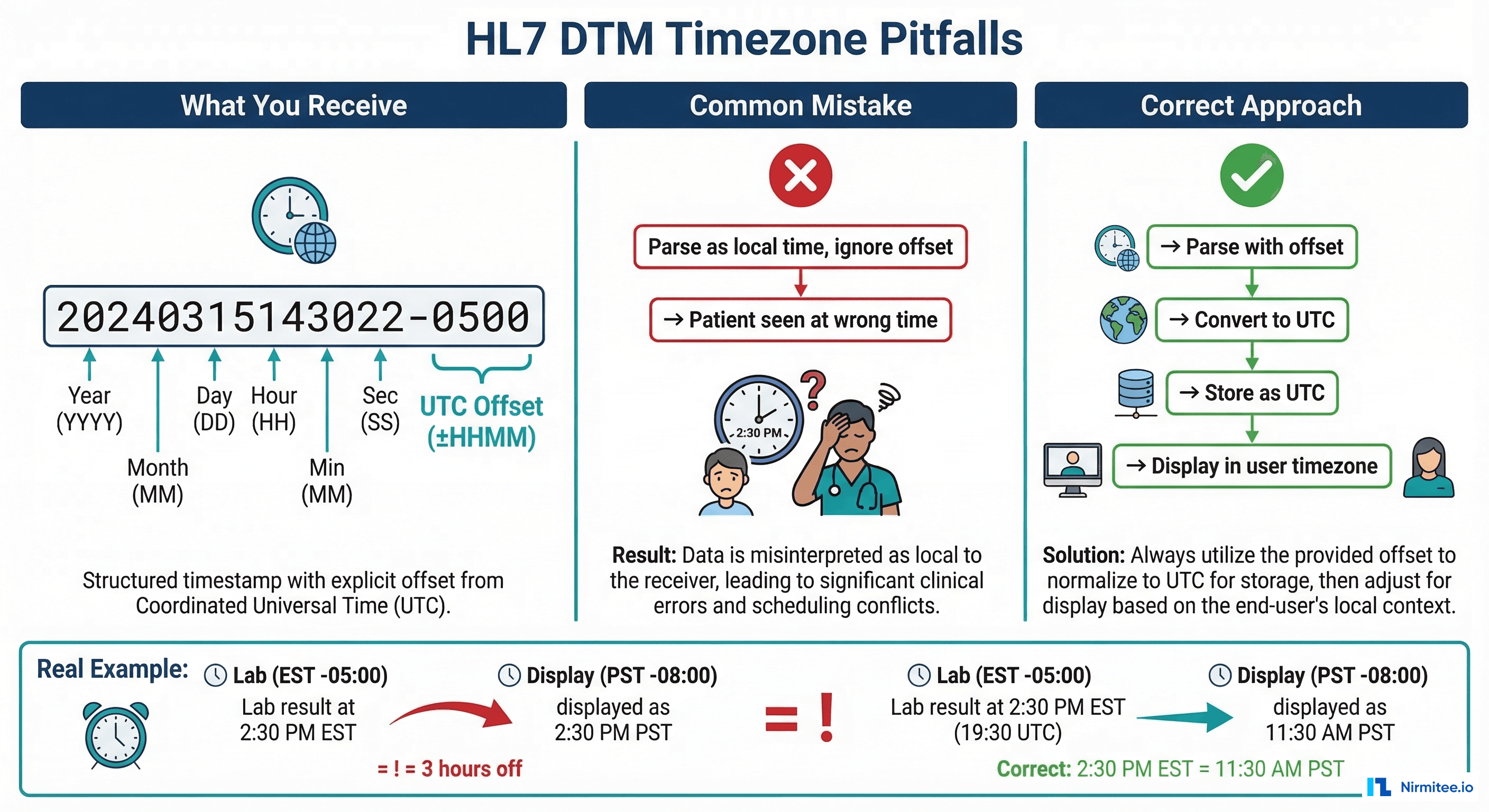

HL7v2 timestamps in the DTM data type look like 20240315143022-0500 — that's March 15, 2024 at 2:30:22 PM Eastern Standard Time. The integration developer parses the date and time but ignores the timezone offset. Or worse, the sending system doesn't include the offset at all, and the developer assumes local time. Now you have lab results timestamped 3 hours off, medication administration times that don't match nursing documentation, and order entry sequences that appear out of order.
Why It's Dangerous
Medication timing is critical. A medication administered at 2:30 PM EST that shows as 2:30 PM PST in the pharmacy system creates a 3-hour discrepancy. For time-sensitive drugs like antibiotics in sepsis protocols (where the CMS SEP-1 measure requires administration within 3 hours), this can be the difference between compliance and a quality measure failure. In organizations spanning multiple time zones — large health systems, reference labs, telehealth networks — this affects every single message.

How to Fix It
Establish a timezone contract for your integration platform. The best practice: (1) Always parse HL7 DTM with the offset if present. (2) Convert to UTC immediately upon receipt. (3) Store all timestamps in UTC in your integration database. (4) Convert to the user's local timezone only at display time. For systems that don't send timezone offsets, document the assumed timezone per source system in your interface specification — and validate with the vendor during testing.
// Go example: Parse HL7 DTM with timezone handling
func parseHL7DTM(dtm string) (time.Time, error) {
// Formats from most specific to least
formats := []string{
"20060102150405-0700", // Full with offset
"20060102150405", // No offset (assume source TZ)
"200601021504", // No seconds
"20060102", // Date only
}
for _, fmt := range formats {
if t, err := time.Parse(fmt, dtm); err == nil {
return t.UTC(), nil // Always convert to UTC
}
}
return time.Time{}, fmt.Errorf("unparseable DTM: %s", dtm)
}Antipattern 5: Ignoring Z-Segments
What It Looks Like
HL7v2 Z-segments are custom segments that vendors use to transmit data not covered by the standard segments. Epic uses ZPM for pharmacy data. Cerner uses ZCF for custom fields. Your integration strips these out during transformation because "they're not standard" or "we don't know what they mean." Six months later, a clinician reports that critical data is missing from the downstream system — patient consent flags, custom allergy severities, or payer-specific authorization numbers that lived in those Z-segments.
Why It's Dangerous
Z-segments often contain operationally critical data. In many EHR implementations, insurance authorization numbers, clinical trial enrollment flags, patient language preferences, and advance directive indicators live in Z-segments because the standard HL7v2 specification didn't have a field for them when the interface was originally built. Silently dropping this data can create gaps in clinical documentation, billing failures, and compliance violations with information blocking rules.
How to Fix It
Never silently drop Z-segments. During interface specification, catalog every Z-segment the sending system includes. For each one, decide explicitly: (1) map to a standard field in the destination, (2) map to a custom field in the destination, (3) pass through unchanged, or (4) document the intentional exclusion with a clinical review sign-off. Store unmapped Z-segments in a catch-all field or extension so they're preserved for future use. In FHIR translations, Z-segment data maps naturally to Extension elements.
Antipattern 6: Hardcoded OIDs
What It Looks Like
Object Identifiers (OIDs) — the unique identifiers for code systems, organizations, and assigning authorities — are hardcoded throughout channel configurations, transformation scripts, and even database schemas. 2.16.840.1.113883.6.96 (SNOMED CT) appears as a string literal in 47 different places across your integration engine. When you need to support a new code system or update an OID for a new payer's requirements, you're doing a find-and-replace across dozens of channels and hoping you don't miss one.
Why It's Dangerous
OIDs are used in patient matching, code translation, and claim submission. A wrong OID in an HL7v2 CX (Extended Composite ID) segment means the receiving system doesn't recognize the patient identifier, potentially creating a duplicate medical record. In claims processing, incorrect code system OIDs cause rejections. When CMS updates code system requirements — which happens regularly with ICD-10 annual updates — you need to update every reference in a coordinated deployment. Hardcoded OIDs make this error-prone and time-consuming.
How to Fix It
Create a centralized OID registry — a lookup table or configuration service that all channels reference. Map logical names to OIDs: SNOMED_CT → 2.16.840.1.113883.6.96, LOINC → 2.16.840.1.113883.6.1. Channels reference the logical name; the registry resolves to the OID. When an OID changes or you need to support a new code system, update one record. This pattern extends naturally to FHIR system URIs (http://snomed.info/sct, http://loinc.org).
Antipattern 7: No Dead Letter Queue
What It Looks Like
A message fails processing — malformed HL7, missing required fields, destination system returning an error. The integration engine retries a fixed number of times, then... drops the message. Or logs an error that nobody reads. Or queues it in an internal error state that requires manual database intervention to access. The message is effectively lost. Clinical data is gone.
Why It's Dangerous
Lost messages in healthcare mean lost clinical data. A dropped ORU (lab result) message means a physician never sees a critical lab value. A dropped ADT (admission/discharge/transfer) means downstream systems have incorrect patient location data. A dropped ORM (order) means a lab test or imaging study never gets scheduled. In a 2024 analysis by The Joint Commission, communication failures — including lost electronic messages — were cited as a contributing factor in 63% of sentinel events.

How to Fix It

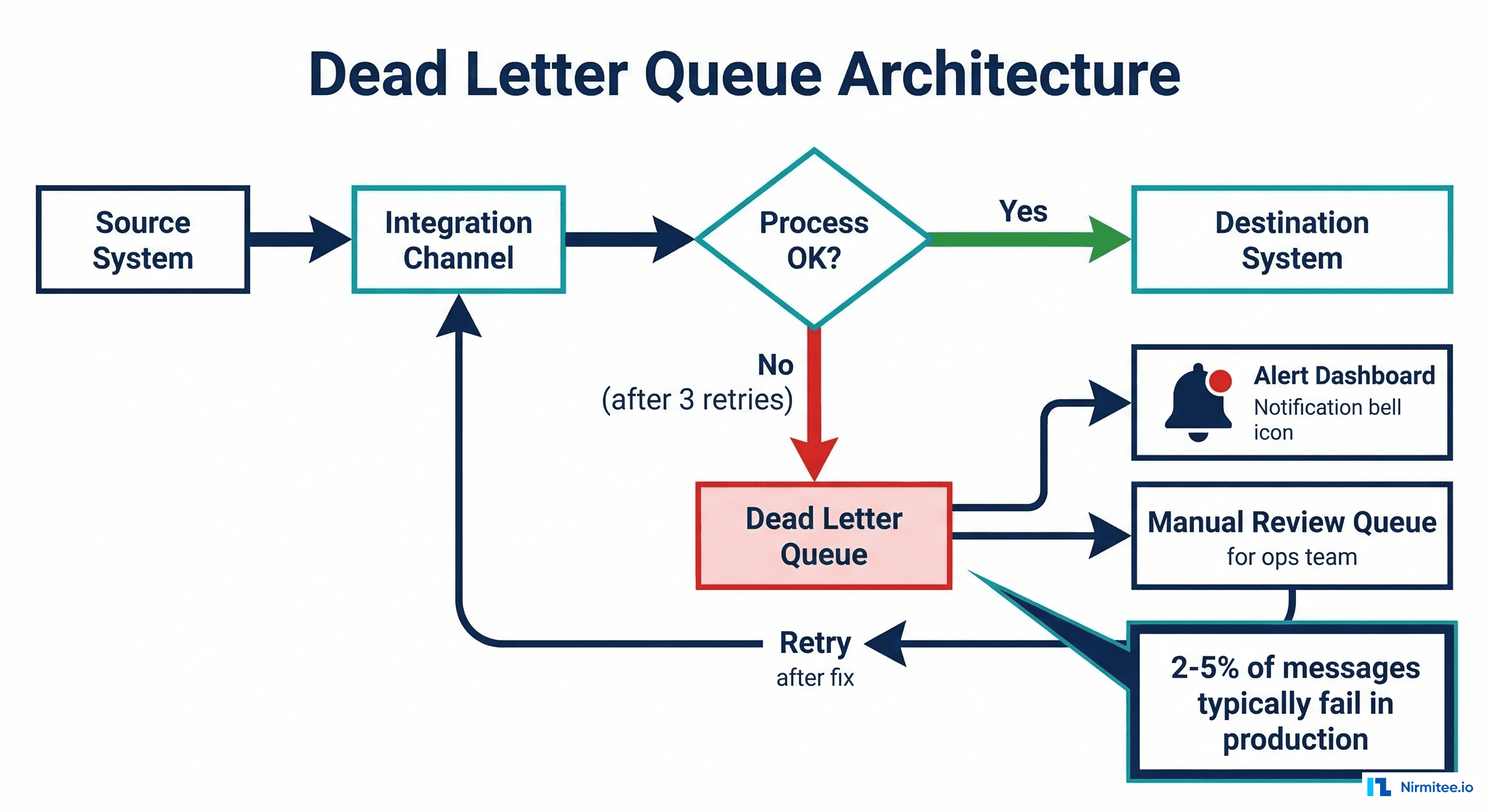

Implement a dead letter queue (DLQ) for every integration channel. When a message exhausts its retry budget, route it to the DLQ — not the void. The DLQ should have: (1) the original message content, (2) the error reason, (3) the retry count and timestamps, (4) the channel/source identification. Build a dashboard for operations staff to review, fix, and replay DLQ messages. Set up alerting: if the DLQ depth for any channel exceeds a threshold, page the on-call integration engineer. In production, 2-5% of messages typically fail on first attempt — that's normal. What's not normal is losing them.
Antipattern 8: Treating All HL7 Messages the Same
What It Looks Like
A single integration channel handles all HL7v2 message types with the same processing logic. ADT^A01 (admission), ADT^A08 (update), ADT^A03 (discharge), ORM^O01 (order), and ORU^R01 (result) all flow through the same transformation and routing rules. The channel checks the message type in MSH-9 and applies minor conditional logic, but fundamentally treats them as interchangeable. It works — until it doesn't.
Why It's Dangerous
Different message types have different clinical semantics, different urgency levels, and different downstream dependencies. An ADT^A01 triggers dozens of workflows — bed assignment, pharmacy review, nursing assessment scheduling, insurance verification. An ADT^A08 might just update a phone number. Treating them identically means you can't prioritize critical messages, can't apply type-specific validation, and can't route to type-specific destinations. When the channel backs up, critical lab results wait behind routine demographic updates.
How to Fix It
Implement message-type-specific processing pipelines. Use a router channel pattern that inspects MSH-9 and dispatches to type-specific channels. Each channel handles its own validation, transformation, routing, and error handling. This also enables independent scaling — you can allocate more processing threads to ORU (results) channels during high-volume periods without affecting ADT processing. It mirrors how clinical operations actually work: different message types trigger different clinical workflows.
Antipattern 9: Not Validating After Transform
What It Looks Like
The integration engine receives an HL7v2 message, validates it, transforms it (maybe HL7v2 to FHIR, maybe v2.3 to v2.5, maybe reformatting fields for the destination), and sends it downstream — without validating the transformed output. The output message has malformed segments, missing required fields, or data type mismatches that the destination system rejects or, worse, silently misinterprets.
Why It's Dangerous
Transformation is where most data corruption happens. A mapping error that truncates a medication code. A date format conversion that swaps month and day for certain locales. A field that's required by the destination but optional in the source, left empty after transformation. Without post-transform validation, these errors reach the destination system. Some destinations reject gracefully. Others accept the malformed data and propagate the corruption further — into clinical displays, reports, and decision support systems.
How to Fix It
Add a validation step after every transformation, before sending to the destination. For HL7v2, validate against the destination system's expected message profile (not just the generic HL7 spec). For FHIR, validate against the relevant implementation guide profiles (US Core, Da Vinci, etc.) using a FHIR validator. For critical transforms, implement regression testing: maintain a library of input/expected-output message pairs and run them automatically before deploying any channel changes. This pairs naturally with CI/CD pipelines for integration channels.

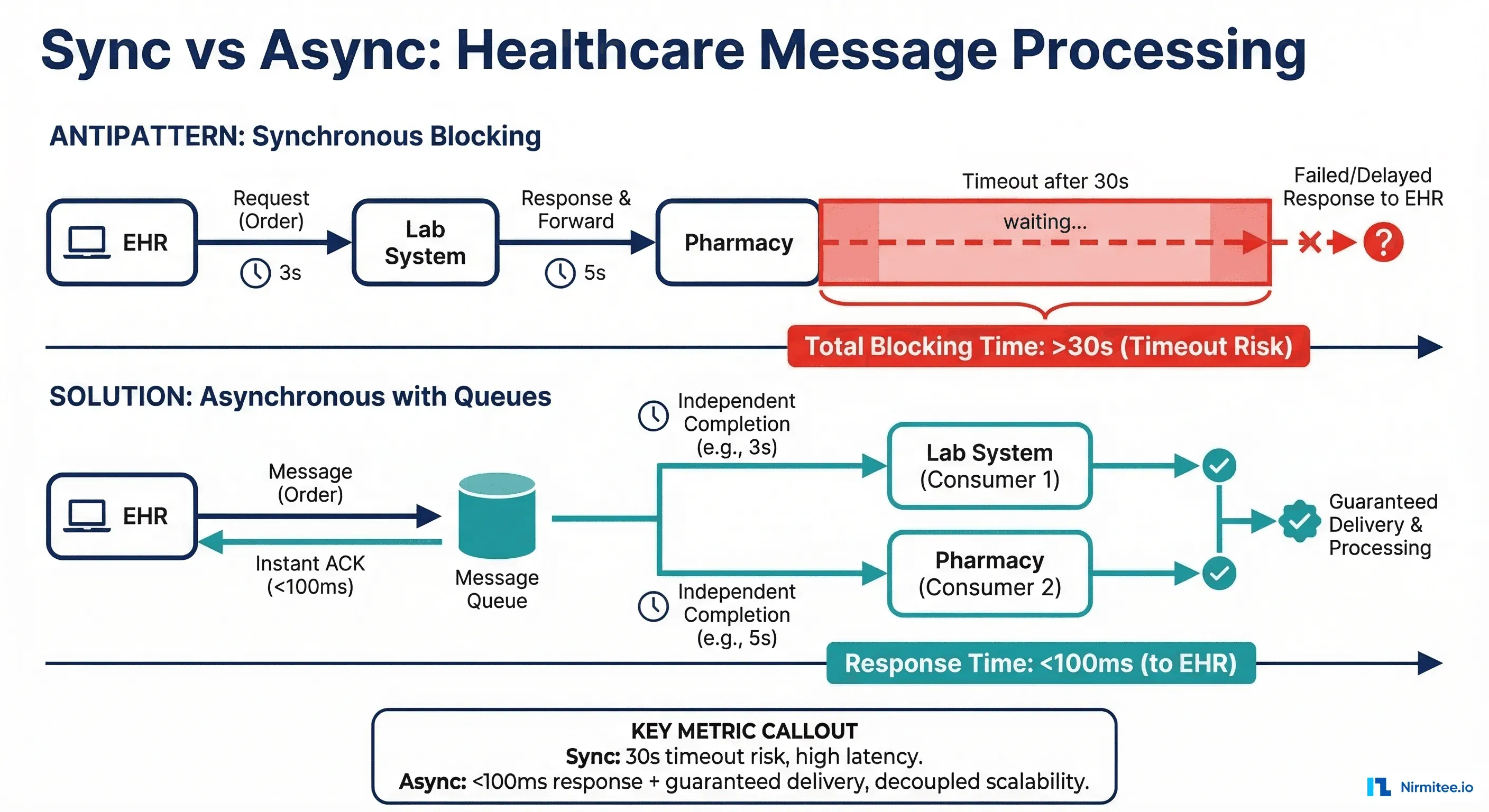

Antipattern 10: Synchronous Calls to Slow Downstream Systems
What It Looks Like

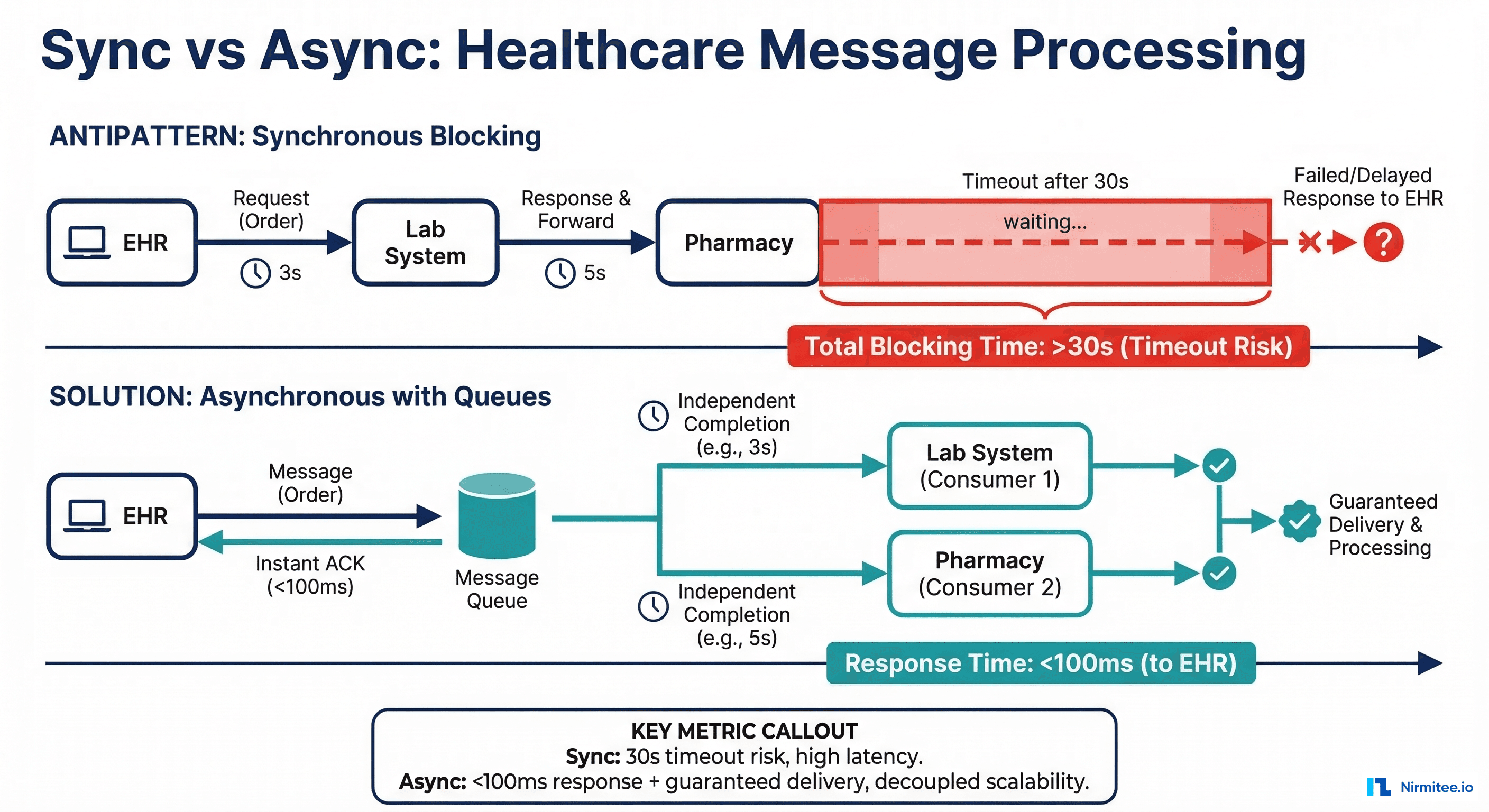

The integration engine makes a synchronous HTTP call or TCP connection to a downstream system and blocks until it gets a response. The downstream system is a legacy application that responds in 500ms on a good day and 30 seconds on a bad day. During peak hours, the integration engine's thread pool is exhausted waiting for responses, new messages can't be processed, and the entire integration platform grinds to a halt — because one slow downstream system is holding all the threads hostage.

Why It's Dangerous
This is the most common cause of integration platform-wide outages. One slow system takes down interfaces to all systems. The EHR can't send any messages — not just to the slow system, but to any system — because the thread pool is depleted. In production, we've seen a single slow PACS system cause a 45-minute blackout of all HL7 messaging for a 500-bed hospital. Lab results, medication orders, admission notifications — all stalled because of one overloaded imaging system.
How to Fix It
Decouple every downstream call with asynchronous messaging. Accept the message from the source, acknowledge receipt immediately (under 100ms), queue for delivery, and attempt delivery asynchronously. Set aggressive timeouts on downstream connections — 10 seconds max, with circuit breaker logic that stops attempting delivery after 3 consecutive failures. The circuit breaker prevents thread exhaustion. When the downstream system recovers, the circuit breaker closes and queued messages drain naturally. Monitor downstream response times as a leading indicator — if p95 latency exceeds 2 seconds, alert before it becomes a crisis.

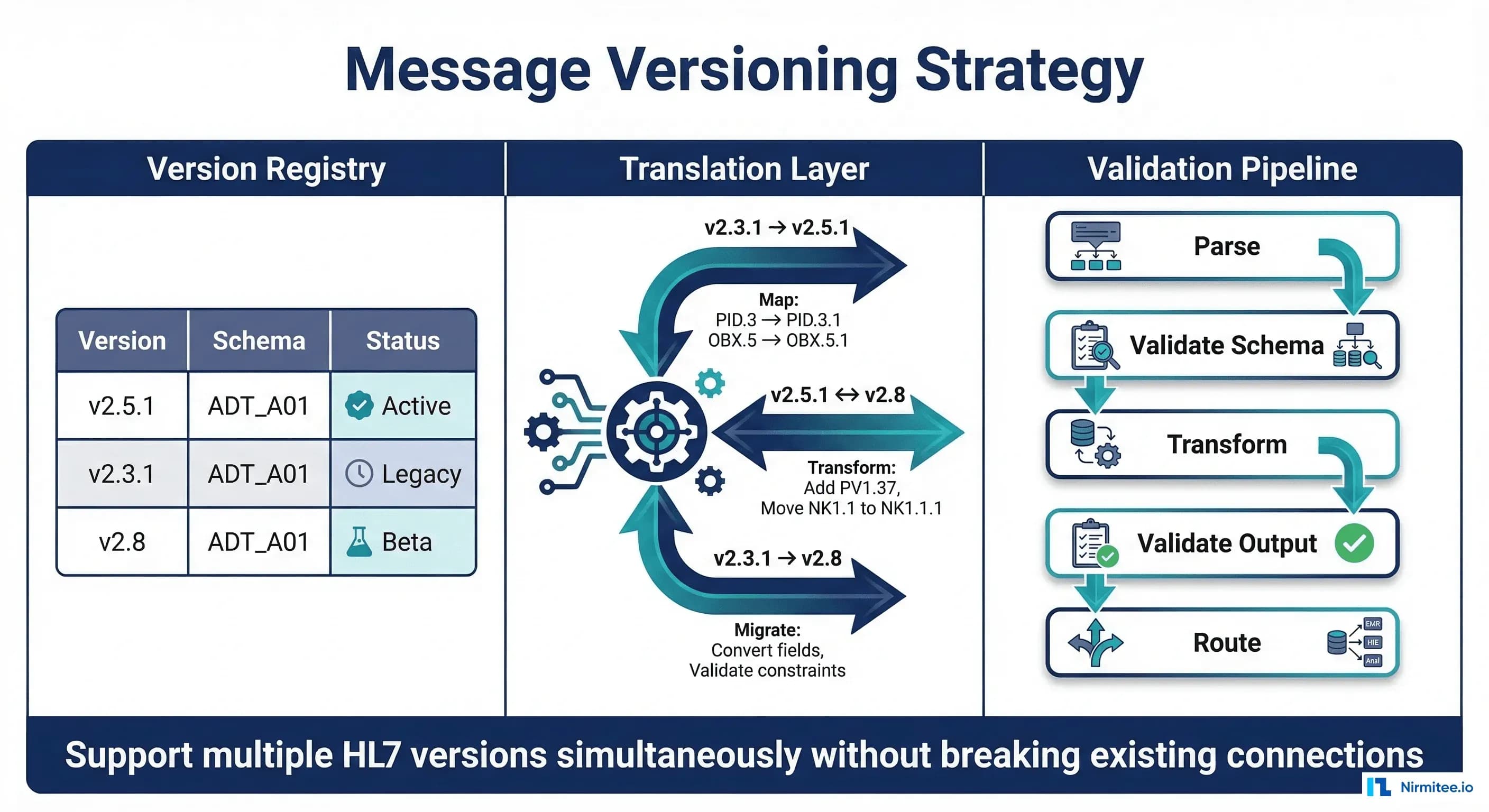

Antipattern 11: No Message Versioning
What It Looks Like
The integration platform supports HL7v2 messages from multiple source systems, each sending different versions — one sends v2.3.1, another sends v2.5.1, a third sends v2.8. But there's no explicit versioning strategy. Channels implicitly assume a version based on when they were built. When a source system upgrades its HL7 version (which happens during every EHR upgrade cycle), existing channels break because new fields appear, segment orders change, or data types are different. The integration team scrambles to patch channels during a go-live weekend.

Why It's Dangerous
EHR upgrades are unavoidable. Epic releases major versions annually. Oracle Health (Cerner) pushes quarterly updates. Every upgrade potentially changes HL7 message structure. Without a versioning strategy, each upgrade becomes an emergency integration project. According to KLAS Research, interface maintenance consumes 35-40% of integration team capacity at most health systems — and version-related rework is the largest single component of that maintenance burden.
How to Fix It

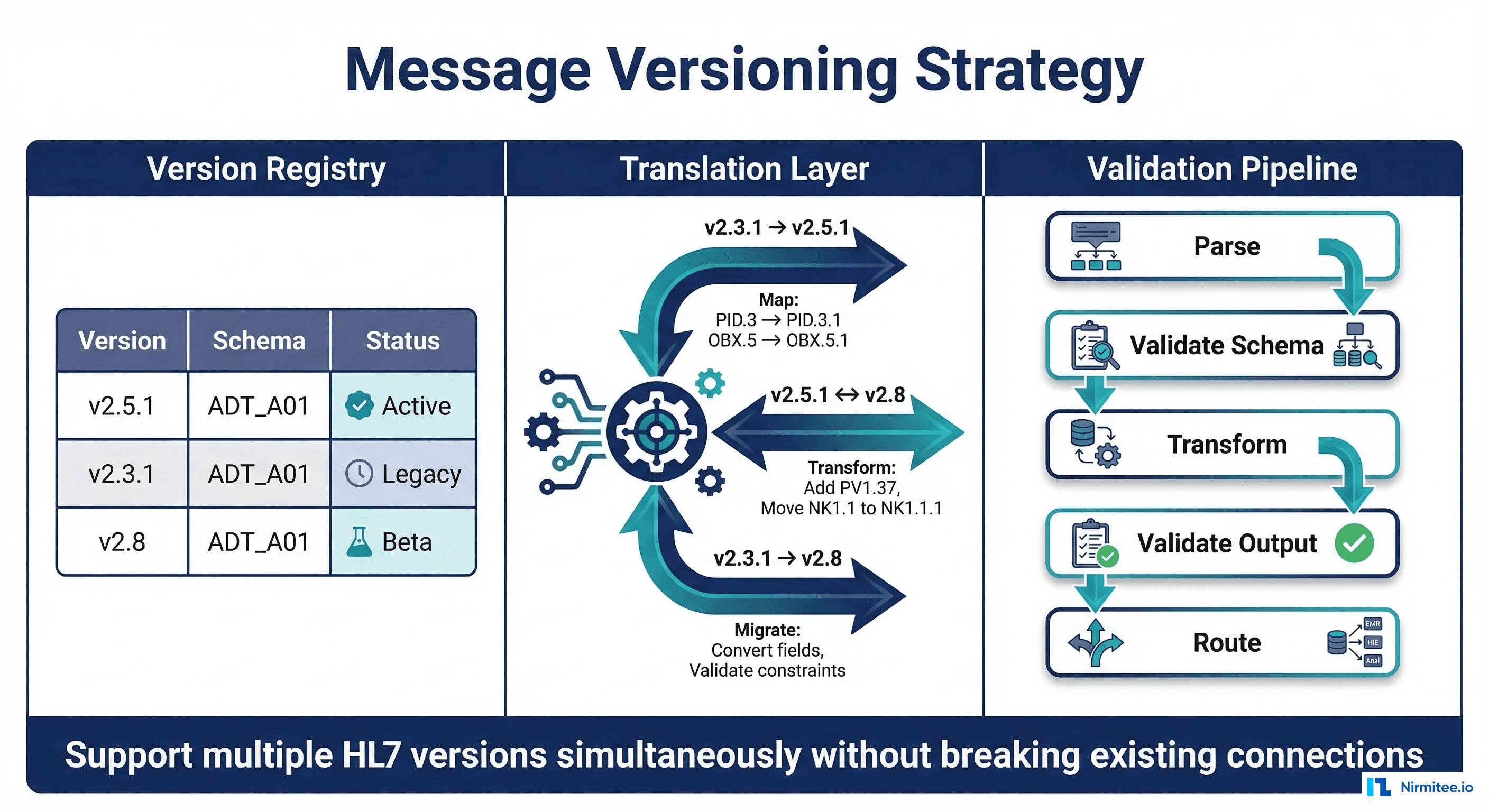

Implement a version-aware integration architecture. Every channel should declare which message version(s) it accepts. Use MSH-12 (Version ID) to route messages to version-appropriate processing pipelines. Maintain a version compatibility matrix documenting which source systems send which versions. When planning an EHR upgrade, review the compatibility matrix and build/update channels in advance, not during go-live. For HL7v2 to FHIR migrations, the version-aware architecture gives you a natural migration path: add a FHIR output alongside the v2 output, validate in parallel, then cut over.
Antipattern 12: Deploying Channel Changes Without Testing
What It Looks Like
An integration engineer makes a change to a production channel — a new field mapping, a filter update, a routing rule modification — and deploys it directly to production. No test environment. No regression testing. No validation with sample messages. The change works for the specific scenario that prompted it but breaks three other message flows nobody thought to check. The team discovers the breakage when clinicians report missing data the next morning.
Why It's Dangerous
Integration changes have a blast radius that's hard to predict. A filter that excludes messages from one source system might inadvertently match messages from another. A field mapping change that fixes formatting for one destination might corrupt data for a different destination sharing the same channel. In healthcare, "we'll test in production" means patients are the test subjects. A CHIME survey found that 72% of health systems experienced at least one clinical data loss event in the past year attributable to an integration change gone wrong.
How to Fix It
Build a proper integration testing pipeline. Minimum viable setup: (1) A non-production integration engine environment with channel configurations mirrored from production. (2) A library of test messages covering every message type and edge case for each channel. (3) A comparison tool that validates transformed output against expected results. (4) A deployment process that requires test passage before production promotion. For Mirth Connect, the channel export/import API makes environment synchronization straightforward. Invest in this infrastructure once; it pays back on every deployment.
The Antipattern Assessment Checklist
Use this checklist to assess your current integration platform against all 12 antipatterns. For each item, rate your organization: Green (addressed), Yellow (partially addressed), or Red (present and unmitigated).
| # | Antipattern | Key Question | Status |
|---|---|---|---|
| 1 | Point-to-Point Spaghetti | Do all interfaces route through a central integration engine? | |
| 2 | Polling Without Backpressure | Do consumers limit their intake based on processing capacity? | |
| 3 | No Idempotency | Can every consumer safely receive the same message twice? | |
| 4 | Timezone Mishandling | Are all timestamps stored in UTC with documented source timezone? | |
| 5 | Ignoring Z-Segments | Is every Z-segment explicitly mapped or documented as excluded? | |
| 6 | Hardcoded OIDs | Are OIDs managed in a central registry, not inline? | |
| 7 | No Dead Letter Queue | Do failed messages go to a monitored DLQ with replay capability? | |
| 8 | One-Size-Fits-All Messages | Are different message types processed in separate pipelines? | |
| 9 | No Post-Transform Validation | Is output validated against the destination's expected profile? | |
| 10 | Synchronous Blocking | Are downstream calls async with circuit breakers? | |
| 11 | No Message Versioning | Does the platform explicitly handle multiple HL7 versions? | |
| 12 | Untested Deployments | Are channel changes tested with regression suites before production? |
Prioritizing Your Fixes
You won't fix all 12 at once, and you shouldn't try. Here's a prioritization framework based on patient safety impact and implementation effort:
Fix immediately (high safety impact, moderate effort):
- Antipattern 7: No Dead Letter Queue — lost messages = lost clinical data
- Antipattern 3: No Idempotency — duplicate orders = patient harm risk
- Antipattern 10: Synchronous Blocking — single point of failure for all interfaces
Fix within 90 days (high impact, higher effort):
- Antipattern 1: Point-to-Point Spaghetti — foundational architecture improvement
- Antipattern 12: Untested Deployments — prevents future incidents
- Antipattern 9: No Post-Transform Validation — catches errors before they reach clinicians
Fix within 6 months (important but lower urgency):
- Antipattern 4: Timezone Mishandling — critical for multi-timezone organizations
- Antipattern 8: One-Size-Fits-All Messages — enables scaling and prioritization
- Antipattern 11: No Message Versioning — prepares for next EHR upgrade cycle
Address in next planning cycle:
- Antipattern 2: Polling Without Backpressure — important at scale
- Antipattern 5: Ignoring Z-Segments — often reveals hidden data dependencies
- Antipattern 6: Hardcoded OIDs — reduces maintenance burden over time
Measuring Improvement
As you address these antipatterns, track these key metrics to demonstrate ROI to leadership:
- Message loss rate: Target <0.001% (1 in 100,000). Most organizations start at 0.1-1%.
- Mean time to detection (MTTD): How long before a failed interface is noticed? Target: under 5 minutes. Most organizations: 2-4 hours.
- Mean time to recovery (MTTR): How long to restore a failed interface? Target: under 30 minutes. Most organizations: 2-8 hours.
- Integration-related help desk tickets: Track monthly volume. Expect 40-60% reduction after addressing the top 6 antipatterns.
- Channel deployment failure rate: Percentage of production deployments that cause incidents. Target: under 2%. Pre-testing: typically 15-25%.
Shipping healthcare software that scales requires deep domain expertise. See how our Healthcare Software Product Development practice can accelerate your roadmap. We also offer specialized Healthcare Interoperability Solutions services. Talk to our team to get started.
Frequently Asked QuestionsWhat integration engine should we use to avoid these antipatterns?
The antipatterns are architecture-level problems, not tool-specific. Mirth Connect, Rhapsody, and Iguana can all implement the patterns described here. The key is architecture decisions and operational discipline, not the specific engine. That said, if you're starting fresh, evaluate based on your team's skills, budget, and vendor support requirements.
How do these antipatterns apply to FHIR-based integrations?
Most apply directly. FHIR doesn't eliminate the need for idempotency (use If-None-Exist on creates), dead letter queues (FHIR Subscriptions can still fail), or post-transform validation (validate against US Core profiles). The mental model for healthcare integrations remains the same whether you're passing HL7v2 messages or FHIR resources.
What's the ROI of fixing these antipatterns?
Based on industry data: integration incidents cost health systems an average of $8,700 per hour in operational disruption (Ponemon Institute). A 500-bed hospital experiencing 2-3 integration outages per month at 2 hours each is spending $400,000-$600,000 annually on incident response alone — not counting downstream clinical and billing impacts. Fixing the top 6 antipatterns typically reduces incident frequency by 60-70%.
Should we fix these before or during a FHIR migration?
Before. A FHIR migration is a chance to implement these patterns from the start in your new architecture. But migrating while carrying these antipatterns means you'll reproduce them in FHIR. Fix the architecture first, then migrate the protocols.
Conclusion
Healthcare integration isn't rocket science — it's plumbing. But bad plumbing in a hospital has consequences that bad plumbing in other industries doesn't. Every antipattern in this playbook has a direct line to patient safety, clinical efficiency, or financial integrity.
The good news: none of these are unsolvable. They're well-understood patterns with well-understood solutions. The challenge is organizational will, not technical complexity. Start with the three highest-impact fixes (dead letter queues, idempotency, async patterns), measure the improvement, and use those results to justify the investment in fixing the rest.
If you're staring at a production integration platform with most of these antipatterns present — you're not alone. That's the state of most health system integration architectures we assess. The question isn't whether you have these problems. It's whether you're going to fix them proactively or wait for the next incident to force your hand.
