FHIR Terminology Services: SNOMED, LOINC, and RxNorm Mapping That Actually Works in Production

Part of our complete guide to understanding FHIR.

FHIR adoption is accelerating. Most major EHRs expose FHIR R4 APIs. But having a FHIR API does not mean having semantic interoperability. The dirty secret of healthcare data exchange is this: two systems can both speak FHIR perfectly and still completely misunderstand each other because they use different code systems, different versions of the same code system, or no standardized codes at all.

Terminology mapping is a core part of our FHIR integration services.

One hospital records "Type 2 Diabetes" as ICD-10 code E11.9. Another uses SNOMED CT 44054006. A third stores it as free text: "DM2." A lab system sends a glucose result with a local code GLU-FAST instead of the LOINC code 2345-7. A pharmacy uses NDC codes while your system expects RxNorm. Every one of these is a valid clinical representation, but without terminology services to bridge them, your analytics, AI models, and clinical decision support will produce wrong answers.

This guide covers the practical reality of FHIR terminology services in production: the code systems you must handle, the FHIR operations that make mapping work, how to build and deploy a terminology server, and the production challenges that no specification document prepares you for.

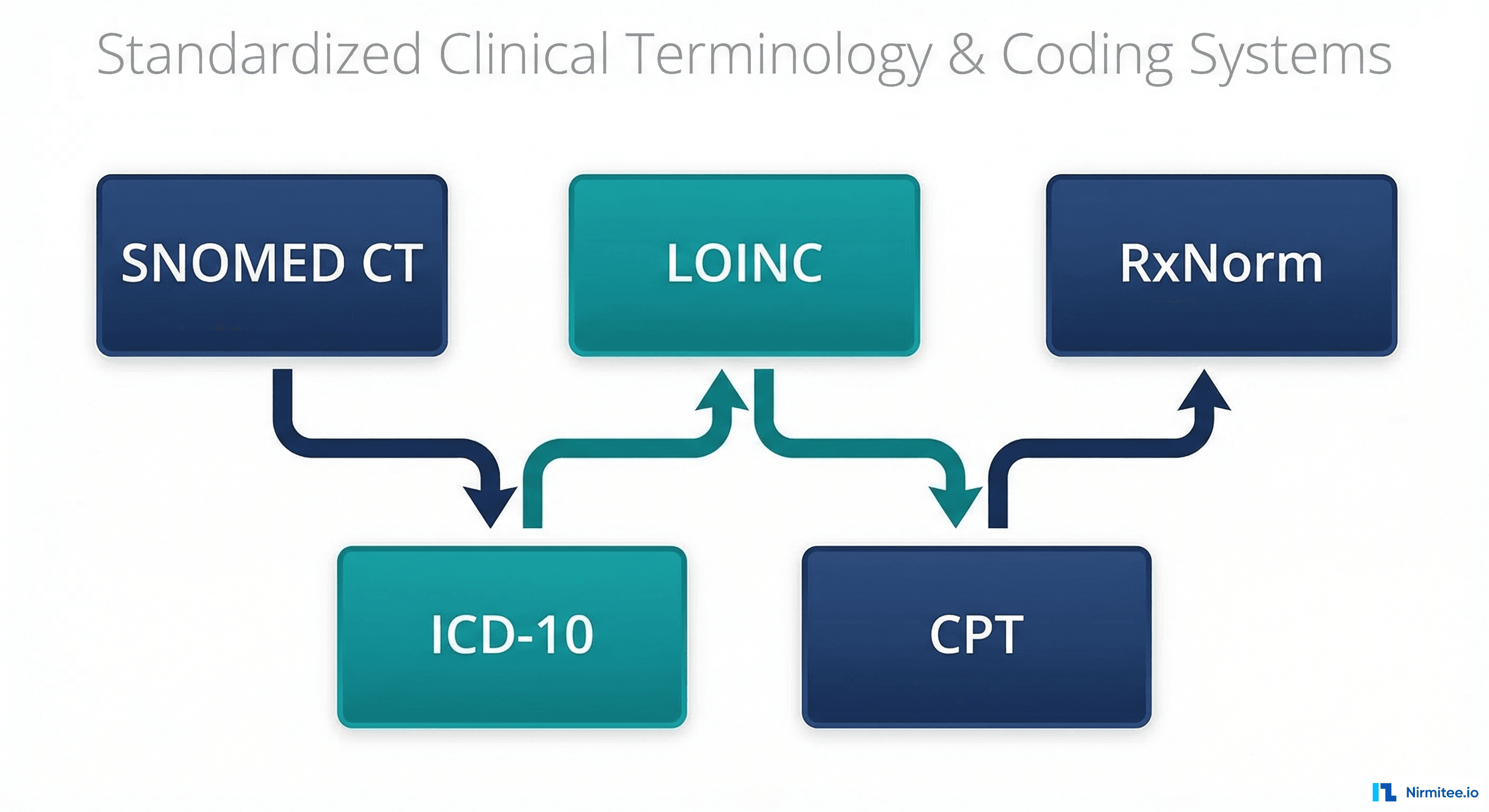

The Five Code Systems You Cannot Avoid

Healthcare uses dozens of coding systems, but five dominate production interoperability. Every integration you build will encounter all of them:

The critical insight is that these systems are not interchangeable. SNOMED CT is the clinical lingua franca — it captures clinical meaning with granularity no other system matches. ICD-10 is the billing lingua franca — required for claims but clinically imprecise. LOINC uniquely identifies what was measured. RxNorm uniquely identifies what was prescribed. CPT identifies what was done for payment purposes. That split is why a diagnosis often carries both a SNOMED CT and an ICD-10-CM coding, a pattern our FHIR Condition resource guide covers in detail.

In practice, a single patient encounter generates codes from all five systems: the diagnosis in SNOMED and ICD-10, the labs in LOINC, the medications in RxNorm, and the procedures in CPT. Your integration layer must handle all of them. For background on why this complexity exists, see our guide on True Interoperability in the World of Fragmented Data.

Related Reading

For more insights, explore our guides on Healthcare Data Standards Explained: SNOMED to CPT and FHIR in Modern Healthcare.

You may also find value in EHR Software Development Guide and Building a Healthtech App.

FHIR Terminology Operations: $translate, $lookup, $validate-code

FHIR defines three core terminology operations that every terminology server must implement:

$validate-code: Is This Code Valid?

The most basic operation — given a code and a code system, is it a valid, active concept?

# Validate that SNOMED code 44054006 exists and is active
GET /fhir/CodeSystem/$validate-code?
    url=http://snomed.info/sct&
    code=44054006

# Response
{
  "resourceType": "Parameters",
  "parameter": [
    {"name": "result", "valueBoolean": true},
    {"name": "display", "valueString": "Type 2 diabetes mellitus"},
    {"name": "version", "valueString": "http://snomed.info/sct/731000124108/version/20240301"}
  ]
}

# Validate against a specific ValueSet
GET /fhir/ValueSet/$validate-code?
    url=http://hl7.org/fhir/ValueSet/condition-code&
    system=http://snomed.info/sct&
    code=44054006

Use $validate-code at data ingestion to catch invalid codes before they enter your system. A surprising number of production feeds contain typos, deprecated codes, or codes from the wrong version.

$lookup: What Does This Code Mean?

Given a code, return its full details — display name, properties, designations (synonyms), and parent/child relationships:

# Look up LOINC code 4548-4 (HbA1c)
GET /fhir/CodeSystem/$lookup?
    system=http://loinc.org&
    code=4548-4

# Response includes:
{
  "resourceType": "Parameters",
  "parameter": [
    {"name": "name", "valueString": "LOINC"},
    {"name": "display", "valueString": "Hemoglobin A1c/Hemoglobin.total in Blood"},
    {"name": "property", "part": [
      {"name": "code", "valueCode": "COMPONENT"},
      {"name": "value", "valueString": "Hemoglobin A1c/Hemoglobin.total"}
    ]},
    {"name": "property", "part": [
      {"name": "code", "valueCode": "SYSTEM"},
      {"name": "value", "valueString": "Bld"}
    ]},
    {"name": "designation", "part": [
      {"name": "value", "valueString": "HbA1c"},
      {"name": "use", "valueCoding": {"code": "SHORTNAME"}}
    ]}
  ]
}

The $lookup operation is essential for display purposes and for understanding the semantic context of a code. LOINC properties like COMPONENT, SYSTEM, METHOD, and SCALE tell you exactly what a lab test measures and how. Those LOINC codes end up in Observation.code, and our FHIR Observation guide to vitals and lab results shows how they pair with UCUM units.

$translate: Map Between Code Systems

The most powerful and complex operation — translating a code from one system to another:

# Translate SNOMED diabetes to ICD-10
GET /fhir/ConceptMap/$translate?
    url=http://snomed.info/sct&
    code=44054006&
    system=http://snomed.info/sct&
    targetsystem=http://hl7.org/fhir/sid/icd-10-cm

# Response with mapped codes and equivalence
{
  "resourceType": "Parameters",
  "parameter": [
    {"name": "result", "valueBoolean": true},
    {"name": "match", "part": [
      {"name": "equivalence", "valueCode": "equivalent"},
      {"name": "concept", "valueCoding": {
        "system": "http://hl7.org/fhir/sid/icd-10-cm",
        "code": "E11.9",
        "display": "Type 2 diabetes mellitus without complications"
      }}
    ]},
    {"name": "match", "part": [
      {"name": "equivalence", "valueCode": "narrower"},
      {"name": "concept", "valueCoding": {
        "system": "http://hl7.org/fhir/sid/icd-10-cm",
        "code": "E11.65",
        "display": "Type 2 diabetes mellitus with hyperglycemia"
      }}
    ]}
  ]
}

Notice the equivalence field. This is where terminology mapping gets complex. A translation can be equivalent (1:1 match), broader (target is less specific), narrower (target is more specific), or relatedto (semantically related but not a direct match). Your application logic must handle all of these, and the right choice depends on the use case — billing requires ICD-10 specificity, while analytics may accept broader matches.

Building a Terminology Validation and Mapping Pipeline

Here is a production-ready Python pipeline that validates incoming FHIR resources and maps codes to standard terminology:

# terminology_pipeline.py
import logging
from dataclasses import dataclass, field
from typing import Optional
import httpx

logger = logging.getLogger("terminology")

TERMINOLOGY_SERVER = "https://tx.fhir.org/r4"  # Public FHIR tx server

@dataclass
class ValidationResult:
    code: str
    system: str
    is_valid: bool
    display: Optional[str] = None
    mapped_codes: list = field(default_factory=list)
    warnings: list = field(default_factory=list)

class TerminologyService:
    """FHIR Terminology Service client with caching."""

    def __init__(self, base_url: str = TERMINOLOGY_SERVER):
        self.base_url = base_url.rstrip('/')
        self.client = httpx.Client(timeout=10.0)
        self._cache = {}  # In production, use Redis

    def validate_code(self, system: str, code: str) -> ValidationResult:
        """Validate a code against its code system."""
        cache_key = f"validate:{system}:{code}"
        if cache_key in self._cache:
            return self._cache[cache_key]

        try:
            resp = self.client.get(
                f"{self.base_url}/CodeSystem/$validate-code",
                params={"url": system, "code": code}
            )
            resp.raise_for_status()
            params = resp.json().get("parameter", [])

            is_valid = False
            display = None
            for p in params:
                if p.get("name") == "result":
                    is_valid = p.get("valueBoolean", False)
                elif p.get("name") == "display":
                    display = p.get("valueString")

            result = ValidationResult(
                code=code, system=system,
                is_valid=is_valid, display=display
            )
            self._cache[cache_key] = result
            return result

        except Exception as e:
            logger.warning(f"Validation failed for {system}|{code}: {e}")
            return ValidationResult(
                code=code, system=system, is_valid=False,
                warnings=[f"Validation service error: {str(e)}"]
            )

    def translate_code(self, source_system: str, code: str,
                       target_system: str) -> list[dict]:
        """Translate a code from one system to another."""
        cache_key = f"translate:{source_system}:{code}:{target_system}"
        if cache_key in self._cache:
            return self._cache[cache_key]

        try:
            resp = self.client.get(
                f"{self.base_url}/ConceptMap/$translate",
                params={
                    "system": source_system,
                    "code": code,
                    "targetsystem": target_system
                }
            )
            resp.raise_for_status()
            params = resp.json().get("parameter", [])

            mappings = []
            for p in params:
                if p.get("name") == "match":
                    parts = {pp["name"]: pp for pp in p.get("part", [])}
                    concept = parts.get("concept", {}).get("valueCoding", {})
                    equivalence = parts.get("equivalence", {}).get("valueCode", "relatedto")
                    if concept:
                        mappings.append({
                            "code": concept.get("code"),
                            "system": concept.get("system"),
                            "display": concept.get("display"),
                            "equivalence": equivalence
                        })

            self._cache[cache_key] = mappings
            return mappings

        except Exception as e:
            logger.warning(f"Translation failed: {source_system}|{code} -> {target_system}: {e}")
            return []

    def lookup_code(self, system: str, code: str) -> dict:
        """Look up detailed information about a code."""
        try:
            resp = self.client.get(
                f"{self.base_url}/CodeSystem/$lookup",
                params={"system": system, "code": code}
            )
            resp.raise_for_status()
            return resp.json()
        except Exception as e:
            logger.warning(f"Lookup failed for {system}|{code}: {e}")
            return {}


class FHIRResourceValidator:
    """Validate and enrich FHIR resources with standardized terminology."""

    EXPECTED_SYSTEMS = {
        "Condition": "http://snomed.info/sct",
        "Observation": "http://loinc.org",
        "MedicationRequest": "http://www.nlm.nih.gov/research/umls/rxnorm",
        "Procedure": "http://snomed.info/sct",
    }

    BILLING_SYSTEMS = {
        "Condition": "http://hl7.org/fhir/sid/icd-10-cm",
        "Procedure": "http://www.ama-assn.org/go/cpt",
    }

    def __init__(self, terminology_service: TerminologyService):
        self.tx = terminology_service

    def validate_resource(self, resource: dict) -> dict:
        """Validate coding in a FHIR resource and return enriched version."""
        resource_type = resource.get("resourceType")
        report = {
            "resourceType": resource_type,
            "id": resource.get("id"),
            "validations": [],
            "mappings_added": [],
            "warnings": [],
            "score": 0.0
        }

        # Extract all codings from the resource
        codings = self._extract_codings(resource)
        if not codings:
            report["warnings"].append("No coded values found in resource")
            return report

        expected_system = self.EXPECTED_SYSTEMS.get(resource_type)
        has_standard_code = False
        valid_codes = 0

        for coding_path, coding in codings:
            result = self.tx.validate_code(coding["system"], coding["code"])
            report["validations"].append({
                "path": coding_path,
                "system": coding["system"],
                "code": coding["code"],
                "valid": result.is_valid,
                "display": result.display
            })

            if result.is_valid:
                valid_codes += 1
                if coding["system"] == expected_system:
                    has_standard_code = True

                # Enrich with display name if missing
                if not coding.get("display") and result.display:
                    coding["display"] = result.display

            # Add billing code mapping if not present
            billing_system = self.BILLING_SYSTEMS.get(resource_type)
            if (billing_system and
                coding["system"] == expected_system and
                result.is_valid):
                mappings = self.tx.translate_code(
                    coding["system"], coding["code"], billing_system
                )
                for m in mappings:
                    if m["equivalence"] in ("equivalent", "narrower"):
                        report["mappings_added"].append(m)

        # Calculate quality score
        total = len(codings)
        report["score"] = round(valid_codes / total, 2) if total else 0
        if not has_standard_code:
            report["warnings"].append(
                f"Missing standard code system ({expected_system}) for {resource_type}"
            )

        return report

    def _extract_codings(self, resource: dict,
                         path: str = "") -> list[tuple[str, dict]]:
        """Recursively extract all coding objects from a FHIR resource."""
        results = []
        if isinstance(resource, dict):
            if "system" in resource and "code" in resource:
                results.append((path, resource))
            for key, value in resource.items():
                results.extend(
                    self._extract_codings(value, f"{path}.{key}")
                )
        elif isinstance(resource, list):
            for i, item in enumerate(resource):
                results.extend(
                    self._extract_codings(item, f"{path}[{i}]")
                )
        return results


# Example usage
if __name__ == "__main__":
    tx = TerminologyService()
    validator = FHIRResourceValidator(tx)

    # Validate a Condition resource
    condition = {
        "resourceType": "Condition",
        "id": "example-diabetes",
        "code": {
            "coding": [
                {
                    "system": "http://snomed.info/sct",
                    "code": "44054006",
                    "display": "Type 2 diabetes mellitus"
                }
            ]
        },
        "subject": {"reference": "Patient/123"}
    }

    report = validator.validate_resource(condition)
    print(f"Validation score: {report['score']}")
    print(f"Warnings: {report['warnings']}")
    print(f"Mappings added: {report['mappings_added']}")

This pipeline validates every code in a FHIR resource, enriches display names, maps clinical codes to billing codes, and generates a quality score. In production, replace the in-memory cache with Redis and add batch processing for high-throughput scenarios.

Terminology Servers: HAPI FHIR vs. Ontoserver vs. Snowstorm

You have three realistic options for running a terminology server in production:

For most teams, HAPI FHIR is the practical starting point. It handles all code systems, integrates with your existing FHIR infrastructure, and requires no licensing fees. Ontoserver is worth the investment if terminology is core to your product — its ML-assisted mapping and CSIRO-maintained content are genuinely superior. Snowstorm is ideal if your use case is SNOMED-heavy (clinical NLP, decision support) and you need SNOMED's full hierarchy and relationship graph.

The ConceptMap Resource: Defining Your Mappings

The FHIR ConceptMap resource is how you define and maintain code-to-code mappings. Every production system needs custom ConceptMaps for local codes that do not exist in standard terminologies:

{
  "resourceType": "ConceptMap",
  "id": "local-to-snomed-conditions",
  "url": "https://your-org.com/fhir/ConceptMap/local-to-snomed",
  "name": "LocalToSNOMEDConditions",
  "status": "active",
  "sourceUri": "https://your-org.com/fhir/CodeSystem/local-conditions",
  "targetUri": "http://snomed.info/sct",
  "group": [
    {
      "source": "https://your-org.com/fhir/CodeSystem/local-conditions",
      "target": "http://snomed.info/sct",
      "element": [
        {
          "code": "DM2",
          "display": "Diabetes Type 2",
          "target": [
            {
              "code": "44054006",
              "display": "Type 2 diabetes mellitus",
              "equivalence": "equivalent"
            }
          ]
        },
        {
          "code": "HTN",
          "display": "High Blood Pressure",
          "target": [
            {
              "code": "38341003",
              "display": "Hypertensive disorder",
              "equivalence": "equivalent"
            }
          ]
        },
        {
          "code": "CKD-STAGE3",
          "display": "Chronic Kidney Disease Stage 3",
          "target": [
            {
              "code": "433144002",
              "display": "Chronic kidney disease stage 3",
              "equivalence": "equivalent"
            },
            {
              "code": "731000119105",
              "display": "Chronic kidney disease stage 3 due to type 2 diabetes mellitus",
              "equivalence": "narrower",
              "comment": "Use when diabetes is the underlying cause"
            }
          ]
        }
      ]
    }
  ]
}

ConceptMaps are version-controlled FHIR resources. Treat them like code: review changes, test mappings, and deploy through your CI/CD pipeline. The related considerations for managing terminology across multiple EHR systems are covered in our guide on Interoperability Standards in Healthcare.

Production Challenges Nobody Warns You About

1. Local Codes That Don't Map

Every hospital has local codes. Lab instruments generate proprietary codes. Legacy systems use internal identifiers. Expect 5-15% of incoming codes to have no standard mapping. Your pipeline must handle this gracefully:

• Log unmapped codes with frequency counts
• Queue them for manual review by a clinical terminologist
• Apply a "best effort" strategy: fuzzy text matching against standard code displays, NLP-based concept extraction, or flagging for human review
• Never silently drop unmapped codes — store the original code alongside any attempted mapping

2. Free-Text Entries With No Codes

A significant percentage of clinical data — estimates range from 15-30% — arrives as free text with no structured codes. A physician types "possible TIA" instead of selecting a SNOMED code. Your options:

• Clinical NLP: Use tools like medspaCy, Amazon Comprehend Medical, or Google Healthcare NLP API to extract concepts from text and map them to standard codes
• Suggestion systems: Present the free text to a clinician with suggested codes for confirmation
• Accept and flag: Store the free text, flag it as uncoded, and include it in data quality reports

For comprehensive approaches to extracting structured data from clinical text, see our guide on Designing AI-Driven Clinical Decision Support Systems.

3. Multiple Mappings With Different Specificity

SNOMED code 44054006 (Type 2 diabetes mellitus) maps to multiple ICD-10 codes: E11.9 (without complications), E11.65 (with hyperglycemia), E11.69 (with other specified complication). Which one do you pick? It depends:

• For billing: You need the most specific code that the clinical documentation supports. E11.9 is the safe default, but specificity affects reimbursement.
• For analytics: The broader code (E11) groups all Type 2 diabetes regardless of complications.
• For clinical decision support: The SNOMED code is preferred because its hierarchy and relationships are richer.

4. Version Skew

SNOMED CT releases twice per year. LOINC releases annually. ICD-10 updates annually with new codes. A code that was valid in the January 2025 release might be deprecated by July 2025. Your terminology server must:

• Track which version each code was validated against
• Support multiple concurrent versions (you will receive data coded against different versions)
• Alert when deprecated codes appear in incoming data
• Provide migration paths from old codes to their replacements

5. Licensing Complexity

SNOMED CT requires a national license (free in the US through NLM's UMLS agreement). LOINC is free but requires registration. CPT is proprietary and expensive — the AMA charges license fees for any use beyond individual lookup. RxNorm is free. ICD-10 is free. Your terminology server deployment must respect these licensing terms, especially if you distribute terminology content to customers.

Building a Terminology Quality Dashboard

# terminology_dashboard.py
from dataclasses import dataclass
from collections import Counter
from typing import Optional
import json

@dataclass
class TerminologyMetrics:
    total_resources: int = 0
    coded_resources: int = 0
    valid_codes: int = 0
    invalid_codes: int = 0
    unmapped_codes: int = 0
    free_text_only: int = 0
    system_coverage: dict = None
    unmapped_code_freq: dict = None

    def __post_init__(self):
        self.system_coverage = self.system_coverage or {}
        self.unmapped_code_freq = self.unmapped_code_freq or {}

    @property
    def coding_rate(self) -> float:
        return self.coded_resources / self.total_resources if self.total_resources else 0

    @property
    def validation_rate(self) -> float:
        total = self.valid_codes + self.invalid_codes
        return self.valid_codes / total if total else 0

    def to_report(self) -> dict:
        return {
            "summary": {
                "total_resources": self.total_resources,
                "coding_rate": f"{self.coding_rate:.1%}",
                "validation_rate": f"{self.validation_rate:.1%}",
                "free_text_rate": f"{self.free_text_only / self.total_resources:.1%}" if self.total_resources else "0%",
            },
            "by_system": self.system_coverage,
            "top_unmapped": dict(
                Counter(self.unmapped_code_freq).most_common(20)
            ),
            "action_items": self._generate_actions()
        }

    def _generate_actions(self) -> list:
        actions = []
        if self.coding_rate < 0.9:
            actions.append({
                "priority": "high",
                "action": f"{self.free_text_only} resources have free-text only. "
                          f"Run NLP pipeline to extract codes."
            })
        if self.invalid_codes > 0:
            actions.append({
                "priority": "medium",
                "action": f"{self.invalid_codes} invalid codes detected. "
                          f"Review for typos or deprecated codes."
            })
        top_unmapped = Counter(self.unmapped_code_freq).most_common(5)
        if top_unmapped:
            codes = ", ".join(f"{code} ({count}x)" for code, count in top_unmapped)
            actions.append({
                "priority": "medium",
                "action": f"Create ConceptMap entries for frequent unmapped codes: {codes}"
            })
        return actions

This dashboard aggregates terminology quality metrics across your entire FHIR data store. The action items are the critical output — they tell your team exactly what to fix. For related data quality practices, our guide on Medallion Architecture for Healthcare Data covers the broader data pipeline context.

Frequently Asked Questions

Do I need my own terminology server, or can I use a public one?

For development and testing, public terminology servers like tx.fhir.org or the NLM's FHIR terminology service work fine. For production, you need your own. Reasons: latency (public servers add 200-500ms per call), availability (no SLA), custom ConceptMaps (you cannot upload your local code mappings to a public server), and PHI concerns (some $translate calls may leak clinical context).

How do I handle codes from systems I do not recognize?

Store them as-is with the original system URI. Log the unknown system URI for analysis. Many EHRs use non-standard or proprietary system URIs that do not match the canonical FHIR URIs. Build a system URI normalization layer that maps common variants (e.g., urn:oid:2.16.840.1.113883.6.96 is SNOMED CT's OID, equivalent to http://snomed.info/sct).

What is the difference between CodeSystem and ValueSet in FHIR?

A CodeSystem defines all codes in a terminology (all 350,000+ SNOMED concepts). A ValueSet defines a subset of codes from one or more CodeSystems that are valid for a specific use (e.g., "conditions suitable for a problem list" might include SNOMED condition codes but exclude body structure codes). Use ValueSets for validation — they tell you not just whether a code exists, but whether it is appropriate for the field where it appears.

How do I map free-text medication names to RxNorm?

NLM provides the RxNorm API (rxnav.nlm.nih.gov) with an approximateTerm endpoint that does fuzzy matching. Send the free-text medication name, and it returns candidate RxNorm codes ranked by confidence. For higher accuracy, use Amazon Comprehend Medical's medication extraction or the RxNorm Normalization tool. Always have a clinical pharmacist review automated mappings before production use.

How often should I update my terminology server content?

Update SNOMED CT with each semi-annual release (January and July). Update LOINC with each annual release (typically June). Update RxNorm monthly — new drugs are added frequently. Update ICD-10 annually (October 1 in the US). Create a calendar and automate the import process. Version skew between your terminology server and the data you receive is a constant source of validation failures.

Conclusion

Terminology services are not glamorous, but they are the foundation of healthcare data quality. Without proper code validation, mapping, and normalization, your FHIR integrations will exchange data that looks structured but carries inconsistent meaning. Your AI models will train on noisy data. Your analytics will produce misleading results.

Start with the basics: deploy a HAPI FHIR terminology server, load SNOMED CT and LOINC, validate incoming codes, and build a quality dashboard that tracks your coding rate and unmapped code frequency. Then iterate: add ConceptMaps for your most common local codes, integrate NLP for free-text extraction, and build the feedback loop that turns terminology gaps into resolved mappings.

The goal is not perfection — it is measurable, improving data quality that your downstream applications can rely on. For a broader perspective on building reliable healthcare data foundations, see our guide on The Mental Model for Healthcare Integrations.
