Quick answer: IoT sensors extend hospital asset tracking from "where is it" to "what state is it in". Five sensor types do most of the work: BLE beacons for live location, temperature and humidity loggers for vaccine, blood bank, and lab cold chain, door and contact sensors for storage access, current and vibration sensors for utilisation and early fault detection, and gateways that carry all of it over Wi-Fi, BLE, or LoRa into the asset management platform. In Indian hospitals the two deployment decisions that matter most are UPS-backed power for sensors and gateways, and choosing LoRa or proprietary low-power radio where Wi-Fi coverage is uneven.
IoT sensors turn hospital asset tracking from a periodic inventory exercise into a continuous operational feed. By connecting medical equipment, storage units, and other assets to sensors, a hospital can monitor location, movement, utilisation, and environmental conditions all day, and route exceptions to the people who need to act. This guide covers what each sensor type does, where it earns its cost, how the data reaches the equipment record, and what is different about deploying in India. It is written for biomedical engineers, IT directors, and operations heads.
Reviewed by the Assetly product team at Nirmitee.io. Last updated August 2026.
Hospital Asset Tracking Is Moving Beyond Location
Traditional hospital asset tracking answers one question: where is the equipment? IoT widens that considerably. A hospital can now see not only where an infusion pump or a vaccine refrigerator is, but its temperature, whether the door was opened at 2 a.m., how many hours it ran this week, and whether its compressor is drawing more current than it did last month. Instead of periodic physical checks and manually updated spreadsheets, biomedical and operations teams receive the data directly from the equipment and its surroundings.

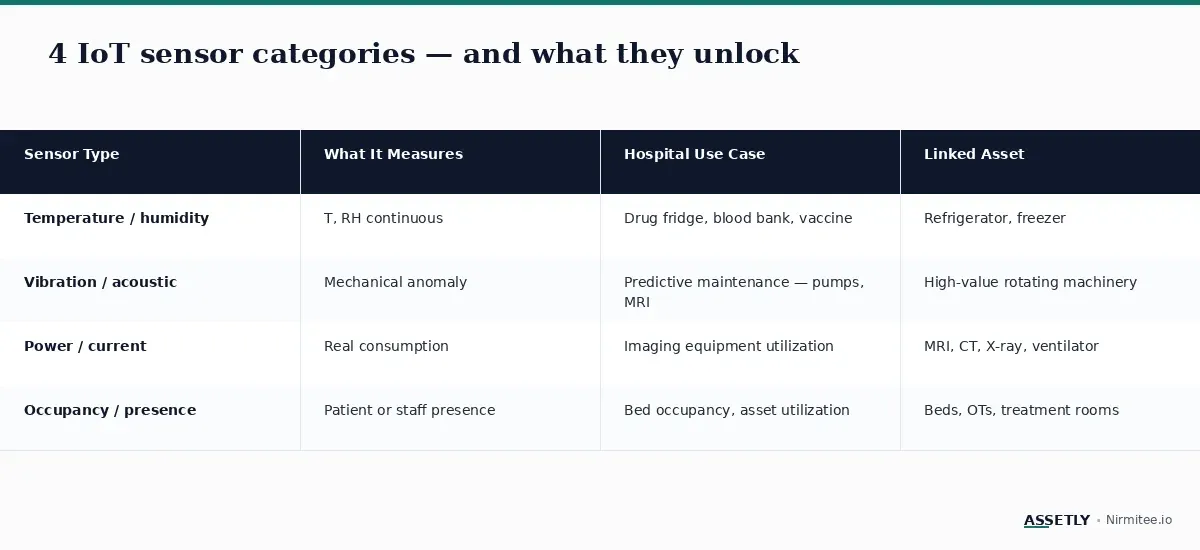

The Sensors Hospitals Actually Deploy
| Sensor | What It Measures | Where It Goes | Typical Radio |
|---|---|---|---|
| BLE beacon | Live position, movement | Infusion pumps, portable monitors, wheelchairs, ventilators, transport equipment | BLE to ceiling gateways |
| Temperature / humidity logger | Continuous readings, excursion alarms | Vaccine and drug fridges, blood bank refrigerators, plasma and lab freezers, OT and CSSD stores | LoRa, Wi-Fi, or BLE |
| Door / contact sensor | Open-close events, duration | Cold-chain units, narcotics cabinets, equipment stores | LoRa or BLE |
| Current (CT clamp) sensor | Power draw, run-hours | Dialysis machines, imaging consoles, autoclaves, compressors | Wi-Fi or LoRa |
| Vibration / condition sensor | Vibration signature, temperature at bearing | Chillers, medical air and vacuum plant, large motors | LoRa or wired to gateway |
| Gateway | Aggregates and forwards | One per floor cluster or plant room | Ethernet / PoE uplink |
Most hospitals start with two of these: BLE beacons on the mobile fleet and temperature loggers on the cold chain. Those two have the clearest payback and the least dependence on the rest of the estate. The tag comparison covers when BLE is the right layer versus UHF RFID.
How IoT Sensors Work In Hospital Asset Tracking
A sensor reads the asset or its environment and transmits over Wi-Fi, BLE, LoRa, or a proprietary low-power protocol to a gateway. The gateway publishes to an MQTT broker or an HTTP webhook. The asset management platform ingests the stream, attaches each reading to the linked equipment record, and applies rules: thresholds, geofences, inactivity timers, and maintenance triggers. The sensor-to-asset link should be configurable in the platform, not hard-wired to one sensor vendor, or the hospital is locked in at the first hardware refresh.
Once linked, the equipment record shows current or last-known location, movement, temperature or humidity, usage status, maintenance flags, open alerts, and history in one place. The same record already holds PM, calibration, and AMC data, which is what makes the sensor data useful rather than another dashboard. The connected equipment record guide covers that side.
Real-Time Location Of Medical Equipment
The most common IoT application is live visibility of mobile equipment. Infusion pumps, wheelchairs, portable monitors, and ventilators move between departments several times a day. If those movements are not captured, nurses and biomedical staff spend over 30 minutes per shift looking for equipment. BLE beacons on the mobile fleet and gateways in ceilings give a live position on a floor plan; Assetly customers locate any tagged asset in under 30 seconds. In a large hospital with thousands of assets across multiple floors, this is where the first payback comes from, and it is the feed that powers a nurse call integration that tells the responding nurse where the nearest available pump is.

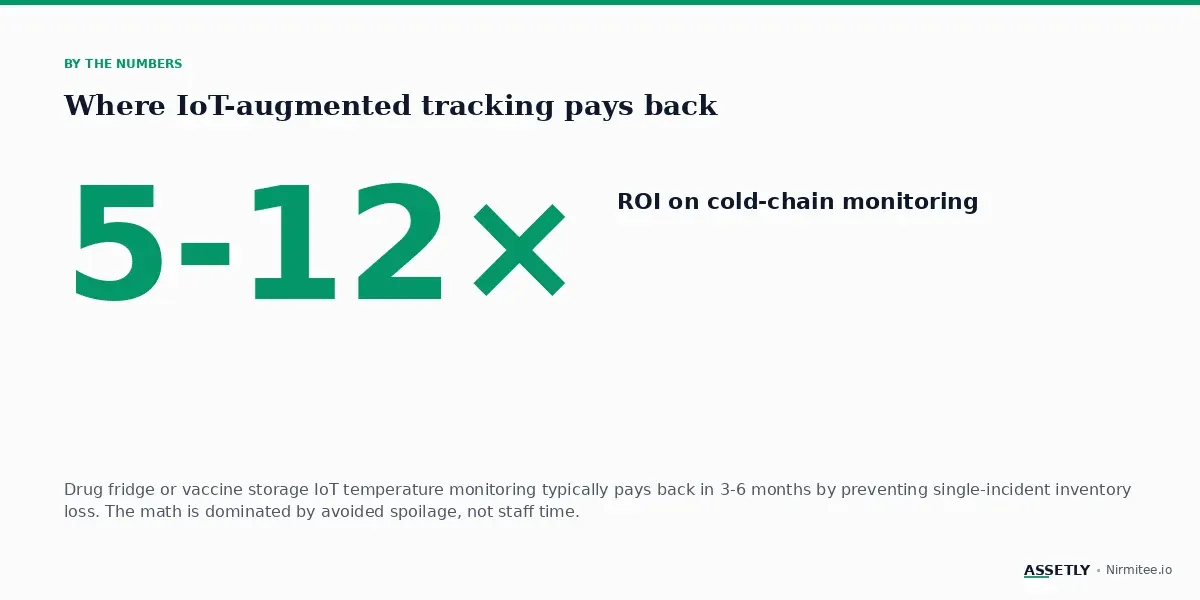

Cold Chain: Temperature And Humidity Monitoring
Drug refrigerators, vaccine storage, blood bank refrigerators, plasma freezers, and lab freezers are where a single missed excursion costs more than the sensor programme. The target ranges are well defined: vaccines and most refrigerated drugs at 2-8 °C, whole blood and packed cells at 2-6 °C, plasma at -18 °C or below (check the specific product and your blood bank licence conditions). Manual twice-daily readings cannot show what happened between readings, and a fridge that failed at 11 p.m. is discovered at 8 a.m. with the stock already lost.
A logger with a probe in a glycol bottle (so it reads product temperature, not air temperature) sends readings every few minutes. The platform alarms on threshold breach, on rate of change, and on door-open duration, and escalates by SMS or app if the first alert is not acknowledged. The record keeps a continuous log, which is what NABH assessors and blood bank inspectors ask to see. This is the clearest example of IoT extending asset management beyond location, and usually the second thing a hospital deploys after BLE.
Better Visibility Into Equipment Utilisation
Hospitals know how many devices they own and have little idea how often they run. A current clamp on a dialysis machine or a movement count on a BLE-tagged pump gives actual run-hours. The typical finding is one department reporting a shortage while identical equipment sits idle elsewhere. Utilisation data turns the capital request into a redistribution, which is where much of the ₹35-80 lakh in year-1 savings that Assetly deployments typically see comes from. It also feeds AMC right-sizing: a machine running 200 hours a year does not need the same contract as one running 2,000.
Supporting Preventive And Condition-Based Maintenance
Vibration and current data on plant and large equipment show drift before failure: a compressor drawing 15% more current, a chiller bearing running hot, an autoclave cycle taking longer than it did last quarter. Linked to the maintenance history, that gives the biomedical team a reason to inspect before the breakdown ticket arrives. The objective is not to replace the PM calendar. It is to add a condition layer on the equipment where a failure cancels procedures, and to leave calendar-based PM in place everywhere else.
Faster Alerts And Better Response
The platform raises an alert when a defined condition occurs and attaches it to the asset record so the responder has context. The rules that earn their keep:
- Temperature outside range, or rate of change that predicts a breach
- Door open longer than a set duration on a cold-chain unit or controlled cabinet
- Equipment leaving a defined zone (a ventilator leaving the ICU floor, a pump leaving the building)
- Prolonged inactivity on high-value mobile equipment
- Abnormal current or vibration on plant
- PM or calibration falling due on an asset that is currently in use
Alert fatigue is the main failure mode. Start with the cold chain and geofence rules, tune thresholds for two weeks, then add the rest.
IoT, RFID, BLE, And QR Codes Work Together
No hospital should pick one technology for every asset. QR codes give cheap identification and manual verification. UHF RFID gives fast bulk counting at portals. BLE gives live position. IoT sensors add condition and environment. A stationary device needs a QR tag. A frequently moving pump justifies BLE. A drug refrigerator carries a QR tag for identity and a temperature logger for its contents. Our RFID vs barcode comparison gives the cost thresholds for the tracking layers, and the 16-week implementation plan shows how the sensor layer slots in after the register is live.
What Is Different About Deploying In Indian Hospitals
- Power reliability. Sensors and gateways need UPS-backed power. Otherwise the sensor network fails during the same outage that creates the cold-chain risk, which is the one moment you need it.
- Connectivity. Wi-Fi coverage in older blocks is uneven. LoRa or proprietary low-power radio deploys more reliably than Wi-Fi-dependent sensors for cold chain and plant; keep BLE for the mobile fleet where gateway density is planned anyway.
- Mixed estates. A new IP-ready block next to a 15-year-old wing. Start in the new block, use the results to justify the retrofit.
- Accreditation evidence. NABH and blood bank licensing both expect continuous temperature records with alarm logs; a sensor programme produces them as a by-product. One 120-bed specialty hospital running Assetly cut NABH audit prep from 4 weeks to 4 days once its records reconciled automatically.
- Vendor lock-in. Buy sensors that publish standard MQTT or HTTP payloads. Closed sensor-plus-dashboard bundles cannot feed the equipment record.
What Hospitals Should Consider Before Deploying IoT Sensors
IoT asset tracking is not only a hardware project. Plan for network coverage and gateway placement, sensor battery life (most BLE beacons and LoRa loggers run 2-5 years), security (sensors on a segmented VLAN, never on the patient-monitoring network), integration with the existing asset record, and who acts on each alert. The last one decides whether the programme works. A temperature alarm with no named responder at 2 a.m. is a log entry, not a saved vaccine stock.
Above all, avoid creating another isolated dashboard. Sensor data is worth having only when it sits on the same record as maintenance, calibration, contracts, and history. Assetly ingests sensor streams into the equipment record and ships connectors for HIS (HL7) and ERP (SAP, Tally, Oracle), so the sensor programme extends the register rather than competing with it.
From Asset Tracking To Asset Intelligence
The biggest change IoT brings is the move from periodic to continuous information. A register tells the hospital what it owns and where it was assigned. A sensor-connected asset management system tells it where the equipment is, whether it is moving, how hard it is being used, and whether something needs attention now. For a hospital with a large and mobile equipment base, that is the difference between managing assets from last quarter's audit and managing them from this morning's data.
Key Takeaways
- Start with two sensor types: BLE on the mobile fleet, temperature loggers on the cold chain.
- Product-temperature probes, not air probes, with alarm escalation and a named responder.
- Current and vibration sensors belong on plant and procedure-critical equipment, not everywhere.
- In India, UPS-backed power and LoRa where Wi-Fi is weak are the two decisions that decide reliability.
- Sensor data must land on the equipment record, not in a separate dashboard.
