If you sell software into a hospital that runs Cerner, sooner or later, someone on the buyer side asks the question that stalls deals: "How does this talk to our EHR?" The honest answer is that Cerner does not hand you a single switch to flip. You get a few different doors, each with its own keys, and you have to pick the right one for the job.
This guide walks through how to connect Cerner Millennium to your application using Mirth Connect, what the two main integration paths actually look like in 2026, and where teams usually trip.
We have built EHR integrations for 30+ healthtech startups, and Cerner comes up constantly. The patterns below are the ones we reach for in real projects, not whiteboard theory.
What "Cerner integration" means in 2026
First, a naming note that trips people up. Oracle acquired Cerner in 2022 and rebranded the EHR business as Oracle Health. The core platform is still Cerner Millennium, and most hospital staff still say "Cerner" day to day. You will see both names in contracts, documentation, and developer portals, so treat them as the same thing.
Millennium exposes clinical, administrative, and financial data through a handful of channels. The two that matter for most integrations are HL7 v2 messaging through the Cerner Open Interface (COI), and the FHIR R4 layer that Cerner markets as Ignite APIs. There are also CCDA documents and CDS Hooks, but those serve narrower use cases. If you are new to the underlying standards, our guide to HL7 covers the message formats this article assumes you know.
One date worth marking on the calendar: Cerner has deprecated its older DSTU2 FHIR APIs, with the wind-down completing through late 2025. For anything new, you should be building on FHIR R4. We have written before about why "FHIR compliant" does not always mean interoperable across Epic, Oracle, Athenahealth, and Cerner, and Cerner is a good example of why vendor-specific behavior still matters.
Why put Mirth Connect in the middle
You could write code that calls Cerner directly from your application. Plenty of teams start that way, then regret it the first time a message format changes or a feed goes quiet at 2 am with no record of what happened. An interface engine sits between Cerner and your stack and gives you a place to receive, inspect, transform, and route every message, with logging and retries built in.
Mirth Connect, now also sold as NextGen Connect, is the most widely deployed open-source engine in healthcare. It speaks HL7 v2.x, FHIR, CCDA, DICOM, X12, and plain files, and it handles the transport layer for you: MLLP over TCP for HL7, HTTPS for REST, SFTP for files, plus database connectors. If you want the full picture of what the engine is and where it fits, start with our complete guide to Mirth Connect and the deeper architecture and deployment guide.
The reason Mirth pays off with Cerner specifically is that Millennium data is rarely shaped the way your application wants it. You need somewhere to reshape it, and a channel is exactly that.

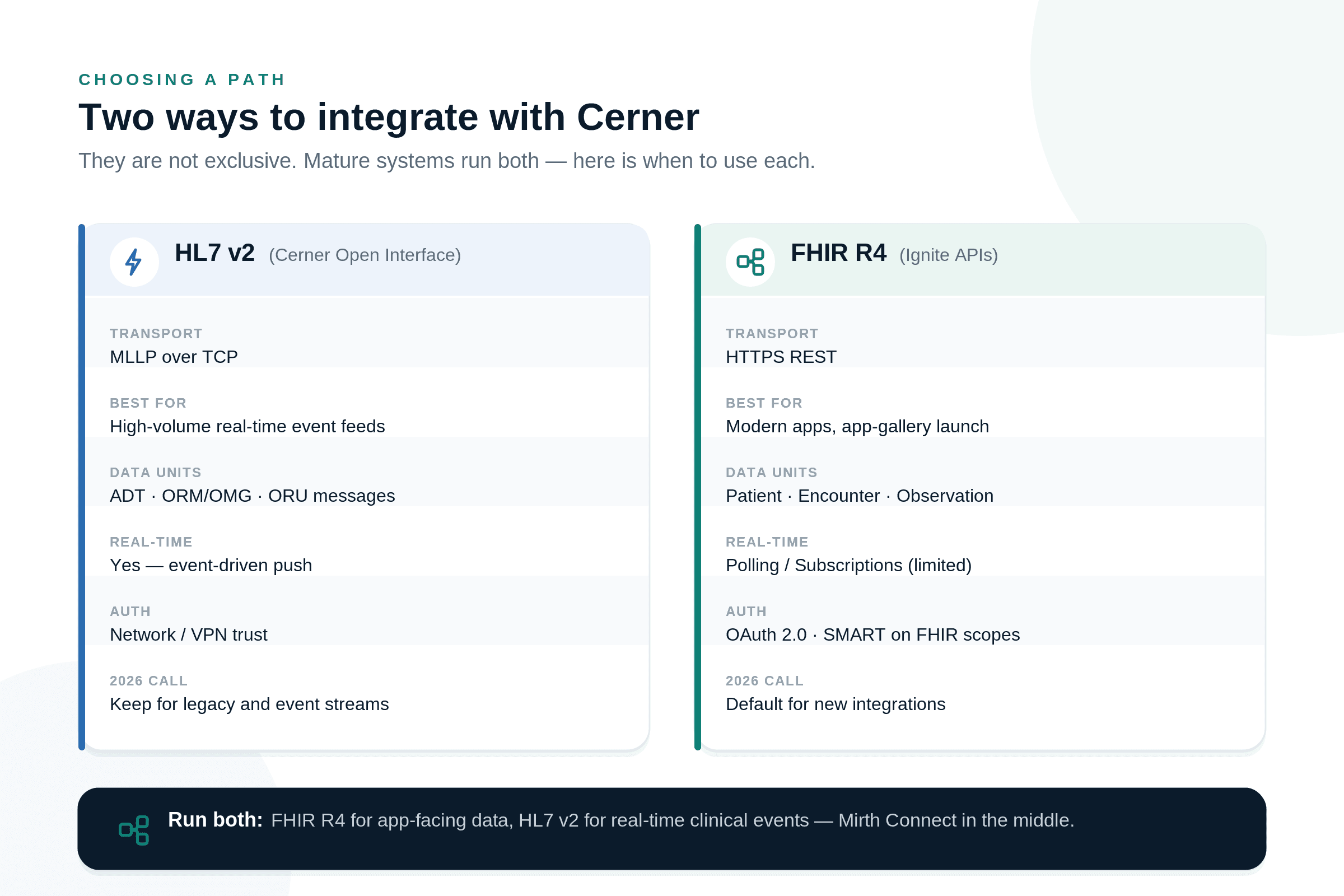

The two integration paths, and when to use each
Most Cerner integrations come down to a choice between two paths. They are not mutually exclusive, and mature systems usually run both.
Path 1: HL7 v2 through Cerner Open Interface
This is the workhorse for real-time clinical events. Millennium emits HL7 v2 messages over MLLP for things like patient admits and transfers (ADT), orders (ORM and OMG), and results (ORU).
If you need to know the instant a patient is admitted or a lab result posts, this is the feed you want. It is event-driven, high-volume, and battle-tested. The tradeoff is that it runs over a network-trusted connection, usually a VPN or point-to-point link, so it involves the hospital's interface team and a slower provisioning process.
Path 2: FHIR R4 through Ignite APIs
This is the modern path, and the right default for net-new app integrations. Ignite APIs expose Millennium data as RESTful FHIR R4 resources such as Patient, Encounter, Observation, and MedicationRequest. Authentication uses OAuth 2.0 and SMART on FHIR scopes, which means a cleaner security story for a hospital review. You can register and test your app in Cerner's code Console at code.cerner.com against a public sandbox, then move to authenticated endpoints. For population-level pulls, Cerner also supports the FHIR Bulk Data Access specification, documented in the Oracle Health developer docs. The full FHIR resource reference lives at fhir.cerner.com.
The honest rule of thumb: use FHIR R4 for app-facing data and anything you will submit through an app gallery, and keep HL7 v2 for high-volume, real-time event streams. FHIR Subscriptions are improving but still cover a limited set of resource types, so HL7 v2 remains the more reliable choice for true event notification today.
If your roadmap involves several EHRs, our write-up on building a multi-EHR FHIR facade across Epic, Cerner, and athenahealth shows how to hide these differences behind one API.
What you can actually pull from Cerner
Buyers often assume an EHR will give them anything they ask for. It will not, so it helps to know the real menu before you scope a feature. On the HL7 v2 side, the common feeds are ADT for patient demographics and movement, ORU for lab and diagnostic results, ORM and OMG for orders, and SIU for scheduling events.
On the FHIR side, the resources you will use most are Patient, Encounter, Observation, Condition, MedicationRequest, AllergyIntolerance, DocumentReference, and Appointment.
The other thing to check early is read versus write. Reading data from Cerner is well supported across both paths. Writing back, creating, or updating records inside Millennium, is more constrained and varies by resource and by what the hospital has enabled. Confirm exactly which write operations are available for your use case before you promise them in a demo, because discovering a write limitation after a contract is signed is an expensive surprise. When in doubt, design read-heavy first and treat write-back as a separate phase.

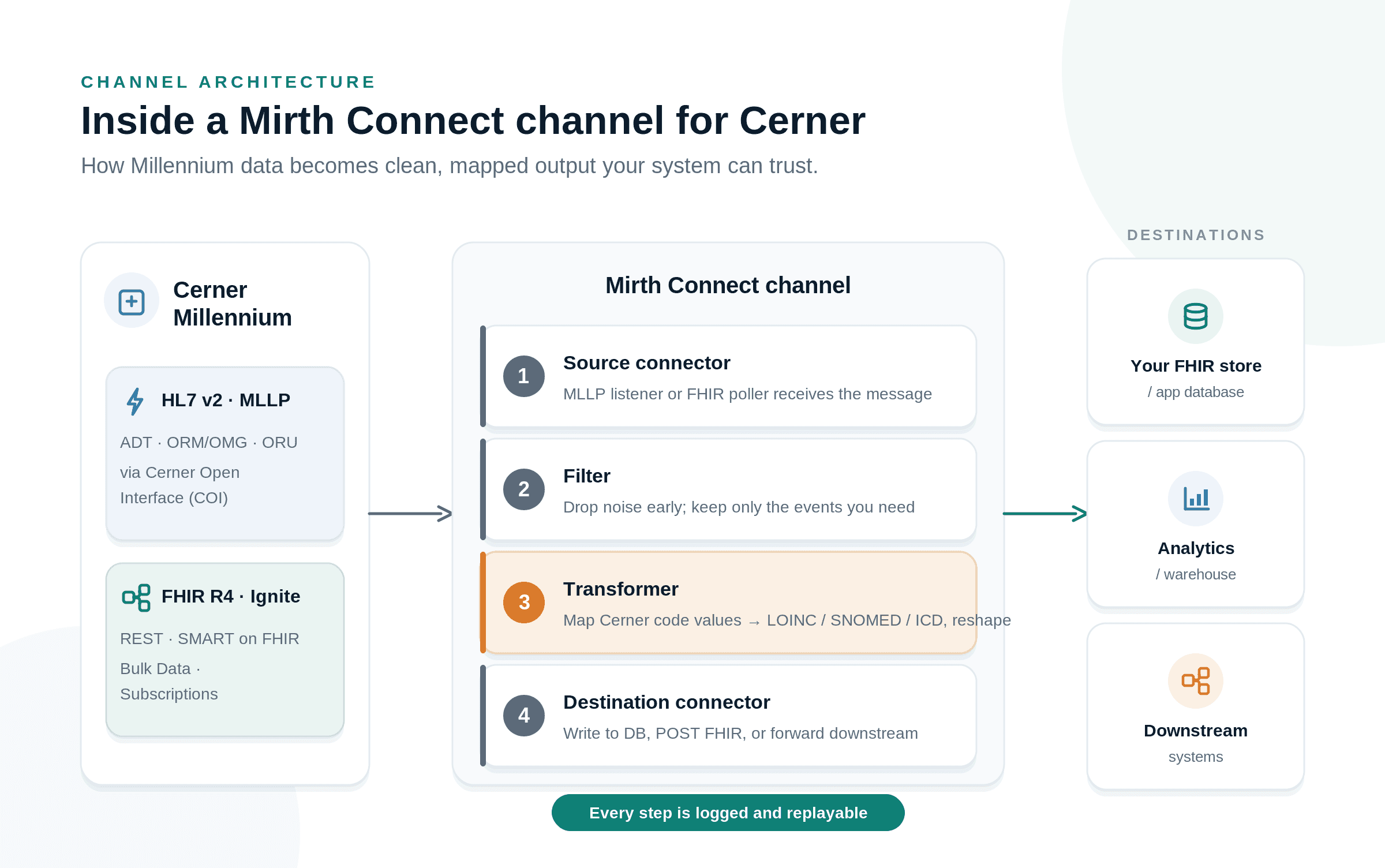

Inside a Mirth channel for Cerner data
A Mirth channel has four moving parts. Understanding them is most of the battle.
- Source connector. This receives the message. For HL7 v2, it is an MLLP listener on a TCP port; for FHIR, it is an HTTP listener or a polling job that calls Ignite APIs on a schedule.
- Filter. A small piece of logic that decides whether a message is worth processing. Cerner feeds are chatty, and dropping events you do not need early keeps the channel fast and your logs readable.
- Transformer. Where the real work happens. You map fields, convert code values, and reshape the message into the structure your application expects.
- Destination connector. Where the result goes: a database write, a FHIR POST to your own store, or a forward to a downstream system.
Here is a trimmed transformer that pulls a few fields from an inbound ORU result message and builds a clean object for a downstream API:
// Transformer: extract result fields from a Cerner ORU^R01
var mrn = msg['PID']['PID.3']['PID.3.1'].toString();
var testName = msg['OBX']['OBX.3']['OBX.3.2'].toString();
var value = msg['OBX']['OBX.5']['OBX.5.1'].toString();
var cernerCode = msg['OBX']['OBX.3']['OBX.3.1'].toString();
// Map the Cerner code value to a standard LOINC code
var loinc = $('cernerToLoinc')[cernerCode] || 'UNMAPPED';
channelMap.put('result', JSON.stringify({
mrn: mrn,
test: testName,
value: value,
loinc: loinc
}));That cernerToLoinc lookup is not decoration. It points to the single biggest gotcha in Cerner work, which deserves its own section.
The Cerner code-value problem
Millennium often carries Cerner code values and internal numeric identifiers, instead of standard terminology. A lab result might arrive tagged with a Cerner number rather than a LOINC code, and a diagnosis with a local code rather than ICD-10 or SNOMED. If your application assumes standard codes, it will quietly mishandle data, which is worse than failing loudly.
The fix is a mapping layer. In practice, that means a lookup table, often a code map or a database that the transformer queries, that translates Cerner values into the standards your system uses. This is unglamorous, and it is where integration projects actually live or die. Budget real time for it, keep the table under version control, and add an alert for unmapped codes so new ones surface before a clinician notices. Our HL7 v2 to FHIR R4 mapping guide goes deep on building these tables for production.
Security, authentication, and access
The two paths have very different security models, and a hospital's review team will ask about both. FHIR R4 through Ignite uses OAuth 2.0 with SMART on FHIR scopes, so you request only the data your app needs and can show exactly what those scopes are. HL7 v2 over COI relies on network-level trust, which means a secured connection arranged with the hospital's integration team rather than token-based auth.
Whichever path you take, you will be handling Protected Health Information, so a Business Associate Agreement is part of the deal. We sign BAAs with US health systems and digital health customers, and we build on HIPAA-compliant, SOC 2 Type II, and ISO 27001 certified infrastructure with FHIR R4 native architecture.
That last point matters for Cerner work specifically: when interoperability is designed in from the start rather than bolted on at the end, the code-value and resource-mapping problems above are much easier to manage.
This content describes engineering patterns. It does not include actual Protected Health Information. All data examples are synthetic.
A realistic rollout, and the pitfalls to avoid
A Cerner integration tends to move through a few predictable stages. You start in the code Console sandbox to validate your FHIR calls without touching a live system. You build and test your Mirth channels against sample messages. You agree on the connection details and message types with the hospital's interface team, which is usually the longest pole in the tent. Then you run a parallel period where data flows, but nothing downstream is trusted yet, and you reconcile until the numbers match.
The pitfalls are consistent across projects. Teams underestimate the code-value mapping work. They forget to plan for messages that fail, which is why every serious channel needs a dead-letter strategy; our guide to message replay and dead letter queues covers how to handle the ones that break.
They also let channels sprawl without a consistent structure, which our channel design patterns piece is meant to prevent. And they treat the hospital's interface team as an afterthought rather than a partner, which slows everything down.
If your integration also involves device or remote monitoring data flowing into Cerner, the same channel thinking applies; we covered that specific case in integrating RPM data into Epic and Cerner.
How Nirmitee.io approaches Cerner integration
Healthcare is the only industry we serve, and EHR integration is a core part of the work. We built Yown Health, a health data platform with multi-EHR integration spanning Epic, Cerner, Allscripts, and athenahealth. Hence, the multi-vendor reality in this article is one we live in. On the speed side, one healthtech we worked with went from zero FHIR capability to a working EHR integration in about five weeks, because the channel patterns and mapping approach were already proven.
The same playbook applies whether you are reading one lab feed or standing up a full bidirectional interface. Get the path right, respect the code values, plan for failure, and put an engine in the middle so you never have to debug a black box. If you want a second set of eyes on a Cerner integration, or want it built, share your use case at nirmitee.io, and we will tell you what we have shipped for similar problems.
