RFID Readers and Antennas for Hospital Asset Tracking: Types, Placement, and What They Cost

Part of our complete guide to Hospital Asset Management: The Complete Guide.

Quick answer: Hospitals use five UHF RFID reader types: fixed portal readers at doorways and choke points (the most important), ceiling-mount readers over open zones, handheld readers for audits, desktop readers for single-asset check-out, and tunnel readers at the loading dock. A 500-bed hospital typically needs 12-16 portal readers, 6-10 ceiling readers, 4-6 handhelds, and 8-12 desktop readers, roughly ₹35-40 lakh ($42,000-48,000) in reader and antenna hardware. Get placement right with a 50-tag walk test before sign-off, and put readers on a dedicated PoE switch, never on the patient-monitoring network.

Related: see how we approach this in our hospital asset tracking software.

Hospitals deploying RFID often spend the budget on tags and printers, treat reader placement as an afterthought, and discover at go-live that 15-30% of asset moves don't get scanned. The fix is not more readers. It is the right reader type at the right location with the right antenna geometry. This guide covers the five reader categories, how to choose antennas, how many readers a hospital needs, what they cost in India, and the placement playbook that gets coverage without RF interference. It is written for the biomedical and IT leads who sign the hardware order.

Reviewed by the Assetly product team at Nirmitee.io. Last updated August 2026.

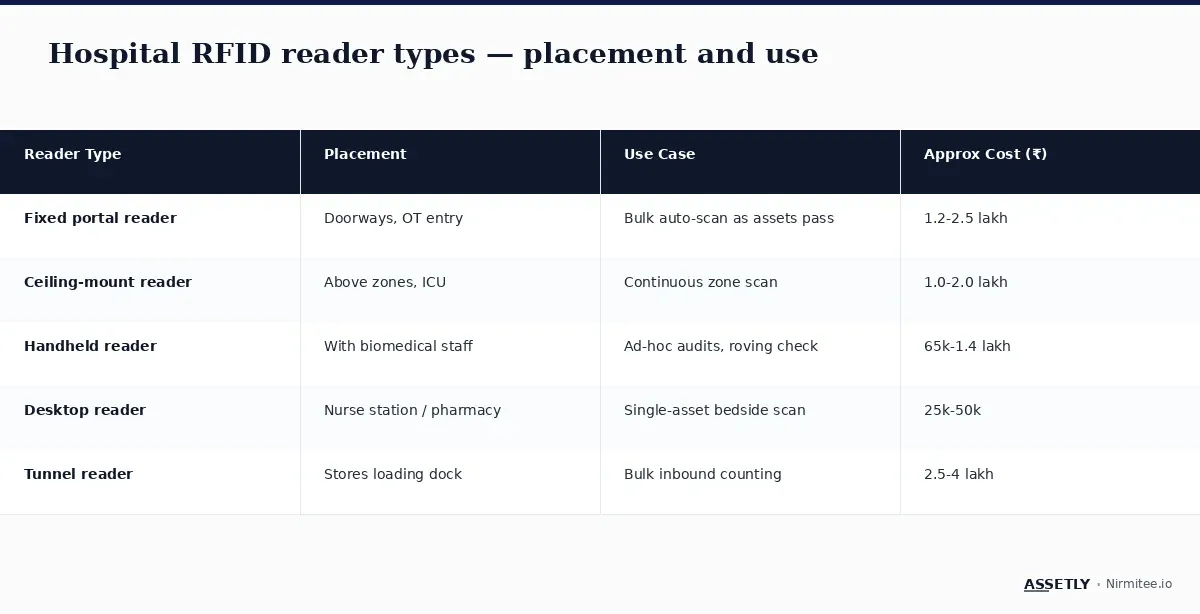

Types Of RFID Readers Used In Hospitals

Prices are indicative 2026 ranges for UHF (860-960 MHz) readers from Zebra, Impinj, Honeywell, and comparable OEMs, excluding antennas, cabling, and mounting. Indian pricing includes GST and typically runs 10-20% above the dollar equivalent because of import duty.

Fixed Portal Readers

Portal readers sit at doorways and choke points where assets cross between zones. Two to four antennas mounted on the door frame cover the aperture, and every tag on a passing cart is read in a single sweep. This is the single most important reader category in hospital deployments, because it turns zone changes into automatic register updates.

Best for: OT entry and exit, biomedical workshop door, central stores receiving and dispatch, ICU equipment loading bay, main lift lobbies on equipment-heavy floors.

Ceiling-Mount Readers

Ceiling readers cover an open zone: an ICU bay, an OT, a pharmacy store. Antennas point downward and tags are re-read at intervals of 2-5 seconds, which gives zone-level location without a doorway. For live position rather than zone, hospitals pair ceiling readers with BLE, covered in the tag comparison.

Best for: ICU continuous monitoring of mobile equipment, OT instrument tray tracking, controlled-substance cabinet zones.

Handheld RFID Readers

Battery-powered handhelds carried by biomedical staff for audits, roving asset checks, and equipment relocation. Modern units read at 1-3 metres (some up to 6 metres at full power), run 8-12 hours on a charge, and pair with a phone or run their own Android app. This is the reader most hospitals should buy first, because it works before any fixed infrastructure exists.

Best for: Weekly and quarterly reconciliation, receiving inspection, instrument tray audits during turnover, "where did the pump go" searches.

Desktop Readers

Compact USB-connected readers at nurse stations or pharmacy counters for single-asset check-out. The asset is brought to the reader, the tag is confirmed, and the record updates. Cheap enough to put everywhere an asset changes hands.

Best for: Bedside infusion pump check-out, narcotics cabinet assignment, single-asset intake at the biomedical workshop.

Tunnel Readers

Conveyor-mounted enclosures at the loading dock that bulk-read tagged cartons or trays in seconds. Only worth it for hospitals or groups receiving high volumes of pre-tagged equipment and consumables.

Best for: Central stores at large hospitals and group warehouses, biomedical workshop intake at scale.

How To Choose RFID Reader Antennas

The reader decides how many tags per second; the antenna decides where they get read. Three choices matter:

• Polarisation. Circular-polarised antennas read tags at any orientation and are the default for portals and ceilings, where a pump could pass at any angle. Linear-polarised antennas have longer range but only when tag and antenna are aligned; use them on conveyors and tunnels where orientation is fixed.
• Gain. Higher gain (8-9 dBi) means longer, narrower coverage, right for ceiling zones and wide corridors. Lower gain (5-6 dBi) gives a wider, shorter field, right for doorways where you want the aperture and nothing beyond it.
• Near-field. Near-field antennas read only within a few centimetres and are the answer for desktop check-out and CSSD tray stations where stray reads from the next bench would corrupt the record.

Budget ₹8,000-25,000 ($100-300) per antenna plus RF cable and mounting. Keep cable runs short; every 10 m of coax loses signal you paid for in gain.

How Many Readers Does A Hospital Need?

Count choke points, not rooms. Walk the equipment flows for each mobile asset class and list every doorway where a zone change matters (ward to corridor rarely does; ICU to lift lobby does). A useful starting point:

• Portals: one per OT corridor entry, workshop door, stores in and out, ICU and ED loading points, and each equipment-heavy lift lobby. A 500-bed hospital lands at 12-16.
• Ceiling readers: one per ICU bay cluster and OT where continuous zone presence is needed. 6-10 for a 500-bed hospital.
• Handhelds: one per biomedical engineer on audit duty plus one spare. 4-6.
• Desktop: one per nurse station or counter where assets are checked out. 8-12.

Scale roughly linearly with bed count for portals and desktops; ceiling readers scale with ICU and OT count, not beds.

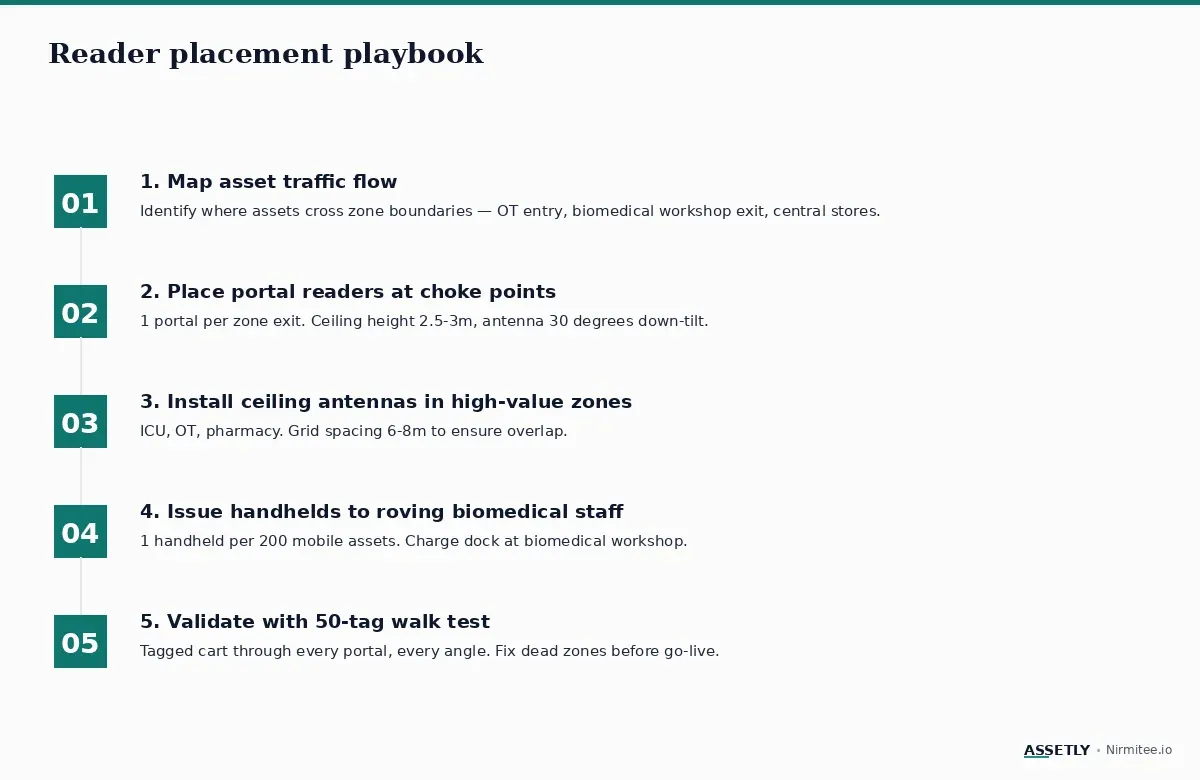

Antenna Placement Playbook

1. Map the flows. For each mobile asset class, trace the path from store to ward to workshop and back. Portals go where zones change.
2. Site survey. Walk each location with a handheld and a test tag. Note metal, glass, water (fluid stores, dialysis), and existing wireless equipment.
3. Set power and dwell. Portal readers at the lowest power that still covers the aperture; higher power reads the corridor and creates ghost moves.
4. Walk test. 50 tags on a cart, through every portal at walking pace, from every direction, at every height. Target 98%+ capture before sign-off. Fix dead zones by moving antennas before adding readers.
5. Tune after go-live. Review ghost reads and missed reads weekly for the first month, then quarterly.

Avoiding RF Interference In Hospital Environments

• Wi-Fi access points: 2.4 GHz Wi-Fi does not clash with UHF RFID, but it does with BLE tags. Keep BLE gateways at least 3 m from APs; keep UHF antennas clear of them for physical reasons only.
• MRI and X-ray rooms: shielded and not RFID-friendly. Read at the door, not inside.
• Metal carts and fixtures: reflect UHF and create dead zones and multipath. Validate with the walk test; use on-metal tags on steel-bodied equipment.
• Liquids: fluid stores, dialysis, and blood bank absorb UHF. Expect shorter range and place antennas closer.
• Telemetry: some patient-monitoring telemetry sits near 900 MHz in some regions. Confirm bands with biomedical engineering before fixed installation. In India, UHF RFID is licence-exempt in the 865-867 MHz band; specify readers set to that range.

Worked Example: A 500-Bed Hospital's Reader Plan

Shown as a worked scenario for a 500-bed multi-specialty hospital deploying Assetly. Reader plan: 14 fixed portals (OT entry × 4, biomedical workshop × 2, central stores × 4, ICU loading × 2, pharmacy × 2), 8 ceiling-mount readers (ICU × 4, OT × 2, pharmacy × 2), 6 handhelds for biomedical staff, and 12 desktop readers at nurse stations. Reader and antenna hardware: about ₹38 lakh ($46,000). The walk test finds 4 dead zones; 2 antennas are repositioned and 1 ceiling antenna added. Final coverage: 98.4% of asset moves captured. The reader plan is one of three coupled hardware decisions with tags and printers; the hardware setup guide covers all three together, and the RFID vs barcode comparison shows where the reader budget sits in the year-1 total. Put this equipment list into a longer planning horizon with our hospital RFID cost model.

Network And Power Considerations

Fixed and ceiling readers need PoE or a nearby outlet. A 200-bed hospital with 12 fixed readers needs at least a 16-port managed PoE switch dedicated to asset tracking. Do not share with patient monitoring or VoIP: RFID generates packet bursts that affect QoS. Put readers on their own VLAN, give the switch UPS backing, and plan cable runs during the network design step of the 16-week implementation plan, not after the readers arrive.

Key Takeaways

• Five reader types, each with a distinct placement. Portals at choke points matter most.
• Buy handhelds first; they work before any fixed infrastructure exists.
• Circular antennas on portals and ceilings, linear on conveyors, near-field on desks.
• Count choke points, not rooms: 12-16 portals, 6-10 ceiling, 4-6 handheld, 8-12 desktop for 500 beds.
• Validate every deployment with a 50-tag walk test before go-live.
• Dedicated PoE switch and VLAN; never share with patient monitoring.
