The $262 Billion Denial Crisis: How AI Denial Management Actually Works (Architecture + ROI)

Every year, US healthcare providers submit approximately $3 trillion in claims to payers. Of that, roughly $262 billion is denied. That is not a rounding error or an edge case — it is a systemic failure that bleeds revenue from every hospital, health system, physician practice, and ambulatory surgery center in the country. The average provider loses nearly $5 million annually to denials alone.

The traditional approach to denial management — hire more staff, work the queue, appeal manually, hope for the best — has reached its limits. Denial rates have climbed to 11.8% on initial submission (up from 10.2% in 2022), rework costs $57 per claim, and 35-65% of denied claims are never resubmitted. Meanwhile, payers are deploying increasingly sophisticated AI to deny claims faster. Providers who do not respond with equally sophisticated technology will continue losing ground.

This guide goes beyond surface-level advice. We detail the complete 3-layer AI denial management architecture — Prevention, Detection, and Recovery — with the ML model design, feature engineering, integration patterns, and ROI framework you need to build or evaluate a denial management system that actually works.

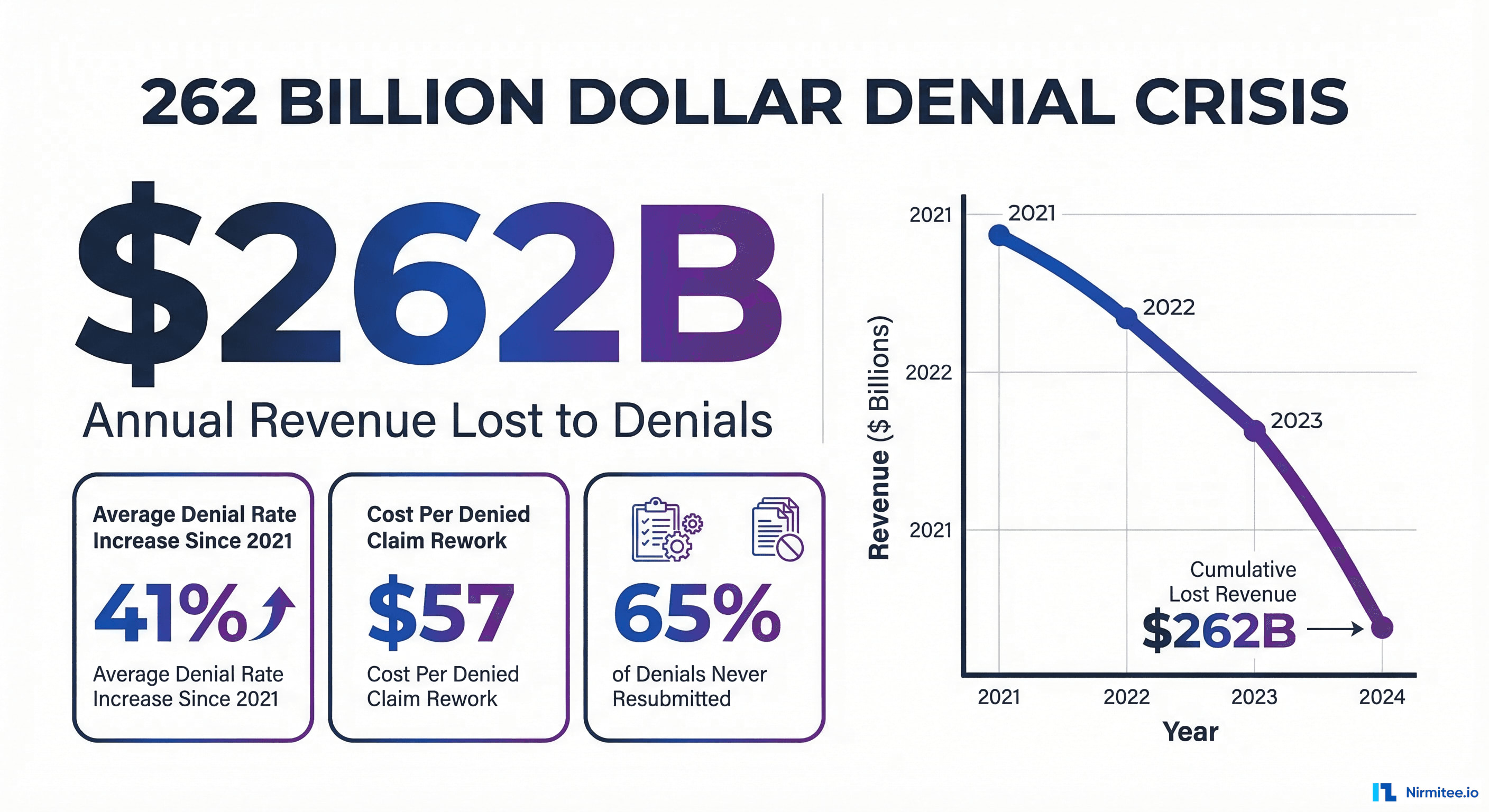

The $262 Billion Problem: Healthcare Denial Crisis by the Numbers

Before diving into architecture, let us establish the scale of the problem with data from HFMA, MGMA, KFF, AHA, and Experian.

Denial Rate Trends (2021-2026)

Denial rates are not just high — they are accelerating. According to the American Hospital Association and multiple industry surveys:

• 19% of in-network claims through HealthCare.gov were denied in 2023, the highest rate since marketplace coverage launched in 2015 (KFF)
• 49 million in-network ACA marketplace claims were denied in 2023 alone (KFF)
• 15.7% average initial denial rate for Medicare Advantage plans (AHA)
• 13.9% initial denial rate for commercial payers (AHA)
• 11.8% overall initial denial rate in 2024, up from 10.2% in previous years (Experian State of Claims)
• 38-41% of providers report denial rates exceeding 10% (Managed Healthcare Executive)
• Average denied inpatient and outpatient claim amounts rose 12% and 14% respectively from 2024 to 2025

The Financial Hemorrhage

The cost of denials goes far beyond the face value of denied claims:

• $262 billion in annual denied claims across US healthcare (HFMA)
• $19.7 billion hospitals spend annually on denial appeals alone (AHA)
• $25.7 billion spent annually on claim adjudication (Premier)
• $57.23 average administrative cost per denial in 2023, up from $43.84 in 2022 (Premier)
• $25-$181 range of cost to rework a single denied claim depending on complexity (AHIMA Journal)
• 90% of denial processing costs are attributed to labor (Premier)
• 35-60% of denied claims are never resubmitted — pure revenue loss (AHIMA Journal)

The Appeal Paradox

Here is the most frustrating statistic in denial management: most denials can be overturned, but almost nobody appeals them.

• 57% of Medicare Advantage denials are overturned on appeal (Health Affairs)
• 82% of MA prior authorization denials from 2019-2023 were partially or fully overturned on appeal (KFF)
• 60-80% of insurance denials overturned in certain states (Flobotics)
• Yet fewer than 1% of denied ACA claims were appealed in 2023 (KFF)
• 86% of denials are avoidable with proper front-end processes (industry benchmark)

This gap — between the high overturn rate and the abysmally low appeal rate — is the single biggest revenue recovery opportunity in healthcare. It is also exactly where AI creates the most value.

Why Denials Happen: A Taxonomy of Denial Types

To build an effective AI denial management system, you need a structured taxonomy of denial types. The HIPAA-standard Claim Adjustment Reason Codes (CARCs) maintained by the Washington Publishing Company in coordination with CMS and X12 provide this structure.

Group Code Categories

Every denial on an Electronic Remittance Advice (ERA/835) carries a Group Code that identifies financial responsibility and a Reason Code that specifies the cause:

Top Denial Codes and Their Root Causes

The following codes represent the majority of denials by volume. Understanding their root causes is essential for building AI prevention logic:

Each denial code also carries a companion Remittance Advice Remark Code (RARC) — supplemental codes like N30, M51, or N479 — that add specificity. Your AI system must parse both the CARC and RARC to accurately classify and route denials.

Denial Root Cause Distribution

According to Experian's 2025 State of Claims report and industry data:

• 68% cite inaccurate or incomplete patient data as the primary denial driver (Experian)
• 49% of claims affected by coding and documentation issues (Altruis)
• Prior authorization failures consistently rank in the top 3 denial causes
• 9% increase in Request for Information (RFI)-triggered denials from 2022-2024 (Aspirion)

The pattern is clear: the majority of denials are preventable at the front end — before the claim ever leaves the building. This insight drives the architecture of an effective AI denial management system.

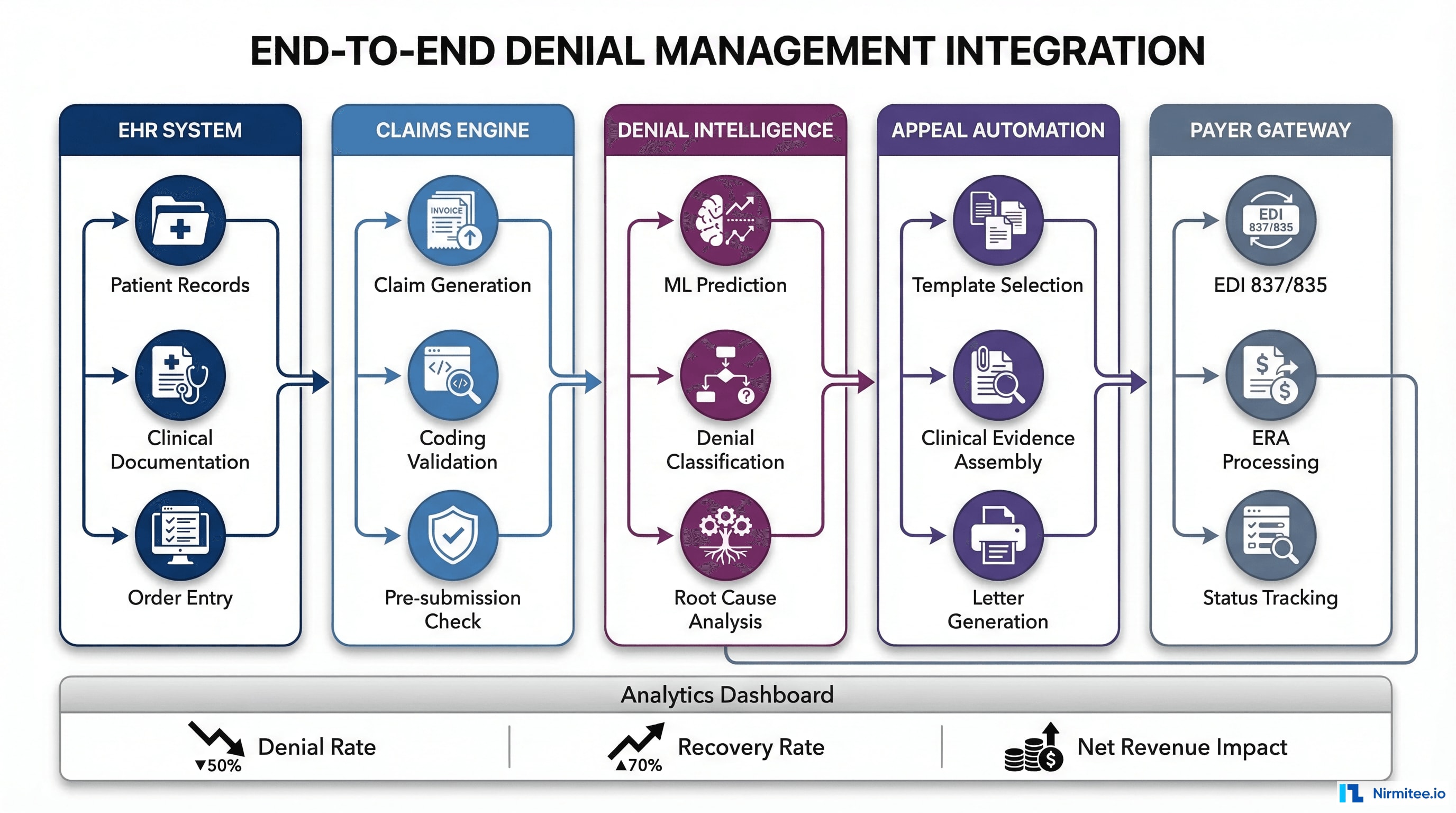

The 3-Layer AI Denial Management Architecture

Based on the denial taxonomy and root cause analysis above, an effective AI denial management system must operate across three layers. Each layer addresses a different phase of the claim lifecycle, and together they form a comprehensive denial management architecture.

This is not a theoretical model — it reflects how the most effective denial management platforms are structured, whether built in-house or deployed as a commercial solution. Let us examine each layer in detail.

Layer 1: Prevention — Stop Denials Before They Happen

Prevention is the highest-ROI layer. Every denial prevented saves the full rework cost ($57+) and eliminates the risk of the claim being abandoned (35-65% probability). The prevention layer operates before the claim is submitted to the payer.

Pre-Submission Validation Engine

The validation engine applies a cascade of checks against every claim before it enters the clearinghouse pipeline:

Step 1: Structural Completeness Check

• Validate all required EDI 837 fields are populated (subscriber ID, group number, NPI, taxonomy code, place of service, etc.)
• Cross-reference patient demographics against eligibility response data
• Verify rendering and billing provider NPI validity
• Flag missing or expired prior authorization numbers

Step 2: Coding Validation

• CPT-modifier compatibility check (prevents CO-4)
• ICD-10 to CPT medical necessity linkage validation
• Duplicate service detection across recent claims (prevents CO-18)
• Age/gender-specific procedure validation
• National Correct Coding Initiative (NCCI) edit checking

Step 3: Payer-Specific Rule Engine

• Each payer has different rules, coverage policies, and filing requirements
• Maintain a payer rule database with specific requirements per plan type
• Check timely filing limits (prevents CO-29)
• Validate that billed amounts align with contracted fee schedules (prevents CO-45)

// Pseudocode: Pre-submission validation pipeline
func ValidateClaim(claim Claim) ValidationResult {
    results := []Check{}

    // Layer 1: Structural completeness
    results = append(results, CheckRequiredFields(claim))
    results = append(results, CheckNPIValidity(claim.RenderingNPI))
    results = append(results, CheckPatientEligibility(claim.SubscriberID))

    // Layer 2: Coding validation
    results = append(results, CheckCPTModifierCompat(claim.Procedures))
    results = append(results, CheckNCCIEdits(claim.Procedures))
    results = append(results, CheckMedicalNecessity(claim.Diagnoses, claim.Procedures))

    // Layer 3: Payer-specific rules
    payerRules := GetPayerRules(claim.PayerID, claim.PlanType)
    results = append(results, ApplyPayerRules(claim, payerRules))
    results = append(results, CheckTimelyFiling(claim, payerRules.FilingLimit))

    return AggregateResults(results)
}

Real-Time Eligibility Verification

The single most impactful prevention measure is real-time eligibility verification at the point of registration — not batch verification the night before. This requires an EDI 270/271 integration with major payers or a clearinghouse that supports real-time eligibility transactions.

Key data points to capture from the eligibility response (271):

• Active coverage confirmation with effective dates
• Deductible remaining (individual and family) — prevents PR-1 surprises
• Copay and coinsurance amounts by service type — enables PR-2/PR-3 collection
• Prior authorization requirements by procedure category
• Out-of-pocket maximum status
• Coordination of Benefits (COB) — primary vs. secondary payer identification

Organizations that implement real-time eligibility verification typically see a 15-25% reduction in front-end denials within the first 90 days.

Prior Authorization Automation

CO-197 (prior auth not obtained) is one of the most costly and preventable denial codes. An AI-powered prior auth layer should:

• Maintain a database of procedures requiring auth by payer and plan type
• Auto-flag orders that require auth before the service is rendered
• Pre-populate auth request forms with clinical data from the EHR
• Track auth status and expiration dates
• Alert scheduling teams when auth is missing or expiring before a scheduled procedure

Layer 2: Detection — Real-Time Denial Classification and Pattern Analysis

Despite the best prevention efforts, some claims will be denied. The detection layer processes denial responses in real time, classifies them, identifies patterns, and routes them for optimal resolution.

ERA/835 Processing and Denial Extraction

When a payer adjudicates a claim, they return an Electronic Remittance Advice (ERA/835). The detection layer must:

• Parse the 835 transaction to extract CARC (Claim Adjustment Reason Code), RARC (Remittance Advice Remark Code), and Group Code
• Map each adjustment to the original claim and specific service line
• Distinguish between full denials, partial denials, and contractual adjustments
• Flag zero-pay claims that require immediate attention

ML-Powered Denial Classification

Raw denial codes tell you what happened. ML-powered classification tells you why and what to do about it. The classifier groups denials into actionable categories:

Pattern Analysis and Root Cause Detection

The detection layer's most strategic function is identifying systemic patterns that indicate process failures rather than one-off errors:

• Provider-level patterns: If Dr. Smith's claims are denied for CO-197 at 3x the department average, the root cause is likely a workflow gap in that provider's prior auth process
• Payer-level patterns: If BlueCross denials for CO-16 spike 40% in a quarter, the payer may have changed their submission requirements
• Procedure-level patterns: If a specific CPT code has a 25% denial rate across all payers, the coding documentation may be systematically insufficient
• Temporal patterns: Denial spikes after system upgrades, staff transitions, or payer policy changes

This analysis feeds directly back into Layer 1 (Prevention) — every systemic pattern detected becomes a new prevention rule.

Layer 3: Recovery — Appeal Generation and Automated Resubmission

The recovery layer is where AI delivers the most dramatic impact. Remember: 57-82% of denials can be overturned on appeal, but fewer than 1% are actually appealed. AI closes this gap by automating the appeal process.

Automated Appeal Generation with NLP

The appeal generation engine uses Natural Language Processing to construct payer-specific appeal letters from clinical data:

Step 1: Denial Analysis

• Parse the denial code and remark code to determine the specific reason
• Classify the denial into an appeal category (medical necessity, clinical documentation, coding, auth)
• Determine the payer-specific appeal requirements (format, deadline, evidence needed)

Step 2: Clinical Evidence Assembly

• Query the EHR for relevant clinical documentation — progress notes, lab results, imaging reports, surgical notes
• Extract key clinical indicators that support medical necessity
• Identify applicable clinical guidelines (MCG, InterQual, Milliman) that justify the service
• Pull relevant peer-reviewed literature citations when appropriate

Step 3: Appeal Letter Generation

• Select the payer-specific appeal template (each payer has different formatting preferences and required elements)
• Generate a structured medical necessity argument using the assembled clinical evidence
• Include specific references to the patient's clinical condition, the treatment provided, and why it was medically necessary
• Cite payer-specific coverage criteria and demonstrate how the patient meets them
• Format the appeal according to payer requirements (some require specific forms, others accept free-form letters)

// Pseudocode: Appeal generation pipeline
func GenerateAppeal(denial DenialRecord) Appeal {
    // Step 1: Classify the denial
    category := ClassifyDenial(denial.CARCCode, denial.RARCCode)
    payerRules := GetAppealRules(denial.PayerID, category)

    // Step 2: Gather clinical evidence
    clinicalData := QueryEHR(denial.PatientID, denial.ServiceDate)
    relevantDocs := ExtractRelevantDocuments(clinicalData, category)
    guidelines := MatchClinicalGuidelines(denial.ProcedureCode, denial.DiagnosisCode)

    // Step 3: Generate appeal
    template := SelectTemplate(denial.PayerID, category)
    argument := GenerateMedicalNecessityArgument(
        relevantDocs, guidelines, denial.ProcedureCode,
    )

    appeal := PopulateTemplate(template, argument, relevantDocs)

    // Step 4: Quality checks
    ValidateCompliance(appeal, payerRules)
    CheckTimelyFilingDeadline(denial.DenialDate, payerRules.AppealWindow)

    return appeal
}

Payer-Specific Appeal Templates

Generic appeal letters fail. Each payer responds to different evidence types, formats, and argumentation approaches. Your AI system must maintain a library of payer-specific templates that include:

• Required elements: Some payers require attending physician statements, others require specific medical necessity forms
• Preferred evidence types: UnitedHealthcare may weigh InterQual criteria, while Aetna may respond better to peer-reviewed citations
• Escalation paths: First-level appeal vs. external review vs. state insurance department complaint
• Deadlines: Commercial payers typically allow 60-180 days; Medicare has strict 120-day timely filing limits for redeterminations

Automated Resubmission for Correctable Denials

Not all denials require appeals. Many can be corrected and resubmitted:

• CO-16 (missing information): Auto-populate the missing field from EHR data and resubmit
• CO-4 (modifier error): Apply the correct modifier based on NCCI edits and resubmit
• CO-18 (duplicate): Verify it is a true duplicate vs. a legitimate separate service, withdraw or resubmit with distinguishing modifier
• CO-29 (timely filing): If within the filing window, generate proof of timely original submission

Organizations with automated resubmission workflows report 25-40% of correctable denials resolved within 48 hours without human intervention.

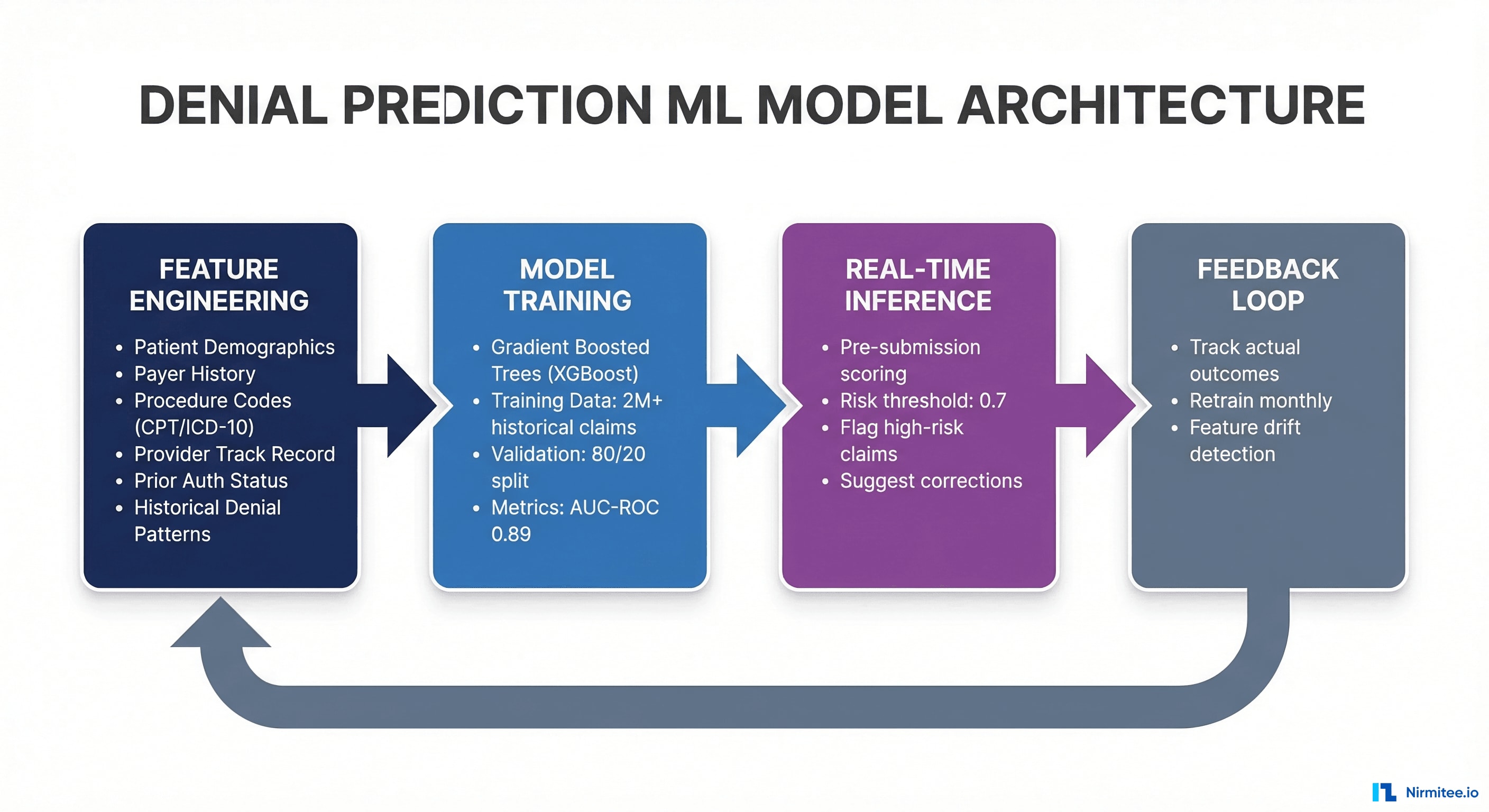

Building the ML Model: Denial Prediction and Classification

The ML model at the core of this architecture serves two primary functions: predicting which claims are likely to be denied (pre-submission) and classifying denials for optimal routing (post-denial). Here is how to build it.

Feature Engineering

The features that drive denial prediction fall into six categories:

1. Patient Features

• Insurance plan type (commercial, Medicare, Medicaid, MA)
• Payer ID and specific plan identifier
• Deductible status (met, partially met, not met)
• Prior authorization status for the service
• Historical denial rate for this patient-payer combination

2. Provider Features

• Rendering provider NPI and specialty
• Historical denial rate for this provider (overall and by payer)
• Provider credentialing status with the specific payer
• Network status (in-network, out-of-network, pending)

3. Procedure Features

• CPT/HCPCS code and modifier combination
• ICD-10 diagnosis codes (primary and secondary)
• Historical denial rate for this procedure-payer combination
• Medical necessity indicators (is the diagnosis-to-procedure mapping strong?)
• Prior authorization requirement flag

4. Claim Features

• Total billed amount relative to fee schedule
• Number of service lines
• Place of service code
• Days since service date (timely filing risk)
• Claim form completeness score (percentage of optional fields filled)

5. Temporal Features

• Day of week and month (some payers show patterns)
• Days since last payer policy update
• Claim volume relative to baseline (surge periods)
• Time since patient eligibility was last verified

6. Historical Pattern Features

• 30/60/90-day denial rate trend for this procedure-payer combination
• Recent denial code distribution shifts
• Appeal success rate for similar claims
• Payer behavior change indicators

Model Selection and Training

For denial prediction, gradient-boosted decision trees (XGBoost or LightGBM) consistently outperform deep learning approaches for several reasons:

• Tabular data: Claims data is highly structured and tabular — tree-based models excel here
• Feature interpretability: SHAP values from tree models explain why a specific claim was flagged, which is critical for staff trust and regulatory compliance
• Training efficiency: Models train on millions of historical claims in minutes, not hours
• Handling missing data: XGBoost natively handles missing values, which is common in claims data

Training data requirements:

• Minimum 500,000 historical claims with known outcomes (paid, denied, adjusted)
• Ideally 2M+ claims spanning 24+ months to capture seasonal and policy change patterns
• Include denied claims with their CARC/RARC codes and final resolution (appeal outcome)
• Balanced sampling — denials are typically 10-15% of claims, so use SMOTE or class weights

Target metrics:

• AUC-ROC: 0.85+ for binary denial prediction
• Precision at high-risk threshold (0.7+): 80%+ to minimize false alerts
• Recall for preventable denials: 70%+ to catch the majority of avoidable denials

Deployment Architecture

The model operates in two modes:

Pre-submission (real-time inference): Score every claim before it enters the clearinghouse. Claims above the risk threshold (typically 0.7 probability of denial) are routed to a human review queue with specific risk factors highlighted. This is the agentic AI approach to revenue cycle management — the model acts autonomously on low-risk claims and escalates high-risk ones.

Post-denial (batch classification): When denials arrive, classify them into action categories (auto-correct, appeal, patient responsibility, write-off) and route to the appropriate workflow. This classification model uses the denial code, claim features, and historical resolution patterns to determine the optimal action.

Integration Architecture: EHR to Payer Data Flow

The AI denial management system does not operate in isolation. It must integrate with the existing healthcare IT stack. Here is the complete integration architecture.

System Integration Points

Data Pipeline Architecture

// High-level data flow
EHR/PMS → Charge Capture → Coding Validation → Pre-submission ML Scoring
  ↓ (if score < threshold)
Clearinghouse → EDI 837 → Payer
  ↓
ERA/835 Response → Denial Detection Engine
  ↓ (if denied)
Denial Classification → Action Router
  ├── Auto-correct → Resubmit via Clearinghouse
  ├── Appeal → NLP Appeal Generator → Payer Portal/Mail
  ├── Patient Responsibility → Patient Billing System
  └── Write-off → Financial Review Queue
  ↓
Feedback Loop → ML Model Retraining (monthly)
  ↓
Updated Prevention Rules → Layer 1 Engine

For a deeper dive into the EDI integration layer — the 270/271 eligibility transactions, 837 claim submissions, and 835 remittance processing that underpin this architecture — see our comprehensive US payer integration guide.

ROI Calculator Framework

The business case for AI denial management is straightforward to calculate. Here is the framework, with conservative assumptions validated against industry benchmarks from HFMA, MGMA, and Premier.

Input Variables

ROI Formulas

// Cost of Inaction (Annual)
Denied_Claims = Annual_Claims × Denial_Rate
Rework_Cost = Denied_Claims × Cost_Per_Rework
Lost_Revenue = Denied_Claims × Avg_Claim_Value × Pct_Never_Recovered
Total_Denial_Cost = Rework_Cost + Lost_Revenue

// AI Denial Management Impact
Prevention_Savings = Denied_Claims × Prevention_Rate × Cost_Per_Rework
Recovery_Revenue = Denied_Claims × (1 - Prevention_Rate) × Improved_Appeal_Rate × Appeal_Success × Avg_Claim_Value
Rework_Reduction = Denied_Claims × Automation_Rate × Cost_Per_Rework × 0.70

Total_Annual_Benefit = Prevention_Savings + Recovery_Revenue + Rework_Reduction
Net_ROI = (Total_Annual_Benefit - Annual_Platform_Cost) / Annual_Platform_Cost × 100

Example Calculation: Mid-Size Health System

Even with conservative assumptions (25% denial reduction instead of 50%), the ROI exceeds 300% for most mid-size health systems. The payback period is typically 4-6 months.

Hidden ROI: Staff Retention and Redeployment

The ROI framework above does not capture one of the most significant benefits: staff impact. Denial management is tedious, repetitive work that drives burnout and turnover. Revenue cycle staff turnover rates exceed 30% at many organizations. By automating the routine work (auto-correction, template-based appeals, status tracking), AI denial management allows staff to focus on complex cases that require human judgment — improving both job satisfaction and outcomes.

Implementation Roadmap: Phased Approach

Do not try to build all three layers simultaneously. A phased approach reduces risk and delivers incremental ROI:

Phase 1 (Months 1-3): Prevention Foundation

• Implement pre-submission validation rules for the top 10 denial codes
• Deploy real-time eligibility verification at registration
• Build the denial analytics dashboard with current baseline metrics
• Expected impact: 10-15% denial rate reduction

Phase 2 (Months 4-6): Detection and Classification

• Build the ERA/835 processing pipeline with denial extraction
• Train the initial ML model on 12+ months of historical data
• Deploy denial classification and routing logic
• Expected impact: 50% reduction in manual triage time

Phase 3 (Months 7-12): Recovery Automation

• Build payer-specific appeal templates for top 5 payers by volume
• Deploy NLP appeal generation with human-in-the-loop review
• Implement automated resubmission for correctable denials
• Expected impact: 2-3x increase in appeal volume with higher success rate

Phase 4 (Ongoing): Optimization

• Monthly model retraining with new denial outcomes
• Expand payer-specific templates based on appeal success data
• Implement the feedback loop from recovery back to prevention
• Track and respond to payer policy changes

This phased approach aligns with the broader trend of agentic AI transforming healthcare workflows — starting with rule-based automation and progressively adding intelligence.

Key Metrics to Track

Measure the effectiveness of your AI denial management system with these KPIs:

Frequently Asked Questions
