A single AI agent can summarize a clinical note or flag a drug interaction. But real clinical workflows are rarely that simple. Post-discharge care coordination requires generating a discharge summary, reconciling medications, scheduling follow-ups, and producing patient-specific education materials — all within hours, across multiple data sources, under strict HIPAA constraints. No single agent handles this well. You need an orchestrated team.
Multi-agent orchestration is the architectural discipline of coordinating specialized AI agents to execute complex, cross-domain healthcare workflows. According to recent research, organizations using multi-agent architectures achieve 45% faster problem resolution and 60% more accurate outcomes compared to single-agent systems. In healthcare, where multi-agent domain-specific models are defining the 2026 landscape, these patterns are production necessities — not theoretical exercises.
This article is an architecture deep-dive for healthcare engineers. We cover four orchestration patterns, shared state management strategies, unified audit trail design, error handling, and a working code example. If you are building AI agents for healthtech, this is the reference you need for scaling from one agent to many.
When You Need Multi-Agent Orchestration
The decision to adopt multi-agent is driven by workflows that cross domain boundaries — where a single agent would need simultaneous expertise in clinical documentation, pharmacology, scheduling systems, and patient communication. A monolithic agent attempting all four becomes brittle, difficult to test, and impossible to maintain as requirements evolve.
Consider post-discharge care coordination. The workflow requires four distinct capabilities:
- Clinical Summary Agent — Reads encounter history, lab results, and provider notes to generate a structured discharge summary compliant with C-CDA standards.
- Medication Reconciliation Agent — Compares admission vs. discharge medications, flags interactions via RxNorm and NLM APIs, and identifies therapeutic duplications.
- Follow-Up Scheduling Agent — Books PCP visits within 7 days (a CMS quality measure), schedules specialist referrals, and verifies insurance eligibility for each visit.
- Patient Education Agent — Generates personalized care instructions at the appropriate health literacy level, including medication guides and warning signs.
Splitting these into orchestrated agents lets you test, deploy, and scale each independently. It also maps cleanly to HIPAA's minimum necessary principle — each agent accesses only the PHI it needs for its specific task.
Pattern 1: Sequential Pipeline
The simplest multi-agent pattern. Agents execute in order, each consuming the output of its predecessor — an assembly line from intake through analysis to documentation.
Architecture

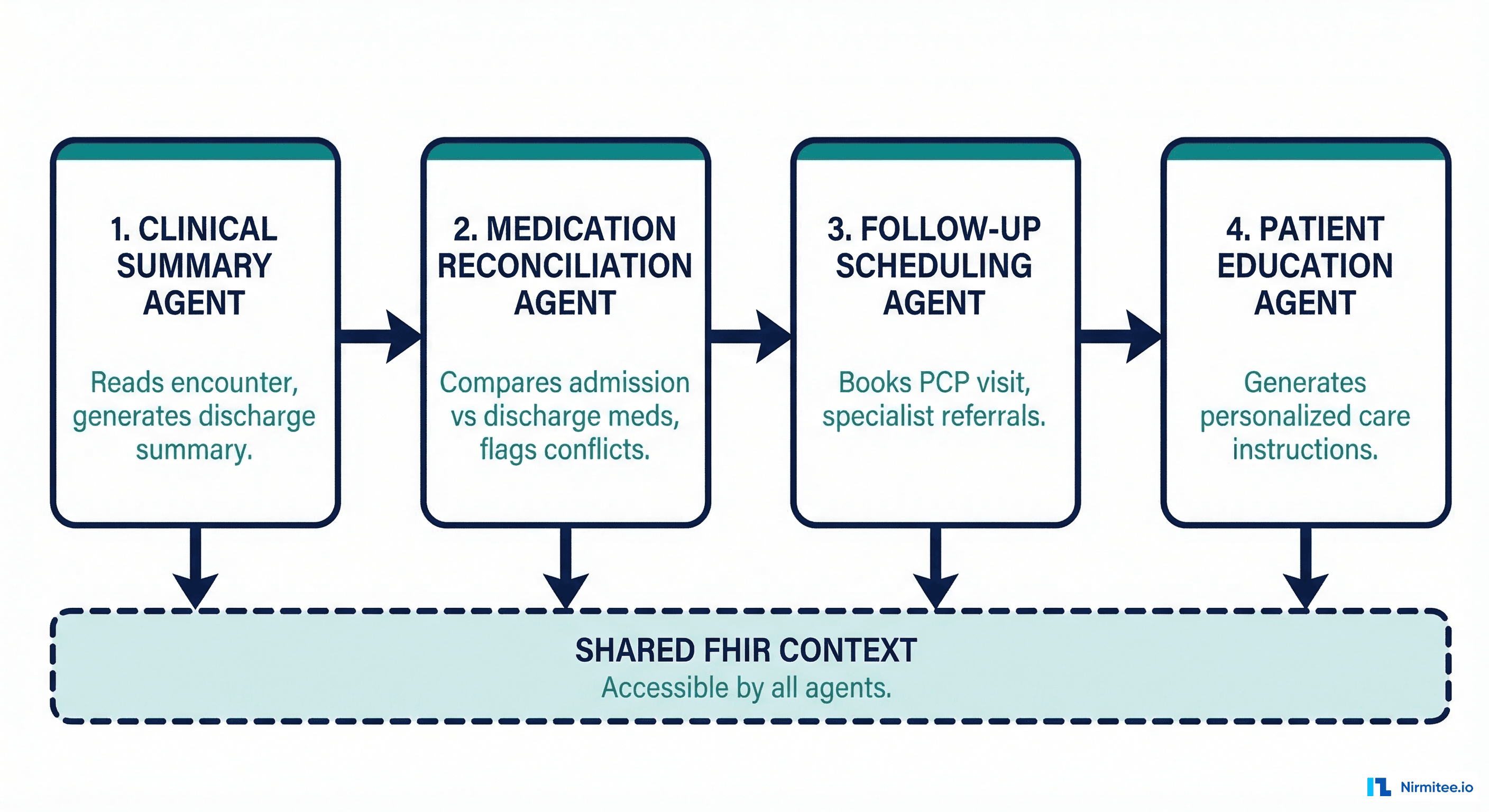

In a post-discharge pipeline, the flow is linear:
- Clinical Summary Agent reads FHIR Encounter, Condition, and Observation resources. It produces a DocumentReference containing the discharge summary.
- Medication Reconciliation Agent consumes that DocumentReference plus the MedicationRequest history. It outputs a reconciled medication list with flagged interactions.
- Follow-Up Scheduling Agent reads the reconciled list and care plan to determine required follow-ups, creating Appointment resources via the scheduling API.
- Patient Education Agent consumes all upstream outputs to generate personalized CarePlan resources with patient-facing instructions.
Use this pattern when each step genuinely depends on the previous output, order matters for correctness, and total latency is acceptable. It fits admission processing, clinical documentation improvement (CDI), and claims adjudication — workflows where data flows in one direction and each step enriches the record.
| Advantages | Disadvantages |
|---|---|
| Simple to implement and debug | Total latency = sum of all agents |
| Clear data lineage for audits | Single point of failure at each step |
| Easy to add/remove pipeline stages | Cannot parallelize independent work |
| Natural fit for ordered workflows | Upstream failures block all downstream |
Pattern 2: Parallel Fan-Out / Fan-In
When tasks are independent, running them sequentially wastes time. Fan-out/fan-in dispatches independent tasks simultaneously, then merges results. This is the pattern for speed when tasks have no mutual dependencies.
Architecture

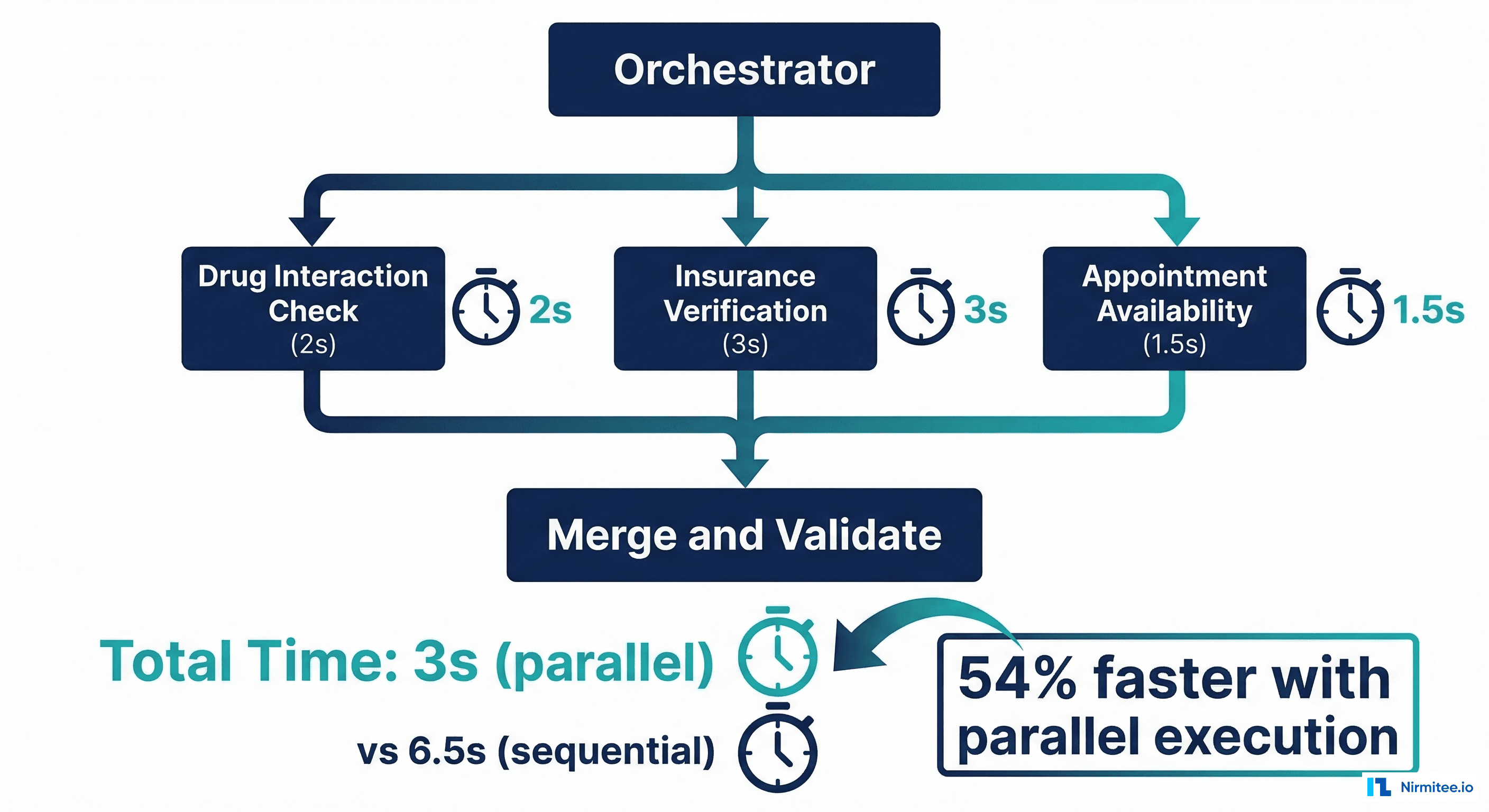

An orchestrator fans out to multiple agents running concurrently:
- Drug Interaction Check (2s) — Queries RxNorm and NLM DailyMed APIs against the patient's medication list.
- Insurance Verification (3s) — Calls the payer's X12 270/271 eligibility service to verify coverage for planned procedures.
- Appointment Availability (1.5s) — Searches the scheduling system for open slots matching provider preferences.
Sequentially, these tasks take 6.5 seconds. In parallel, the total time equals the slowest task: 3 seconds — a 54% reduction. Across thousands of encounters per day, this translates to hours of saved clinician wait time.
The Merge Challenge
The complexity is not parallelism — it is the merge. When results converge, you must handle conflicting information (insurance says procedure not covered, but drug check says current medication requires it), partial failures (one agent times out but others succeed), and result ordering. In healthcare, merge logic requires clinical rules: if the drug interaction check returns a critical alert, it should override the scheduling agent's proposed appointment with a pharmacist consultation first. Design your merge step as an explicit agent with its own clinical logic — not simple data concatenation.
| Advantages | Disadvantages |
|---|---|
| Dramatically faster execution | Merge logic can be complex |
| Independent failure domains | Harder to debug race conditions |
| Natural fit for independent checks | Resource-intensive (parallel compute) |
| Scales well with more agents | Requires careful timeout management |
Pattern 3: Supervisor / Worker
A hierarchical architecture where one orchestrator delegates to specialized workers. This is the most flexible pattern and the one Microsoft used for cancer care management, with a central coordinator managing patient flow while specialized agents handle labs, treatment planning, and communication autonomously.
Architecture

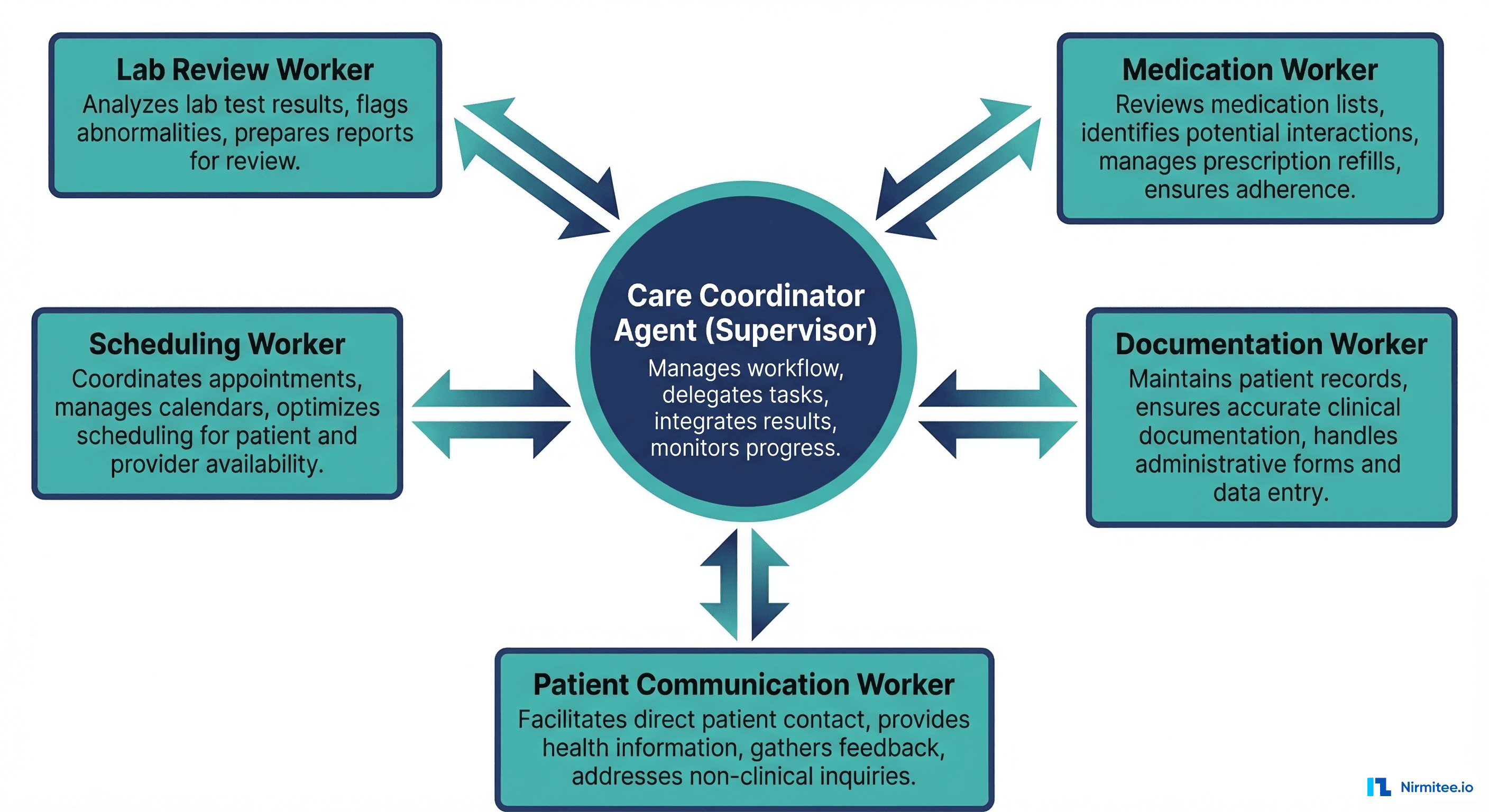

The Care Coordinator Agent (supervisor) receives a trigger like a patient discharge event, decomposes the workflow into subtasks, and delegates each to the appropriate worker:
- Lab Review Worker — Analyzes pending and recent lab results, flags critical values, suggests follow-up orders.
- Medication Worker — Performs reconciliation, interaction checks, and prior authorization initiation.
- Scheduling Worker — Handles appointment booking, referral processing, and calendar coordination across providers.
- Documentation Worker — Generates discharge summaries, transition-of-care documents, and clinical letters.
- Patient Communication Worker — Produces patient-facing materials, sends notifications, and manages portal messages.
The supervisor decides execution order dynamically. If labs show critical potassium, it prioritizes the medication worker (to adjust potassium-affecting drugs) before the scheduling worker (to add a next-day lab recheck). This dynamic routing is the key advantage over static pipelines.
The pattern excels at extensibility. Need a social determinants worker that checks transportation access and food security? Register it with the supervisor, define its input/output contract, and deploy. No existing workers need modification — ideal for organizations incrementally adopting AI capabilities.
| Advantages | Disadvantages |
|---|---|
| Dynamic task routing | Supervisor is a single point of failure |
| Easy to add new workers | Supervisor logic can become complex |
| Mix of sequential and parallel | Higher latency than pure parallel |
| Clean separation of concerns | Requires robust supervisor health checks |
Pattern 4: Conversation-Based (Debate)
The most sophisticated and most expensive pattern. Agents communicate through structured dialogue — proposing, challenging, and refining conclusions. This mimics clinical team dynamics where an attending proposes a diagnosis, a pharmacist challenges medication choices, and a safety officer validates against protocols.
Three agents participate in a reasoning loop: a Diagnosis Agent proposes differential diagnoses with confidence scores, an Evidence Agent reviews each candidate against published guidelines and facility case data, and a Safety Agent validates against drug allergies, contraindications, and institutional protocols. They iterate 2-4 rounds until convergence, mirroring the clinical decision support paradigm where multiple perspectives improve diagnostic accuracy.
| Advantages | Disadvantages |
|---|---|
| Better reasoning through debate | Expensive (multiple LLM calls per round) |
| Catches errors via adversarial review | Hard to control convergence |
| Mimics clinical team dynamics | Latency proportional to rounds |
| Built-in safety validation | Difficult to audit decision paths |

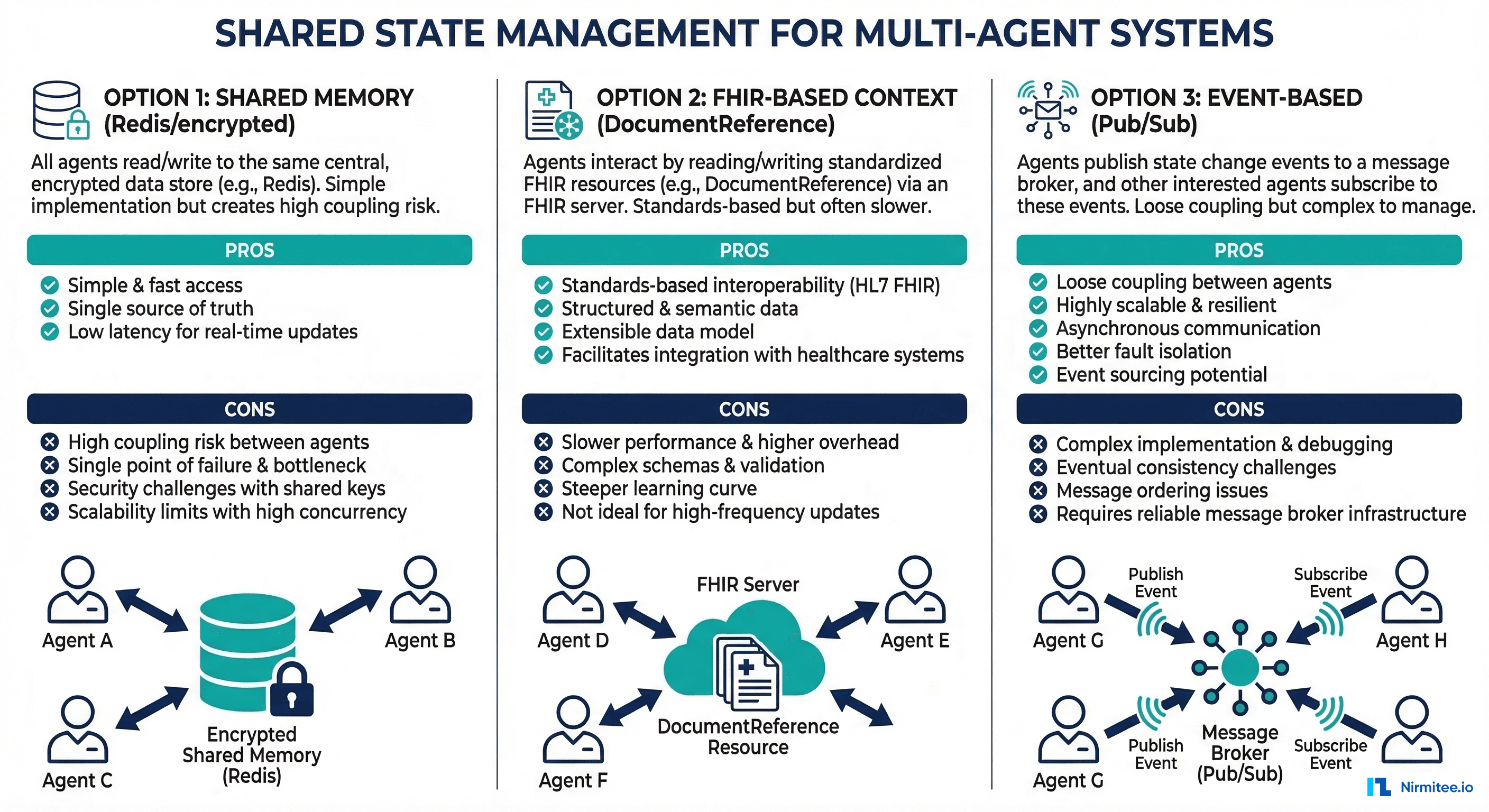

Shared State Management: Context Without Duplicating PHI
When multiple agents access patient data, shared state becomes a HIPAA-critical design decision. Each agent needs context to do its job, but you cannot simply copy PHI into every agent's local memory. The technology stack you choose has direct compliance implications.
Option 1: Shared Memory (Redis + AES-256)
All agents read/write a centralized Redis instance with AES-256 encryption at rest and TLS 1.3 in transit. Scoped key prefixes (agent:med-recon:patient:{id}) and TTLs ensure data purging after workflow completion. Pros: Sub-millisecond reads/writes, simple programming model. Cons: Tight coupling; all agents depend on Redis availability. Encryption key management adds operational complexity.
Option 2: FHIR-Based Context (Temporary DocumentReference)
Agents communicate through the FHIR server itself. Each writes output as a DocumentReference; downstream agents query for it. The FHIR server handles access control, versioning, and audit logging natively. Leverages existing integration infrastructure. Pros: Standards-based, built-in audit trail, works across organizations. Cons: Slower than in-memory stores; requires cleanup of temporary resources.
Option 3: Event-Based (Pub/Sub)
Agents publish events to topics (discharge.summary.completed); others subscribe. Loosest coupling — agents only know the event schema, not each other. Platforms like Apache Kafka or AWS EventBridge provide durable, ordered streams. Pros: Independent deployment, natural event log, horizontal scaling. Cons: Eventual consistency; event schema evolution requires careful versioning.

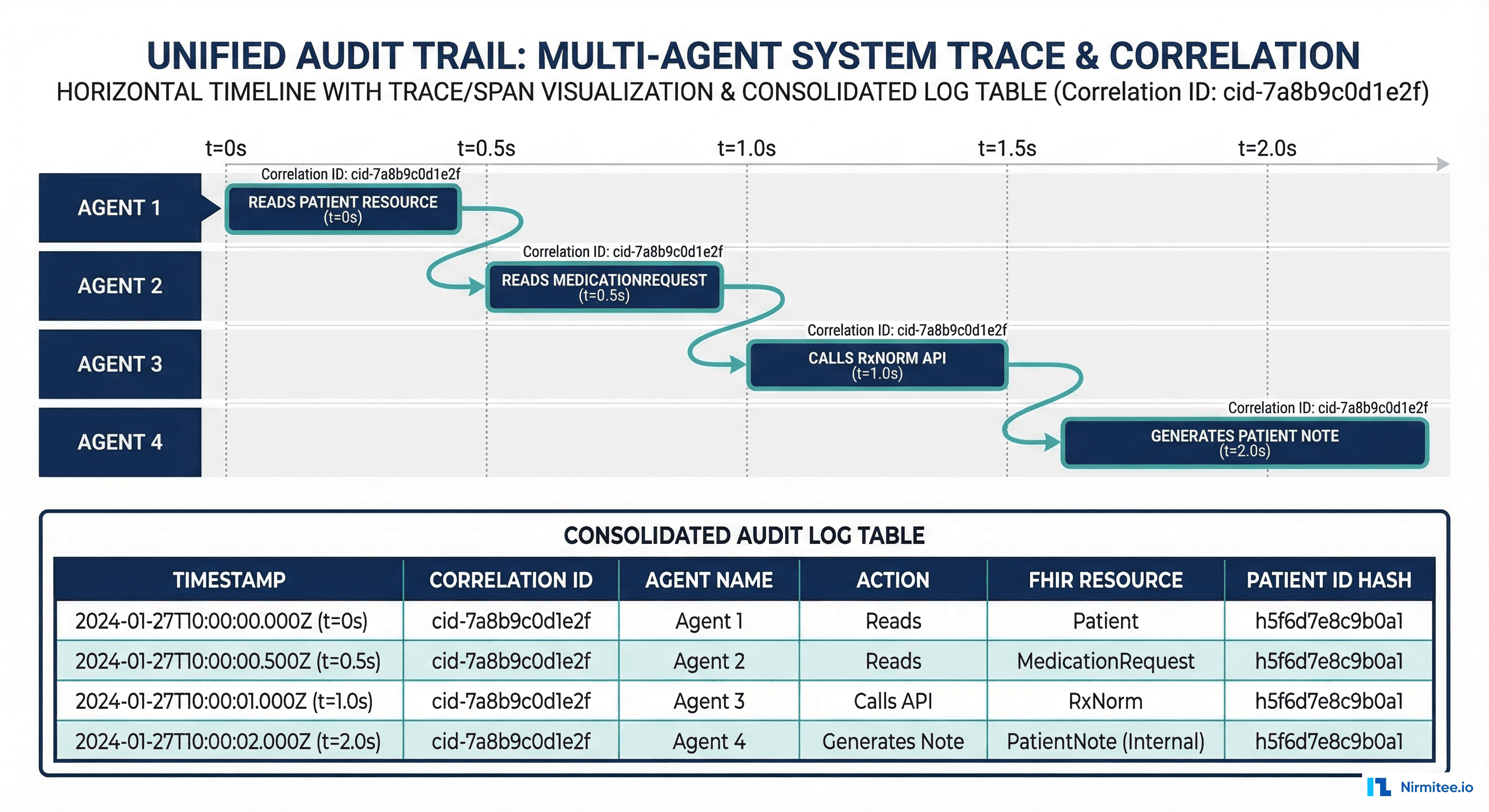

Unified Audit Trail Across Agents
When four agents access PHI in a single workflow, HIPAA's Security Rule mandates a unified audit trail. Auditors expect a single, correlated view across all system components — not four separate logs you have to manually cross-reference.
Every workflow gets a correlation ID (UUID v4) passed to every agent invocation, log entry, database query, and API call. When an auditor asks "who accessed this patient's data?", filter by correlation ID to reconstruct the entire workflow in milliseconds.
Use OpenTelemetry traces with child spans per agent. Each span carries attributes: agent.name, fhir.resource.type, fhir.resource.id, and patient.id.hash (never raw patient IDs). Ship to a centralized collector (Jaeger, Grafana Tempo) with 6-year retention for HIPAA.
{
"timestamp": "2026-03-16T10:23:45.123Z",
"correlation_id": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
"agent_name": "medication-reconciliation",
"action": "read",
"fhir_resource": "MedicationRequest/med-789",
"patient_id_hash": "sha256:9f86d08...",
"justification": "discharge_workflow",
"outcome": "success",
"data_elements_accessed": ["medication_name", "dosage", "prescriber"],
"trace_id": "abc123",
"span_id": "def456"

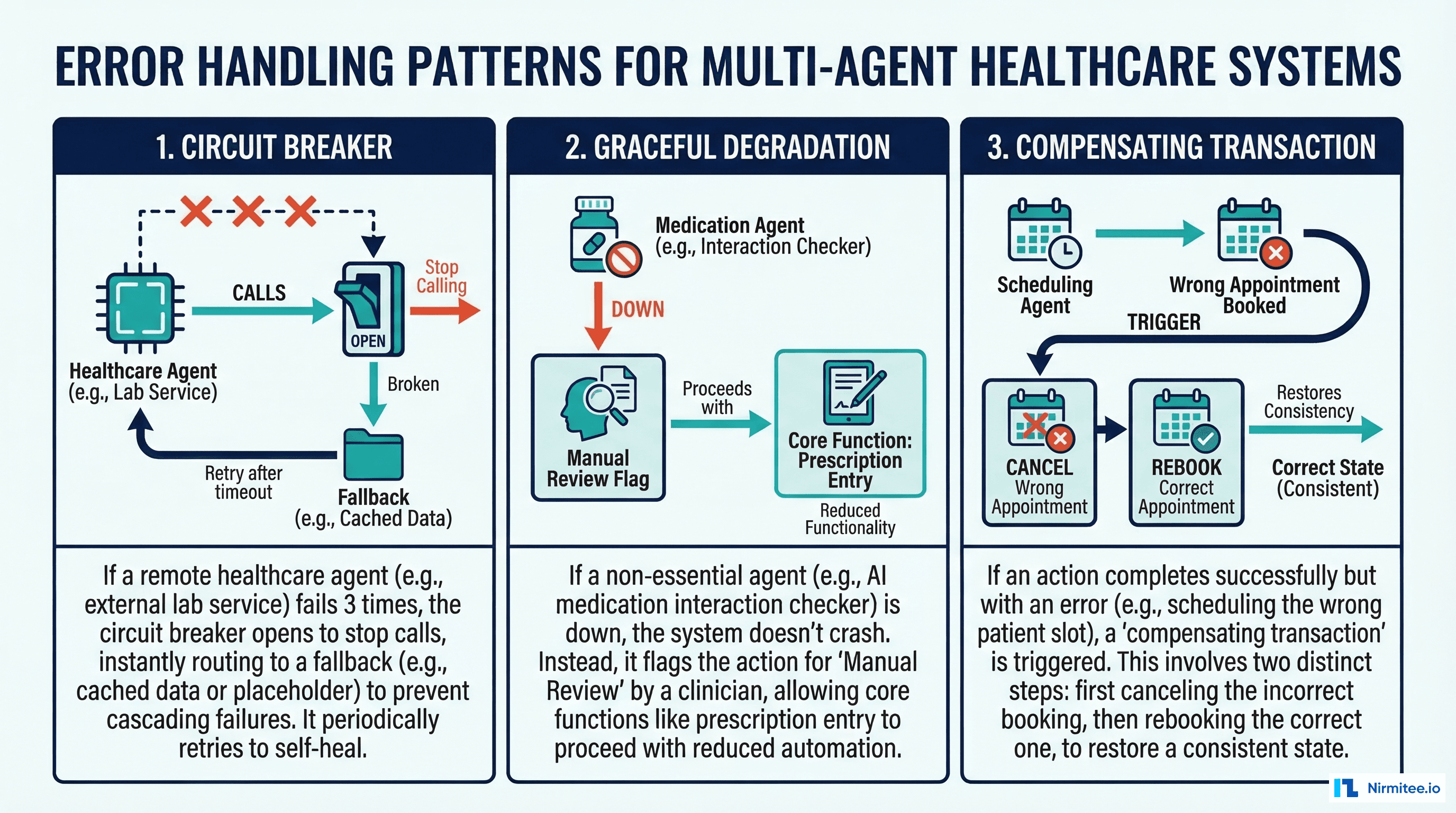

}Error Handling: When Agents Fail
In multi-agent systems, failure is inevitable. A medication API times out. The scheduling service returns a 503. The LLM hallucinates. Your orchestration must handle these gracefully — a failed workflow could mean a missed medication or a dropped follow-up appointment.
Circuit Breaker
If an agent fails three consecutive times, the circuit breaker trips: stop calling it and route to a fallback. If the drug interaction agent cannot reach the RxNorm API, the workflow flags the prescription for manual pharmacist review instead of blocking the entire discharge. After a configurable cooldown (e.g., 60 seconds), the circuit enters half-open state, allowing one test request to check recovery.
Graceful Degradation
Not every agent is equally critical. If the patient education agent is down, discharge proceeds — the patient gets standard (not personalized) instructions with a flag for nursing staff to provide verbal education. Design each agent with a degradation plan that answers: "What happens to the workflow if this agent is completely unavailable?"
Compensating Transactions
When an agent acts incorrectly, you need a compensating transaction to undo it. If scheduling books the wrong specialist, trigger cancel-and-rebook: update the FHIR Appointment status to cancelled and create a new Appointment resource — logging both the error and the correction in the audit trail.
Code Example: Supervisor/Worker Care Coordination
A working Python implementation demonstrating the supervisor/worker pattern with correlation IDs, circuit breakers, and graceful degradation:
import asyncio
import uuid
import logging
from dataclasses import dataclass, field
from enum import Enum
@dataclass
class WorkflowContext:
correlation_id: str = field(default_factory=lambda: str(uuid.uuid4()))
patient_id_hash: str = ""
results: dict = field(default_factory=dict)
class CircuitBreaker:
def __init__(self, threshold=3):
self.failures = 0
self.threshold = threshold
self.is_open = False
def record_failure(self):
self.failures += 1
if self.failures >= self.threshold:
self.is_open = True
def record_success(self):
self.failures = 0
self.is_open = False
class CareWorker:
def __init__(self, name: str, fallback_msg: str):
self.name = name
self.fallback_msg = fallback_msg
self.breaker = CircuitBreaker()
async def execute(self, ctx: WorkflowContext) -> dict:
raise NotImplementedError
async def safe_execute(self, ctx: WorkflowContext) -> dict:
if self.breaker.is_open:
return {"status": "degraded", "fallback": self.fallback_msg}
try:
result = await self.execute(ctx)
self.breaker.record_success()
return result
except Exception as e:
self.breaker.record_failure()
logging.error(f"[{ctx.correlation_id}] {self.name} failed: {e}")
return {"status": "error", "fallback": self.fallback_msg}
class LabReviewWorker(CareWorker):
def __init__(self):
super().__init__("lab-review", "Flag for manual lab review")
async def execute(self, ctx: WorkflowContext) -> dict:
await asyncio.sleep(0.5) # Simulated FHIR query
return {"status": "complete", "critical_values": [],
"pending_orders": ["CBC", "BMP"]}
class MedicationWorker(CareWorker):
def __init__(self):
super().__init__("medication", "Flag for pharmacist review")
async def execute(self, ctx: WorkflowContext) -> dict:
await asyncio.sleep(1.0) # RxNorm API + reconciliation
return {"status": "complete", "interactions_found": 0,
"reconciled_meds": 8}
class SchedulingWorker(CareWorker):
def __init__(self):
super().__init__("scheduling", "Create manual task for staff")
async def execute(self, ctx: WorkflowContext) -> dict:
await asyncio.sleep(0.8)
return {"status": "complete", "appointments_booked": [
{"type": "PCP follow-up", "within_days": 7},
{"type": "Cardiology referral", "within_days": 14}]}
class CareCoordinatorSupervisor:
def __init__(self):
self.workers = {
"lab_review": LabReviewWorker(),
"medication": MedicationWorker(),
"scheduling": SchedulingWorker(),
}
async def orchestrate(self, patient_id_hash: str):
ctx = WorkflowContext(patient_id_hash=patient_id_hash)
logging.info(f"[{ctx.correlation_id}] Starting coordination")
# Phase 1: Parallel — lab + medication (independent)
lab, med = await asyncio.gather(
self.workers["lab_review"].safe_execute(ctx),
self.workers["medication"].safe_execute(ctx))
ctx.results["lab_review"] = lab
ctx.results["medication"] = med
# Phase 2: Sequential — scheduling depends on findings
if lab.get("critical_values"):
logging.info(f"[{ctx.correlation_id}] Critical labs found")
ctx.results["scheduling"] = await self.workers["scheduling"].safe_execute(ctx)
logging.info(f"[{ctx.correlation_id}] Workflow complete")
return ctx
async def main():
logging.basicConfig(level=logging.INFO, format="%(message)s")
supervisor = CareCoordinatorSupervisor()
result = await supervisor.orchestrate("sha256:9f86d081884c...")
for worker, output in result.results.items():
print(f" {worker}: {output['status']}")
if __name__ == "__main__":
asyncio.run(main())This implementation demonstrates production-ready patterns: the supervisor dynamically routes work (parallel for independent tasks, sequential when dependencies exist), circuit breakers prevent cascading failures, and every log entry carries the correlation ID for audit trail reconstruction.
Choosing the Right Pattern
| Pattern | Best For | Avoid When |
|---|---|---|
| Sequential Pipeline | Ordered workflows (CDI, claims) | Tasks are independent; latency critical |
| Parallel Fan-Out/Fan-In | Independent checks (eligibility, interactions) | Tasks have complex dependencies |
| Supervisor/Worker | Dynamic, varying task compositions | Simple, fixed workflows (overengineered) |
| Conversation-Based | Clinical reasoning, multiple perspectives | High-throughput; cost-sensitive |
Production systems often combine patterns. A supervisor might fan out independent tasks while running a sequential pipeline for dependent ones — the hybrid approach that defines scalable health applications. Start simple, measure bottlenecks, and evolve toward the pattern matching your workflow's actual execution graph.
Building production-grade healthcare AI agents requires careful architecture. Our Agentic AI for Healthcare team ships agents that meet clinical and compliance standards. We also offer specialized Healthcare Software Product Development services. Talk to our team to get started.
Frequently Asked QuestionsHow do multi-agent systems handle HIPAA compliance differently?
They require agent-level access controls (each agent accesses only the PHI it needs), correlation IDs linking all activities to a single audit trail, encrypted inter-agent communication, and PHI purging after workflow completion. The audit surface is larger, but access logging granularity is actually better — you can prove exactly which agent accessed which data element and why.
What is the latency impact of multi-agent orchestration?
It depends on the pattern. Sequential pipelines add latency equal to the sum of all agents. Parallel fan-out reduces latency to the slowest agent. Supervisor/worker falls between these extremes. For time-critical workflows like ED triage, prefer fan-out with aggressive timeouts. For background workflows like post-discharge documentation, sequential pipelines are acceptable.
Can I use open-source frameworks like LangGraph?
Frameworks like LangGraph and CrewAI provide orchestration primitives, but healthcare deployments require additional layers: HIPAA-compliant infrastructure, encrypted state management, audit logging, and human-in-the-loop safety checks. Use the frameworks for orchestration logic, but build the compliance layer yourself or work with a team experienced in healthcare AI implementation.
How many agents are too many?
Complexity grows non-linearly with agent count. Each new agent adds communication overhead, failure modes, and audit surface. A practical guideline: if a responsibility can be handled by extending an existing agent without violating single responsibility, do not create a new one. Most healthcare workflows work well with 3-7 agents.
